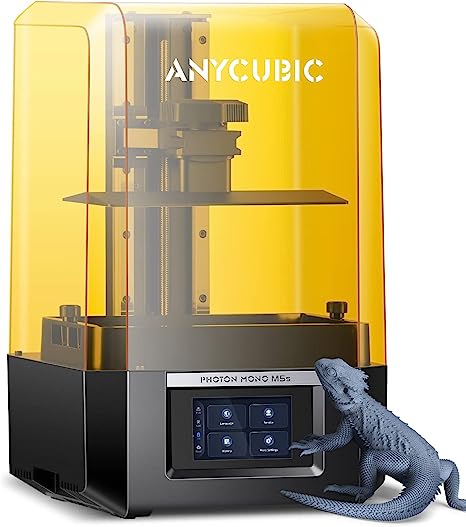

Anycubic Photon Mono M5S 3D Printer

Brand: Anycubic

SKU: 3IDEA-ANC-Photon Mono M5S-LCD

Rs. 47,999

(0 Reviews)

10.1" Monochrome LCD 11520*5120 px 12K Resolution
Horizontal resolution: 19 x 24 Î¼m
Auto Levelling
Dual Linear Rail Lead Screw Z axis
Laser Engraved Build Plate
Screen Protector

Add to Cart

Detail

Printing Technology :	LCD-based SLA 3D Printer
Printing Dimensions :	7.87x8.58x4.84in./ 200x218x123mm(HWD)
Printing Volume :	5.4L
Light Source :	LED matrix UV light source.
Resin Vat :	Unibody design with scale lines
Build Platform :	Laser engraving aluminum alloy
Removable Cover :	Effectively blocks UV radiation
Power Supply :	100W rated power
Machine Leveling :	Leveling-free
Z Axis :	Double liners with 10 μm
Control Panel :	4.3 TFT touch-control
Data Input :	USB Type-A 2.0, WIFI
Machine Weight :	8.9kg
Machine Dimensions :	460270290mm(HWD)

12K Exquisite Details: The Photon Mono M5s is the 12K resolution of its 10.1-inch screen, achieving a 19-micron X accuracy, with printing details as precise as a hair thickness.

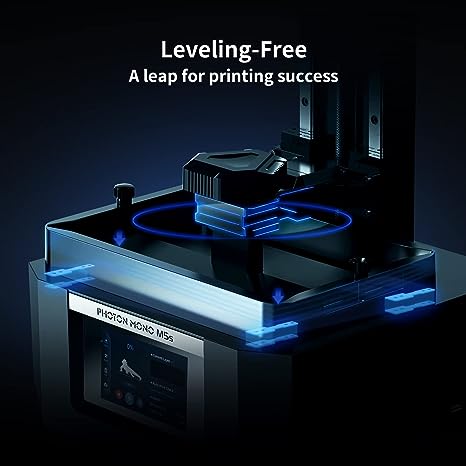

Leveling-Free A leap for printing success: A mechanical sensor on the cantilever arm detects the fit between the printing platform and the floating leveling module and automatically adjusts it based on the detection results. This eliminates the risk of leveling failure and improves the printing success rate.
3X Faster : Photon Mono M5s is able to reach a 105mmh average printing speed. It uses a high-speed release film to lower the release force, ensuring a high printing success rate while reducing the release height and increasing the lifting speed.

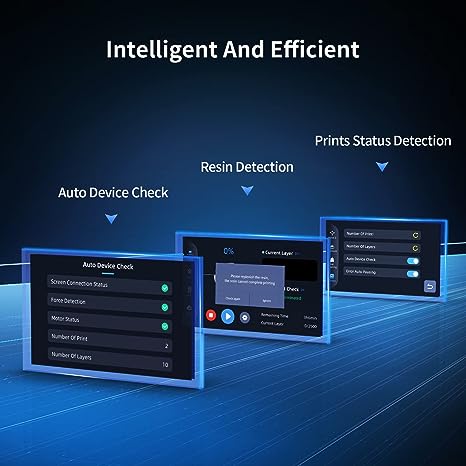

Auto Device Check: Through multiple tests on the connectivity of the exposure screen, mechanical detection module, and motor operation status, it quickly detects and troubleshoots hardware problems, ensuring smooth and non-destructive connections to help achieve printing success.
Resin Detection: To reduce printing failures caused by insufficient resin, the resin detection mode is preset to detect whether the amount of resin in the vat meets the printing requirements before printing—Minimizes print failures due to resin shortages.
Prints Status Detection: The prints status detection function will provide reminders for common failures like bottoming-out printing, significantly reducing waste of resin and time. It also can smartly analyze the causes of failures and provide effective suggestions to ensure printing efficiency.
Intelligent Mode: In the new version of slicing software Anycubic Photon Workshop 3.1, the Intelligent Mode option can intelligently match exposure parameters according to model details and size, reducing the risk of printing failure caused by improper parameter settings.
New Support Algorithm: The new support algorithm further improves the printing stability and success rate reduces damage to the model surface, and makes it easy to remove supports and bottom valves. Comprehensively improve the speed of punching and slicing, making slicing easier to use.
