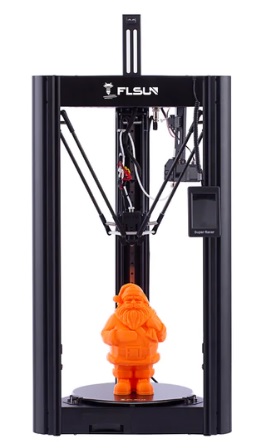

Flsun Super Racer (SR) 3D Printer
Rs. 43,191
- • Fast printing

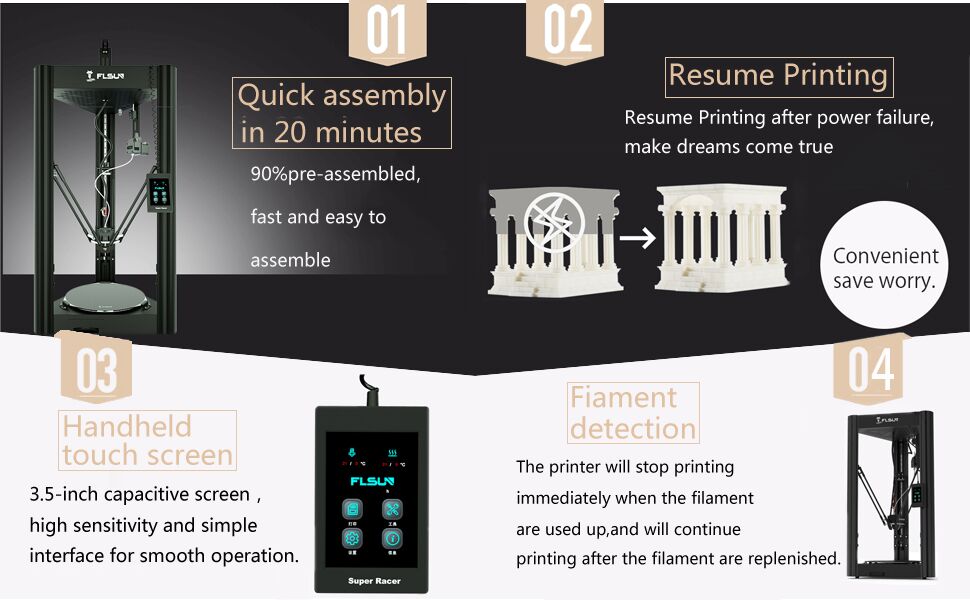

- • Power loss recovery
- • Auto-leveling
- • Delta Structure, More Stable And Durable
- • Handheld Touch Screen, Easy To Move
- • Dual Gear BMG Extruder
DOWNLOAD BROCHURE
Detail
| Printing Technology : | FDM |

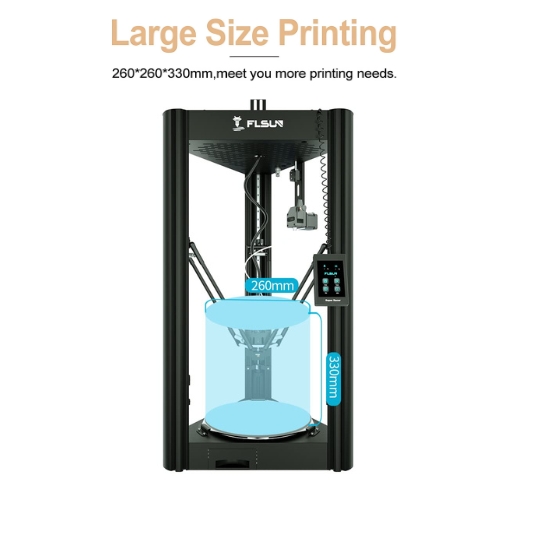

| Build Volume : | 260 260*330mm |

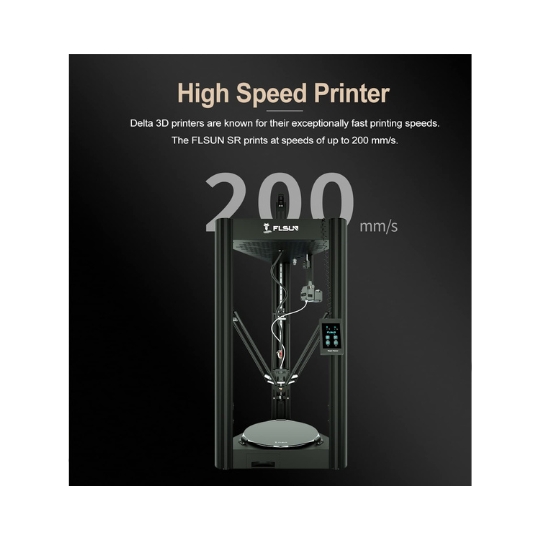

| Printing Speed : | 150mm/s-200mm/s |
| Printing Accuracy : | ±0.1mm |
| Layer Height : | 0.05-0.4mm. |
| Extruder : | Remote/Bowden Drive |
| Filament Diameter : | 1.75mm |
| Firmware : | Open source Marlin |
| Nozzle Diameter : | 0.4mm |
| Nozzle Temperature : | s260°C |
| Heatbed Temperature : | s100 |
| Leveling Mode : | Auto-leveling |
| File Transfer : | SD Card/USB |
| Power Loss Recovery : | Yes |
| Filament Runout Sensor : | Yes |
| Rated Voltage : | 115-230V |
| Rated Power : | 300W |
| Supported Filaments : | PLA/ABS/PETG |
| Slicing Software : | Cura/Repetier/etc. |
| File Formats for Slicing : | Gcode |
| Product Dimensions : | 440"390"960mm |
| Net Weight : | 13.6kg |
| Gross Weight : | 16kg |
- Removable bed: The diameter of the hotbed is 270mm, the printable range is 260mm, and the uniform lattice coating is attached to the surface to make the printed model easier to paste on the hotbed. The lattice glass and aluminum plate are fixed separately, which is convenient for cleaning, maintenance, and disassembly. The hot bed can heated up to 100C and it has a good adhesion effect whether it is printing PLA or ABS. When the hot bed is cooled, the adhesion on the surface of the hot bed will be greatly weakened, so that the model can be easily removed.
- Volcano Hot End: Volcano hot end with high melting efficiency. Two turbo fans and one cooling fan are installed on the hot end. The powerful cooling system can avoid nozzle clogging.
- BMG Extruder: Dual driver BMG extruder, better support for flexible filament and PLA, etc
- Liner Rail Guide: Precise liner guide with 10MM belt, strong rigidity, and high precision with 48mm larger torque, high speed, low noise, high precision stepper motor, it not only guarantees powerful movement but also guarantees high-speed printing accuracy.
- Parallel Arm: 3K high-strength carbon fiber parallel Arm, double spring structure, can still ensure accuracy and stability during high-speed movement. Modular design, no tools are required for assembly and disassembly.
- TMC2209: SR uses 4TMC2209 motor drive blocks. TMC2209 built-in MOS supports a maximum current of 2.8A and good heat dissipation. Excellent performance in mute, anti-shake, sensorless torque detection, current dynamic adjustment, etc.
- Auto Leveling: SR uses FLSUN's self-developed Auto-Leveling algorithm to compensate for mechanical error through multiple points. The entire leveling process can be completed in three simple steps, and the leveling accuracy is 0.05mm
- Firmware: Based on Marlin 2.0.6, self-developed open source firmware supports the functions of power interruption resume and filament interruption detection, 3.5-inch smart capacitive touch screen, newly designed UI interface, optimized operation logic and user habits, support 8 display language switching, and has one-key restore to factory settings function.
- Slice Software: CURA 4.4 slicing software is included in the SD card. The slicing software includes two modes: basic mode and expert mode, which can meet the needs of beginner users and professional users with different precision and difficulty printing settings Cura4.4 supports USB connection, so you can connect your laptop via USB and send it directly to the printer to start printing after slicing.
- It also includes PLA filament
Abhishek Gyani 2022-09-30 17:32:32
Amazing printer. 3idea is a very good company which provides 3d printers at affordable prices and also has very good after sales support. The flsun super racer is a fast printer printing at default 150mm/s speed which can be increased to 200-250mm/s. The quality is amazing and prints are completed sooner than other printers. Its best to buy a good pla filament so that they dont warp. Will definitely suggest 3idea to friends and family.
