Anycubic Photon Mono X 6K 3D Printer
Rs. 51,677
- 9.25’’ Monochrome LCD, 5760x3600px 6K Resolution
- Horizontal resolution: 34 μm
- Print Volume : 122x 197 x 245mm, 5.89L
- Fast Printing- upto 80mm/hr
This Product is Out Of Stock......
DOWNLOAD BROCHURE
Detail
| Printing volume : | 199.1 oz. / 1.6 gal. / 5.9 L |
| Exposure screen : | 9.25’’ monochrome |
| Screen area : | 38.22 in² / 248.75 cm² |
| Light transmittance : | 6% |
| Contrast ratio : | 350 |
| Light source : | Parallel matrix (LED x 40) |
| Power density : | 5,000 - 6,500 μw/cm² / 34,150 - 44,395 lux |
| Printing accuracy : | 5,760 x 3,600 px (6K) |
| Horizontal resolution : | 34 μm |
| Printing speed : | ≤ 8 cm/hr. / 3.15 in./hr. |
| Control panel : | 3.5’’ TFT touch-control |
| Data input : | USB-A 2.0 / LAN |
| Power supply : | 120W |
| Machine dimensions : | 18.7 x 11.4 x 10.6 in. / 47.5 x 29 x 27 cm (HWD) |
| Net Weight : | 11 kg |
| Gross Weight : | 13kg |

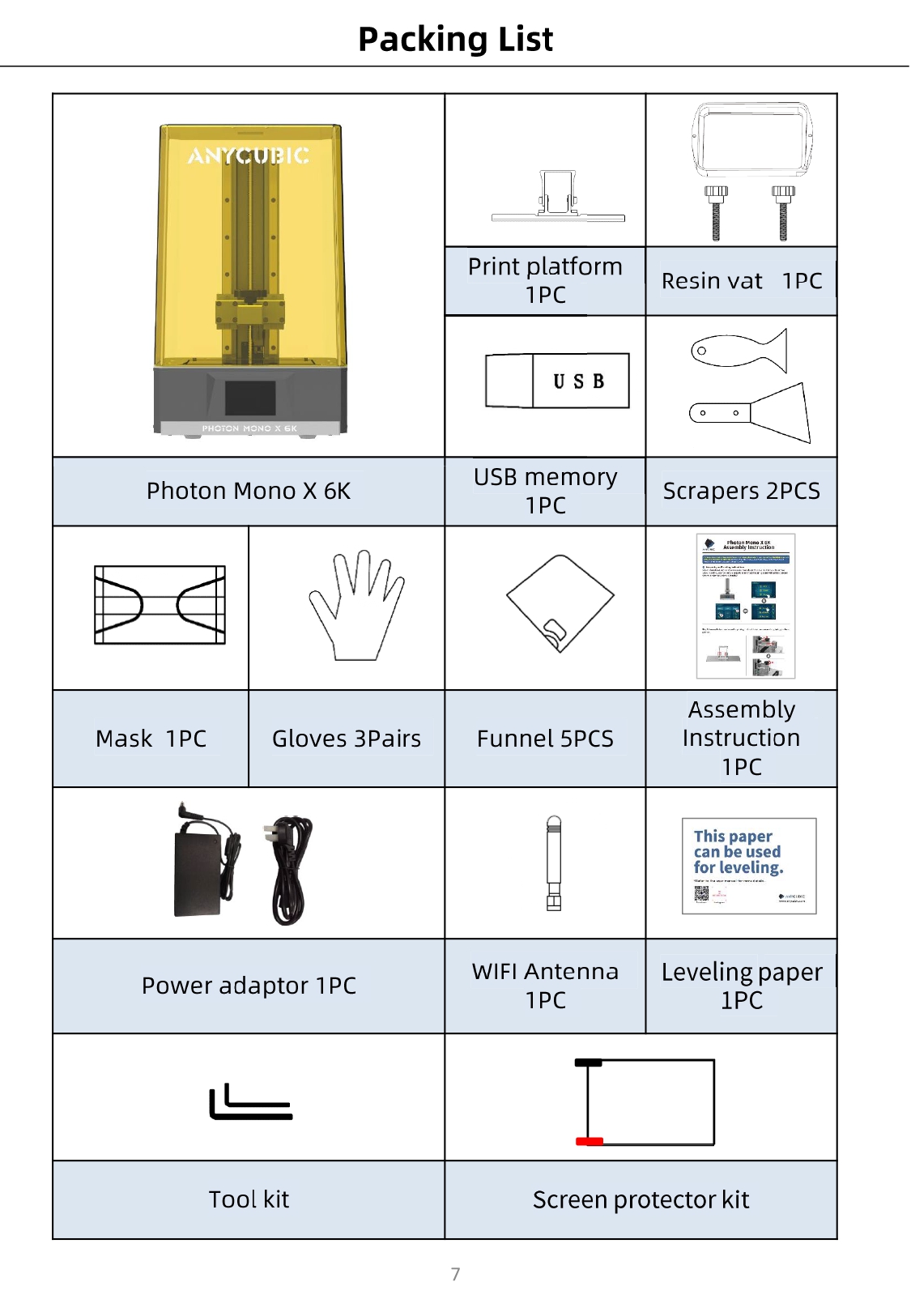

| Accessories : | User Manual, Funnel, Tool set, SD-Card Reader, Scraper, Resin Vat, Platform, Power Cord, LCD Screen Protector, Mask, Glove. |

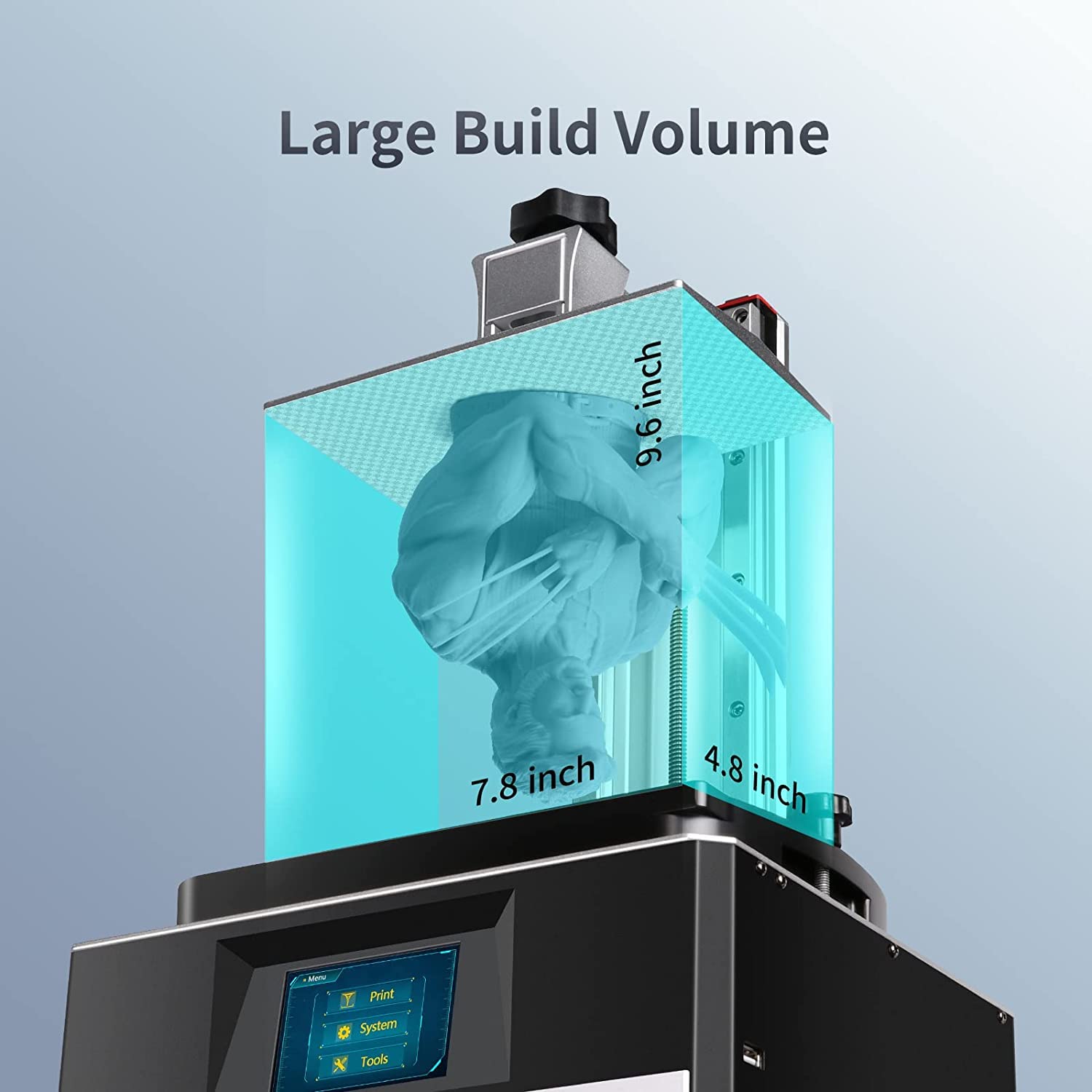

- For Freedom to Make: Anycubic Photon Mono X 6K can print up to 9.6 x 7.8 x 4.8 in. / 24.5 x 19.7 x 12.2 cm (HWD) at a time, similar dimensions to a super midi rugby ball. 199.1 oz. / 1.6 gal. / 5.9 L total build volume leaves more space and freedom for you to make any shapes of cubic.
- 6K Vivid Details: With 5,760 x 3,600 px resolution, Anycubic Photon Mono X 6K's screen has a total number of over 20 million pixels, which is 125% higher than Anycubic Photon Mono X and its rivals' 4K resolution screen. High resolution brings vivid details to your 3D models.
- Sharp Edges and Corners: Adopting an industry-leading screen with 350:1 contrast ratio, 75% higher than Anycubic Photon X and its rivals' 200:1, Anycubic Photon Mono X 6K provides your 3D models with extremely sharp and clear edges and corners.
- Protect What Matters: In order to better protect its premium screen, Anycubic Photon Mono X 6K added a dedicated and replaceable anti-scratch film above the screen itself, making that expensive screen much more durable than its rivals.

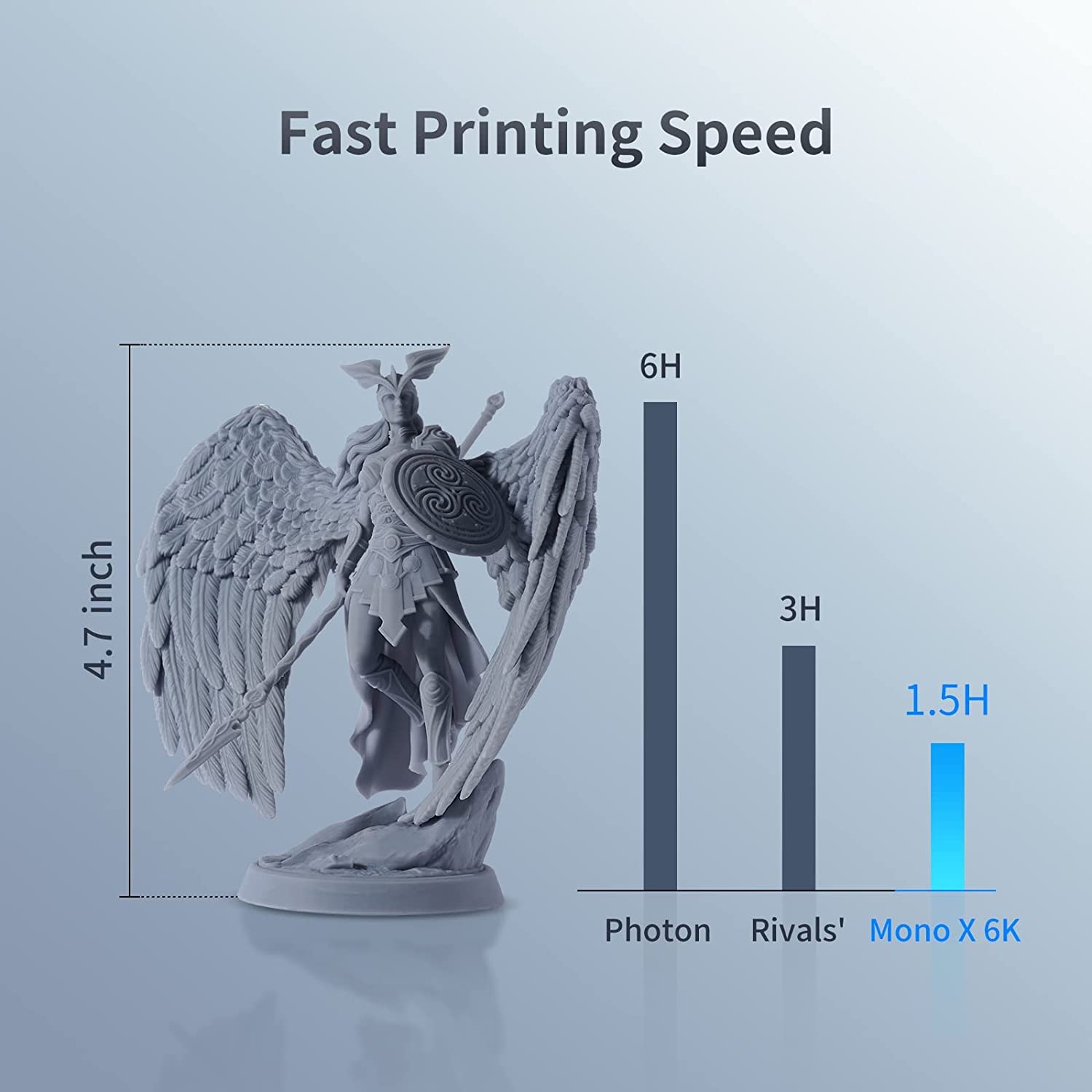

- Print, One Step Ahead: With an impressive print speed at ≤ 8 cm/hr. / 3.15 in./hr., Photon Mono X can print a typical 12cm / 4.7in. model in 1.5 hours, which takes 4.5 hours less than Photon's 6 hours, and 1.5 hours less than its rivals' 3 hours. Fast printing saves your time wasted on waiting.
- Powerful Light Matrix: 40 bright LED lights are placed into a matrix to make up a powerful and parallel light source, so that Anycubic Photon Mono X 6K can provide ≥90% light uniformity and ≤ 44,395 lux power density to each layer, making fast printing possible.
- High Light Transmittance: Anycubic Photon Mono X 6K is equipped with an industry leading screen with 6% light transmittance, which is 200% higher than Anycubic Photon Mono X and its rivals' 2%. High light transmittance makes quick forming possible.
- Universal Compatibility: With 30%-100% light power regulation, Anycubic Photon Mono X 6K supports not only ordinary 405nm UV resins, but also special resins. In addition, adjusting the light power appropriately can extend the lifespan of both the screen and light significantly.
- 9.25'' Large Screen: Anycubic Photon Mono X 6K is equipped with a large 9.25'' screen, which is 185% larger than Anycubic Photon's 5.5'' screen, 138% larger than a common 6'' screen, and 8% larger than Photon Mono X and its rivals' 8.9'' in screen area.
