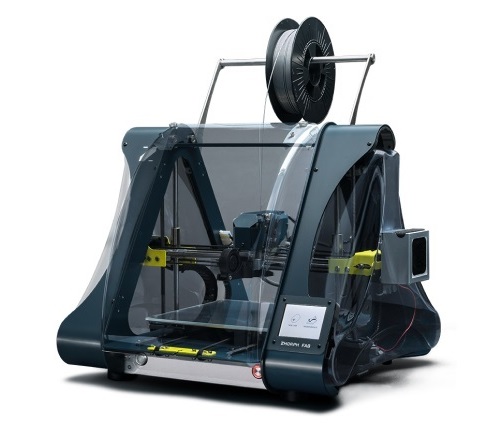

Zmorph Fab Advance
Taxes Included | Free Shipping
Three tools in one device for learning and prototyping. This machine can do it all. Switch the tool heads to use a 3D printer, CNC milling machine. With stellar built quality, user friendly interface, and industry standard electronics, Zmorph Fab is the most versatile and reliable 2-in-1 3D printer on the market. Turn your desk into a workshop - I) 3 tools in 1 machine - 3D printer, CNC unit- that fits on your desk. II) Quick and easy changing between tools - no more than 60 seconds. III) Create with materials inaccessible to single-purpose 3D printers. Click to work - out of the box ready. I) Easy to get started with, no tinkering needed. Place Zmorph Fab on the desk and II) start working. Smart features like automatic tool detection and auto calibration do the job, while you can focus on ideas. Designed for Reliability A)Hassle-free 3D printing II) Works with almost every plastic filament available on the market. III) Autocalibration makes 3D printing easy and fast, even for beginners. IV) Multi-material capabilities let you 3D print with water soluble support. B) Stellar build quality I) Heavy duty aluminum plates provide amazing rigidity, and keep electronics safe from dust and leftovers from CNC machining. II) Sturdy construction designed to deliver both 3D printing and withstand CNC operations. III) Reinforced Cartesian XZ-head motion system doubled up with dual glass-fiber reinforced belts. C) All-in-One Software I) One software for 3D printing, CNC machining II) Ready for multi-material 3D printing. III) Slick and easy user interface. C) Air Filters I) Combination of HEPA/Carbon filters that removes particles and fumes from 3D printing, II) Zmorph Fab notifies you when to change the filter.
This Product is Out Of Stock......
- 1. CNC Environment:Zmorph Fab is equipped with a professional CNC worktable with a simple solution for materials mounting. Safely work with various shapes and sizes of different materials. Zmorph’s Software now features CAM-standard workflow for CNC procedures with STEP operations, ability to change the tool within one G-code, and path visualisation.
- 2. Seamless UI :Accessible and intuitive user interface is designed for both professionals and first-timers. Effortlessly maneuver through the menu.
- 3. Voxelizer:The all-in-one software for 3D printing, CNC milling. All Zmorph toolheads supported. Try the materials presets or work on your own. Voxelizer has an optimized workflow for Zmorph 3D printers ensuring the best and fastest results.
- 4. SMART Toolheads : Changing workflows in Zmorph Fab is fast and easy with the automatic toolhead detection. Switching tools takes just a few easy steps and no more than a minute. You can work right away without extra tinkering.
- 5. Quiet Work: You can comfortably work next to the machine as Zmorph Fab generates almost no noise. Behind the quiet work stands the design of the 3D printer enhanced by high-quality electronics and carefully programmed drivers.
- 6. Electronics: Zmorph Fab is a desktop 2-in-1 3D printer, but has a heart of an industry-grade machine. The electronics provide reliability and repeatability. No need to worry about the outcome.
- What’s in the box?
- Zmorph Fab Advanced set
- ● Zmorph Fab
- ● Single Extruder Toolhead 1.75
- ● CNC Milling Toolhead
- ● Dual Extruder Toolhead
- ● Thick Paste Extruder Toolhead
- ● Heated worktable
- ● CNC Worktable
- ● Spool holder
- ● 0.5 kg PLA
- ● Cleaning needle
- ● 0.4 nozzle
- ● PrintaStick adhesive
- ● Cooling fan
- ● Adjustable wrench
- ● 1 x plywood
- ● CNC cutter
- ● 3x CNC clamps
- ● Adjustable wrench
- ● 8 mm spanner
- ● 13 mm spanner
- ● Cleaning needle
- ● Spatula
- ● 4 x Allen key
- ● SD card
- ● Power cord
- ● HEPA filter system
| : | |
| 3D PRINTING : | |
| 3D printing technology : | FFF (Fused Filament Fabrication) |
| Toolheads : | Single Extruder Toolhead 1.75, Dual Extruder Toolhead |
| Layer resolution : | 0.05 - 0.4 [mm] * |
| Maximum printing temperature : | 250 [°C] |
| Work Area : | 235 x 250 x 165 [mm] |
| Maximum bed temperature : | 115 [°C] |
| Minimum wall thickness : | 0.4 [mm] * |
| Dimensional accuracy : | +/- 0.2 [mm] |
| Work area leveling method : | Manual. |
| Material container : | Spool, reel |
| Material diameter : | 1.75, 3.00 [mm] |
| Nozzle diameter : | 0.3, 0.4, 0.6 [mm] |
| Support structures : | Mechanically and chemically removed - printed with the same material as the model. |
| Connectivity : | USB, Ethernet, SD card |
| Available Materials : | ABS, Nylon, HDPE, PTFE, PC, PP, POM, PMMA, PVC, HIPS, LDPE, PET, Carbon, CCL FR4, Dibond, TCF, Wood, Wood-like, Aluminum, Brass, Copper, Cardboard, Wax, Modeling board, Styrodur Carbon, CCL FR4, Dibond, TCF, Wood, Wood-like, Aluminum, Brass, Copper, Cardboard, Wax, Modeling board, Styrodur. |
| Work speed : | 0.1 ~ 20 [mm/s] |
| Travel speed : | 120 [mm/s] |
| CNC MILLING : | _ |
| Tool head : | CNC spindle |
| Spindle max power : | 300 [W] |
| Noise : | 70 [dB] |
| Tool holding : | ER-11 collet. |
| WEIGHT AND PHYSICAL DIMENSIONS : | _ |
| Printer without a spool holder : | 520 x 500 x 450 [mm] |
| Printer with a spool holder : | 520 x 500 x 570 [mm] |
| Printer with a HEPA filter : | 570 x 500 x 570 [mm] |
| Dimensions of the transport box : | 600 x 600 x 570 [mm] |
| Full set weight : | 28.70 [kg] |
| Printer weight : | 14.45 [kg] |
| Single Extruder Toolhead 1.75 weight : | 0.70 [kg] |
| Dual Extruder Toolhead : | 1.00 [kg] |
| CNC Milling Toolhead : | 0.90 [kg] |
| Thick Paste Extruder Toolhead : | 0.60 [kg]. |
| ELECTRICAL PARAMETERS : | _ |
| AC Input : | 100 [VAC] ~ 4 [A] 50/60 [Hz] / 240 [VAC] ~ 2 [A] 50/60 [Hz] |
| Maximum Power Consumption : | 350 [W] |
| Power Consumption with single-head extruder : | 220 [W] |
| Power Consumption with Dual-head extruder : | 230 [W] |
| Power Consumption with CNC Toolhead : | 330 [W]. |
| SOFTWARE : | _ |
| Software Bundle : | Voxelizer |
| Supported File Types : | .stl, .obj, .step, .dxf, .png, .bmp |
| Supported Operating Systems : | Windows 7/10 (64 bit) or higher macOS 10.13 or higher. |
| FILTRATION PARAMETERS : | _ |
| Filter type : | HEPA/Carbon |
| Ventilation power : | 1.54 [W] |
| Filter dimensions : | 80 x 80 x 25 [mm] |
| Filter system dimensions : | 85 x 85 x 50 [mm] |
| TEMPERATURE PARAMETERS : | _ |
| Ambient Operation Temperature : | 15 ~ 30 [°C] |
| Storage Temperature : | -10 ~ 40 [°C]. |
