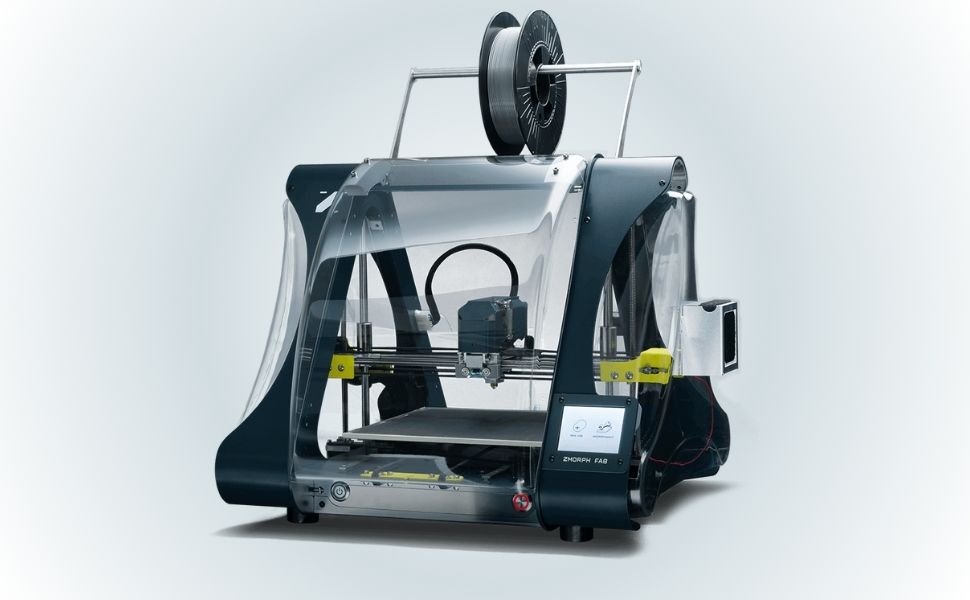

Zmorph Fab Advance 2-in-1 3D Printer
Rs. 299,999
- Zmorph Fab Advanced set -
- 1. Dual Extruder Toolhead 1.75mm
- 2. CNC Milling Toolhead
- 3. Thick Paste Extruder Toolhead
- 3D Printing - Work Area: 235 x 250 x 165mm; Materials: PLA, ABS, PET, Nylon, PVA, HIPS, ASA, TPE, PP, PC, PMMA, PC/ABS
- CNC Milling - Work Area: 235 x 250 x 85 mm; Materials: ABS, Nylon, HDPE, PTFE, PC, PP, POM, PMMA, PVC, HIPS, LDPE, PET, Carbon, CCL FR4, Dibond, TCF, Wood, Wood-like, Aluminum, Brass, Copper, Cardboard, Wax, Modeling board, Styrodur
Detail

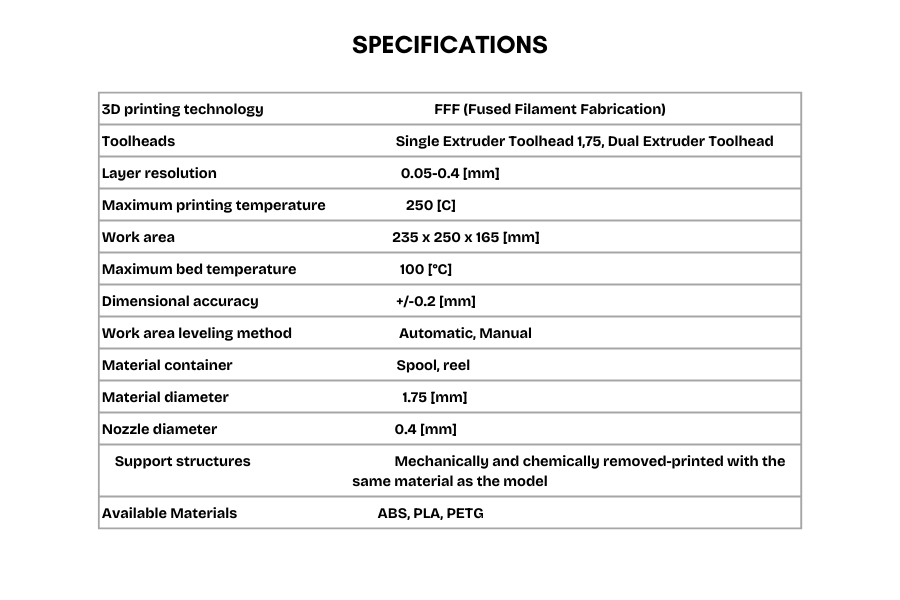

| Printing Technology : | FDM |
| Toolhead Build Volume : | 235 x 250 x 165 mm |
| Printing Speed : | ≤0.1 - 20 mm/s |
| Extruder : | Single Extruder Toolhead 1.75, Dual Extruder Toolhead |
| Diameter of material : | 1.75 / 3.00 mm |
| Nozzle Diameter : | 0.3 / 0.4 / 0.6 mm |
| Nozzle Temperature : | ≤250°C |
| Heatbed Temperature : | ≤110°C |
| Supported Filaments : | PLA, ABS, PET, Nylon, PVA, HIPS, ASA, TPE, PP, PC, PMMA, PC/ABS |
| : | |
| CNC milling : | |
| Spindle toolhead max. power : | 300 W |
| Noise : | 70 dB |
| Work area : | 235 x 250 x 85 mm |
| Work speed : | 0.1 - 20 mm/s |
| Compatibility : | ABS, Nylon, HDPE, PTFE, PC, PP, POM, PMMA, PVC, HIPS, LDPE, PET, Carbon, CCL FR4, Dibond, TCF, Wood, Wood-like, Aluminum, Brass, Copper, Cardboard, Wax, Modeling board, Styrodur |
| : | |
| File Transfer : | WI-FI, ethernet, USB |
| Rated Voltage : | 100V AC , ~ 4A 50/60 Hz / 240V AC, 2A 50/60 Hz |
| Rated Power : | 350 W |
| Printable File Format : | G-Code |
| Slicing Software : | Voxelizer |
| File Formats for Slicing : | .stl, .obj, .step, .dxf, .png, .bmp |
| Package Dimensions : | 600 x 600 x 570 mm |
| Net Weight : | 28.70 kg |
- 1. CNC Environment: Zmorph Fab is equipped with a professional CNC worktable with a simple solution for materials mounting. Safely work with various shapes and sizes of different materials. Zmorph’s Software now features CAM-standard workflow for CNC procedures with STEP operations, the ability to change the tool within one G-code, and path visualization.
- 2. Seamless UI: An accessible and intuitive user interface is designed for both professionals and first-timers. Effortlessly maneuver through the menu.
- 3. Voxelizer: The all-in-one software for 3D printing, and CNC milling. All Zmorph tool heads are supported. Try the materials presets or work on your own. Voxelizer has an optimized workflow for Zmorph 3D printers ensuring the best and fastest results.
- 4. SMART Toolheads: Changing workflows in Zmorph Fab is fast and easy with automatic tool head detection. Switching tools takes just a few easy steps and no more than a minute. You can work right away without extra tinkering.
- 5. Quiet Work: You can comfortably work next to the machine as Zmorph Fab generates almost no noise. Behind the quiet work stands the design of the 3D printer enhanced by high-quality electronics and carefully programmed drivers.
- 6. Electronics: Zmorph Fab is a desktop 2-in-1 3D printer, but has the heart of an industry-grade machine. The electronics provide reliability and repeatability. No need to worry about the outcome.
