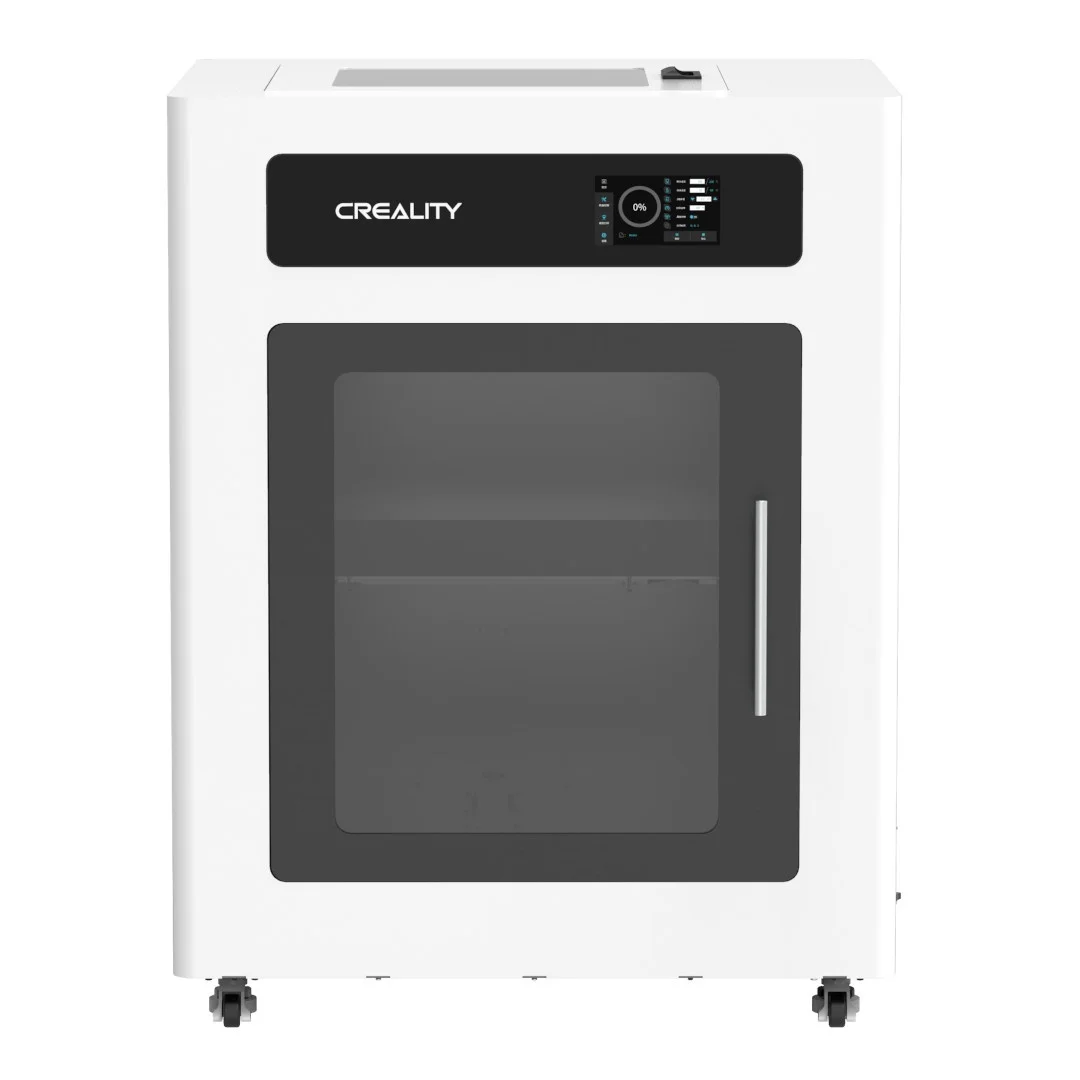

CR-5060 Pro

SKU: 3IDEA-CRE-CR-5060 Pro-FDM
 529,999

Taxes Included | Free Shipping

Industrial Grade Material Capabilities Fully Enclosed for Temperature Stability Max Hotbed Temperature: 110 ÌŠC (230 ÌŠF) High-Temperature Nozzle: 300 ÌŠC (572 ÌŠF) Designed for PLA, ABS, PETG, PC, Nylons35


This Product is Out Of Stock......

  •  Industrial Grade Material Capabilities
  •  Fully Enclosed for Temperature Stability
  •  Max Hotbed Temperature: 110 ̊C (230 ̊F)
  •  High-Temperature Nozzle: 300 ̊C (572 ̊F)
  •  Designed for PLA, ABS, PETG, PC, Nylons
  •  Max Print Volume
  •  150,000 Cubic cm (cm ) (9160 Cubic Inches)
  •  X Dimension: 500 mm (19.7Inches)
  •  Y Dimension: 500 mm (19.7 Inches)
  •  Z Dimension: 600 mm (23.6 Inches)
  •  Industrial Grade Applications
  •  What ifs...
  •  Prototypes
  •  Test Fixtures
  •  Production Fixtures
  •  Concept Justification
  •  Packaging Evaluations
  •  Product Shape Alternatives
  •  Finished Goods Production
    Technical specifications :
    :
    Usable Nozzle Type CR-5060 PRO:
    Usable Filament Diameter 1.75 mm:
    Max Nozzle Temperature 300 ºC:
    Open Filament System Yes:
    Extruder Type Direct drive:
    Build Area 500 mm x 500 mm x 600 mm:
    Build Plate Temp Max 110 ºC:
    Build Plate Material Carborundum glass plate:
    Build Plate Attachment clamp:
    Build Plate Leveling System BL-Touch:
    Build Chamber During Process Open or Closed:
    Filament Chamber Closed Yes:
    Extruder Number Of 1:
    Installation Space / Requirements :
    Total Mass Overall Dimensions 905 mm x 800 mm x 1150 mm:
    Total Weight 143 kg:
    Max Power Consumption 900 W:
    Voltage AC: 200 V - 240 V
    DC: 24 V
    Equipment :
    Hepa Filter Yes:
    Filament Runout Sensor Yes:
    Touch Screen Yes:
    Connection :
    SD Card Yes:
    USB Port Yes:
    WLAN No:
    Accuracy :
    Layer Height 0.1 - 0.3 mm:
    Shipping :
    Shipping Box 1024 mm x 969 mm x 1400 mm:
    Shipping Weight 230 kg:
