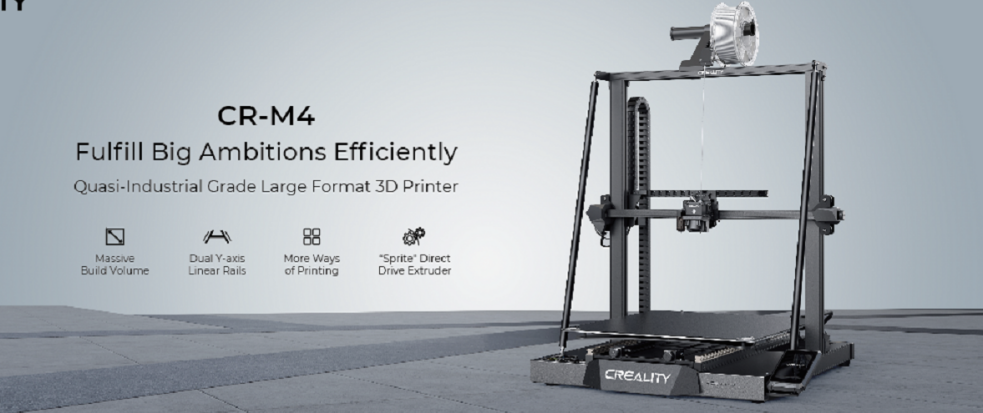

Creality CR-M4 3D Printer
Rs. 111,999
- High Printing Speed
- CR Touch 25-point Auto-leveling
- Power Loss Recovery and Filament Runout sensor
- Quality Dual Y-axis Linear Rails
- Anti-wobbling Dual Z-axis
- PC Spring Steel Build Surface
DOWNLOAD BROCHURE
Detail
| Printing Technology : | FDM |
| Build volume : | 450*450*470mm |
| Printing Speed : | ≤120mm/s |
| Printing Accuracy : | ±0.Imm |
| Layer Height : | 0.05-0.35mm |
| Extruder Type : | "Sprite" dual-gear direct drive extruder |
| Extruder Material : | All metal |
| Filament Diameter : | 1.75mm |
| Z-axis Count : | 2 |
| Nozzle Type : | Brass nozzle |
| Nozzle Diameter : | Standard 0.4mm (compatible with 0.6/0.8mm) |
| Nozzle Temperature : | ≤300°C |
| Heatbed Temperature : | ≤100°C |
| Build Surface : | PC spring steel sheet |
| Leveling Mode : | CR Touch Auto-leveling |
| File Transfer : | USB drive, WiFi, USB-C cable, RJ45 cable |
| Display Screen : | 43-inch color touchscreen |
| Mainboard : | Integrated 32-bit silent mainboard |
| Power loss Recovery : | Yes |
| Filament Runout Sensor : | Yes |
| Multi-printers Control : | Yes |
| Sleep Mode : | Yes |
| Rated Voltage : | 100-240V-, 50/60Hz |
| Rated power : | 800W |
| Slicing Software : | Creality Print, Creality Slicer, Cura |
| File Formats : | STL, OBJ, AMF |
| Supported Filaments : | PLA PA, ABS, PLA-WOOD, PLA-CF, TPU, PETG |
| Languages : | English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Chinese |
| Product Dimensions : | 655*700*865mm |
| Package Dimensions : | 790*760*300mm |
| Net Weight : | 22.48KC |
| Gross Weight : | 28.3KG |
- Quasi-industrial Large Format - CR-M4 boasts a massive build volume of 450*450*470mm. It is a real workhorse to createbig models with less or no post-processing or tobatch-print more parts in one go. Time to maxout creativity and let thoughts run wild.
- Precise and Reliable Dual Y-axis Linear Rails - 2 CNC-machined precision linear rails optimize the Y-axis transmission which, driven by a strong and precise motor, runs accurately and smoothly. Made out of bearing steel, the rails withstand wear, blacklash heavy load. Way more reliable and durable than V-slot rails.
- Strong and Precise Motor- 720h (30 days) constantly steady printing
- Always a Handy Way of Printing - Able to print via USB drive, USB-C cable, RJ45 cable, or WiFi. With a LAN connection, users can print from any PC on the LAN by using Creality Print. With an Internet connection, users can print and monitor remotely from the Creality Cloud APP or Web.
- Start a Print Farm with Multi-printers Control - When many CR-M4 printers are online, it is easy to start a 3D print farm for volume production, where the printers produce the same model on a single command from Creality Print or Creality Cloud Web.
- High-flow Hotend - Upgraded high-flow nozzle plus 50W heater cartridge, fully melt high-temp filament at 300°C for fluent feeding. Swappable with a 0.6/0.8mm nozzle.
- Dedicated Model Cooling - A standalone 4020 fan channels strong
- wind to cool the freshly printed section. Let the model solidify faster with less drooping or warping.
- Genuine 25-point Auto-Leveling - Fully automatic leveling with CR Touch by probing 25 points, and Z offset at 0.05mm accuracy to quickly calibrate the distance between the nozzle and the build surface.
- Flexible PC Surface and Fast-heating Bed - A 4-layered build plaform. The PC coating provides strong adhesion. The bendable spring steel sheet is easy to remove large models and will not deform after long-term use. The magnetic base and two pins allow quick snap-on. And the 470x470mm aluminum heatbed will heat up to 100°C within 160s
- Less Wobbling with Rigid Z-axis - The dual Z-axis curb gantry sagging and Z-wobbling. Together with the 2 support rods, a rigid triangle is formed to stabilize the top frame. Each Z-axis is driven by a standalone motor for neat movement. Now, the quality of tall models is ensured from bottom to top.
- 800W Industrial Control Power Supply - Adaptive to 100-240 voltages worldwide, the 800W adapter delivers over 90% efficiency and little thermal run-away. It filters voltage fluctuations and electromagnetic interference, and protects against short-circuit, overload, overvoltage and overheat. Rest assured with the safe and steady peak performance.
Start a Print Farm with Multi-printers Control
When many CR-M4 printers are online, it is easy to start a 3D print farm for volume production, where the printers produce the same model on a single command from Creality Print or Creality Cloud Web.
