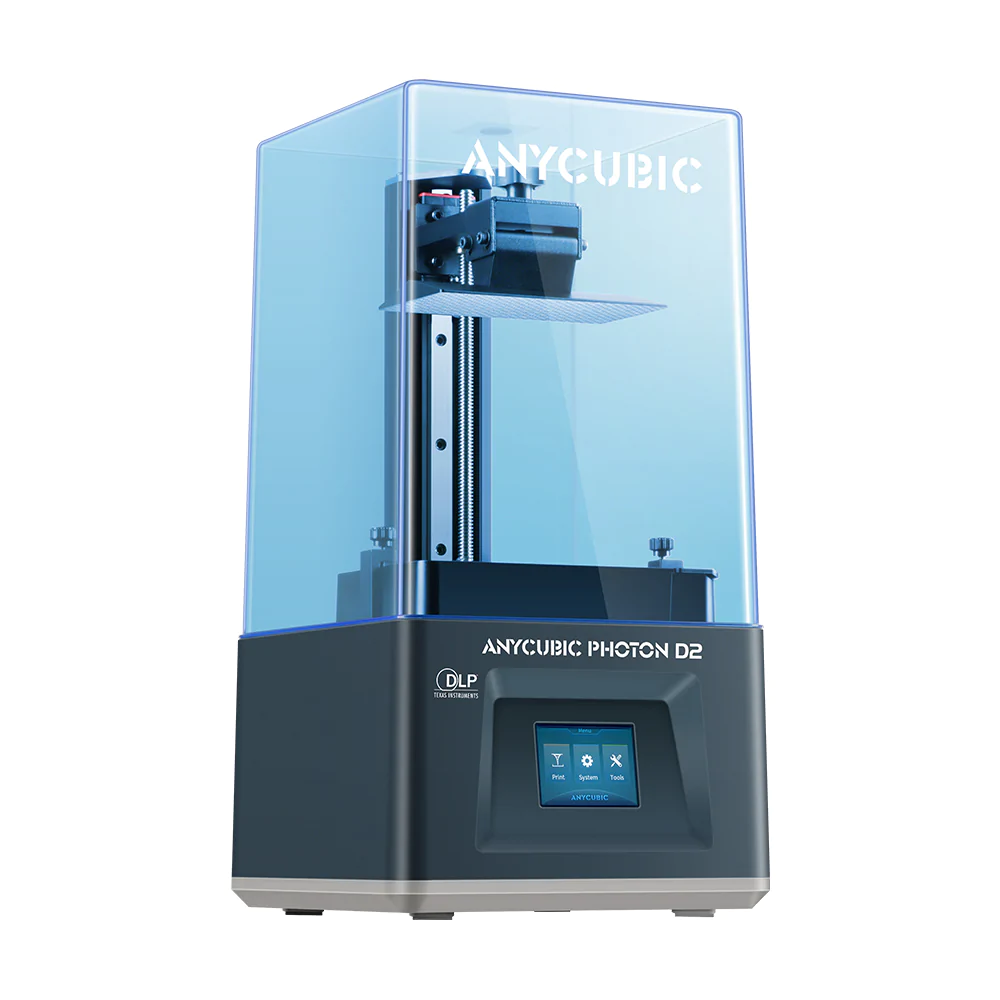

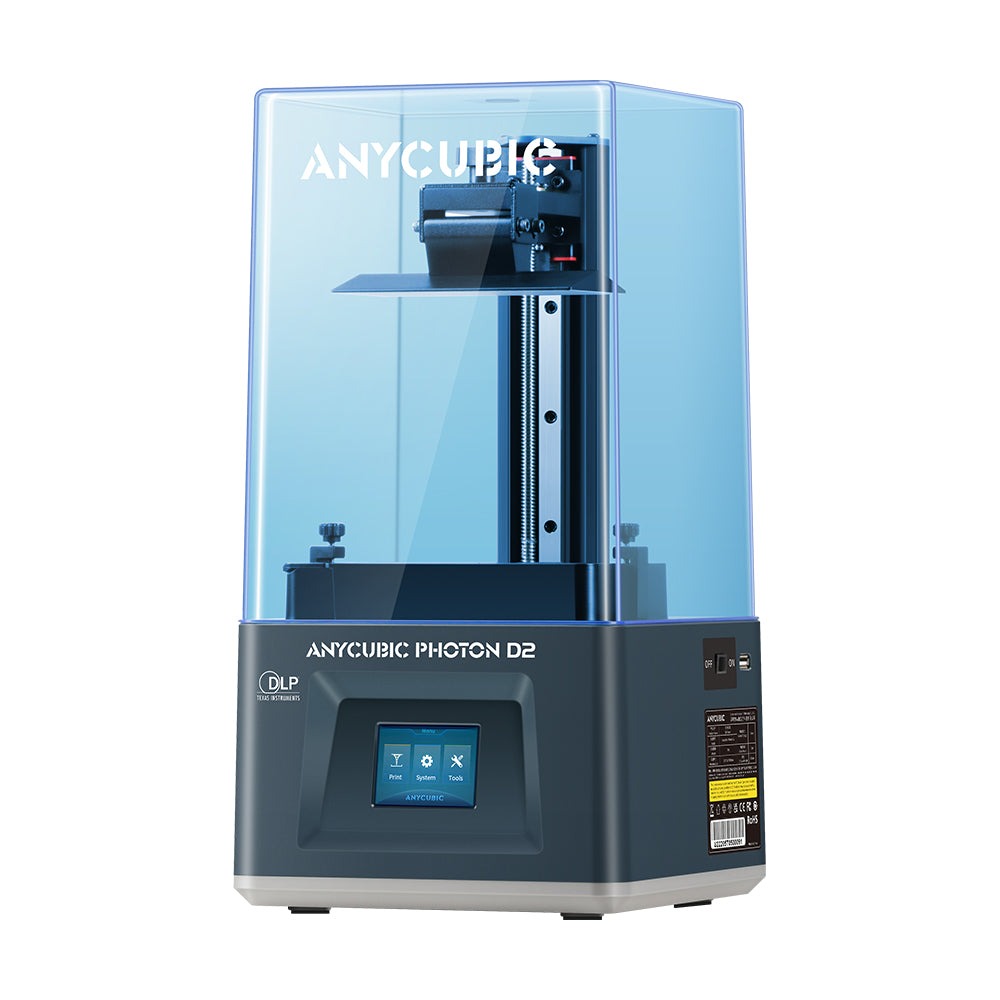

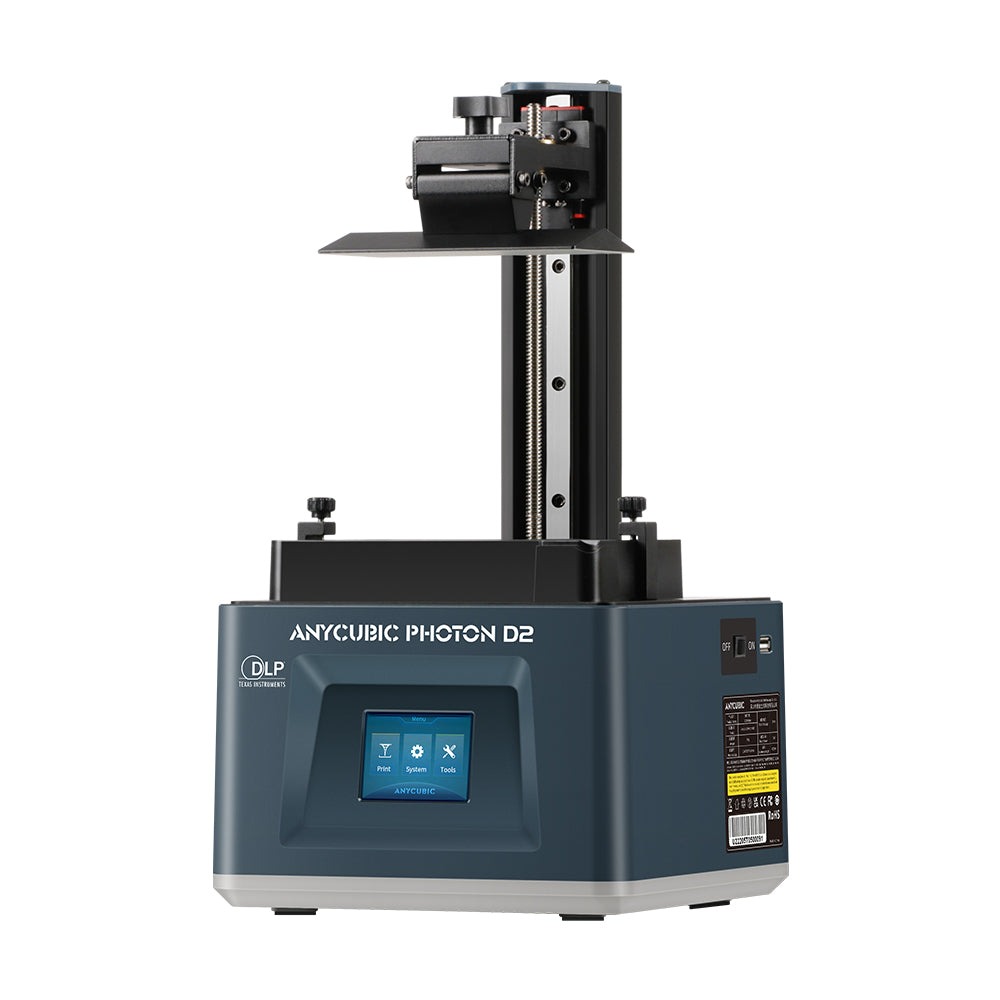

Anycubic Photon D2 3D Printer
Rs. 59,340
- Consumer DLP® 3D Printer
- Print Volume : 73 x 131 x 165mm, 1.58L
- 20,000Hr Lamp life
- Horizontal resolution: 51 μm
- 35dB Silent Printing
DOWNLOAD BROCHURE
Detail
| Machine Weight : | 4kg/8.81b |
| Printing Volume : | 1.58L/53.43oz |
| Exposure Time : | ≥2.5s/layer |
| Z Axis : | Single liner |
| Uniformity : | 92% |
| Light Transmittance : | 92% |
| Build Platform : | Laser Carved Metal |
| Removable Cover : | Effectively blocks UV radiation |
| Data Input : | USB Type-A 2.0 |
| Machine Dimensions : | 17.2x9.3x8.9in./ 430x236x226mm(HWD) |
| Printing Dimensions : | 6.5x5.1x2.9in./ 165x131x73mm(HWD) |
| Machine Leveling : | 4-point manual leveling |
| Exposure Size : | 95.42mm² |
| Projector Resolution : | 2560*1440 |
| Resin Vat : | One-piece design with scale lines |
| Control Panel : | 2.8" TFT touch-control |
| Power Supply : | 15W rated power |

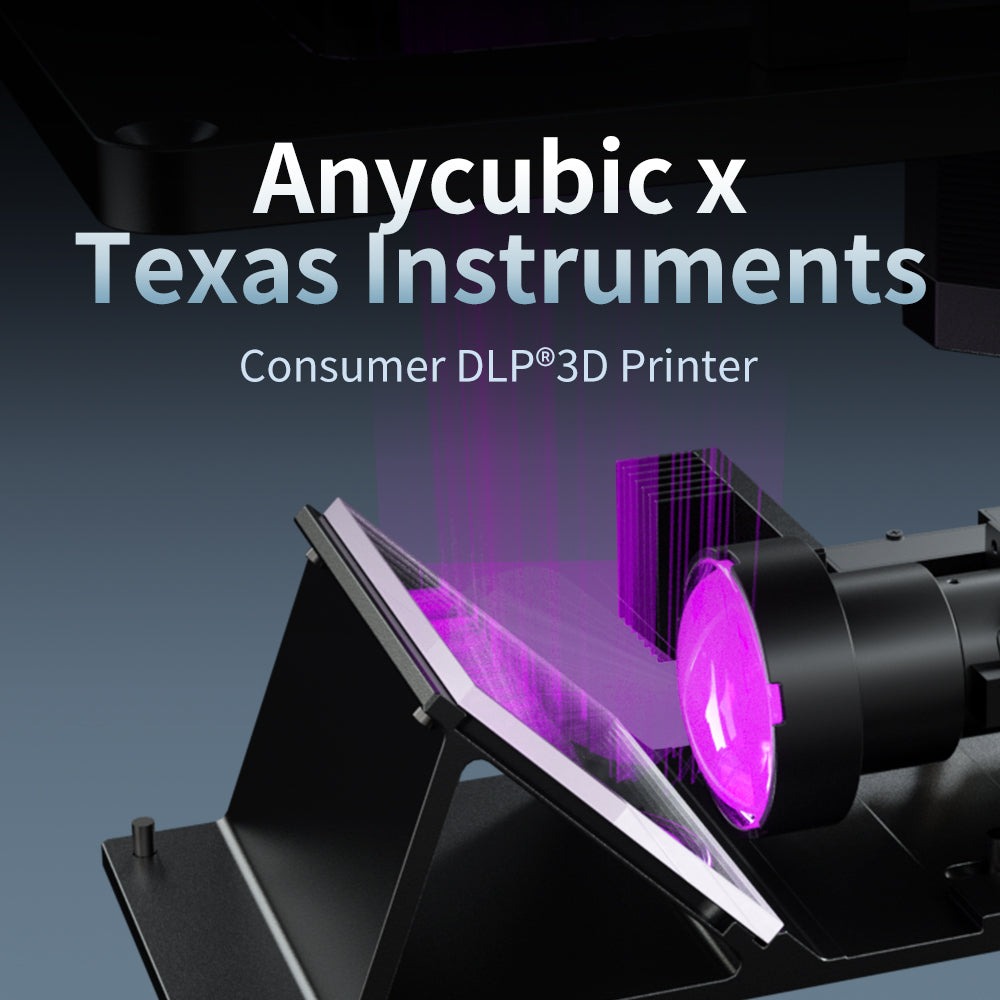

- Consumer DLP@ 3D Printer - Using the DLP (Digital Light Processing) 3D printing technology, thousands of mirrors (DMD) concentrate the light with minimal diffusion directly to the bottom of the resin vat, thus improving the uniformity of light and achieving ultra-high precision printing results. With DLP@ technology, Anycubic Photon D2 DLP resin 3D printer handles more accurate and precise 3D printing, capturing more vivid details.
- Double Algorithms - The application of the latest light uniformity algorithm increases the light uniformity to more than 92%. Combined with the anti- aliasing algorithm, the anti-aliasing effect is significantly enhanced, bringing more details to the miniatures.

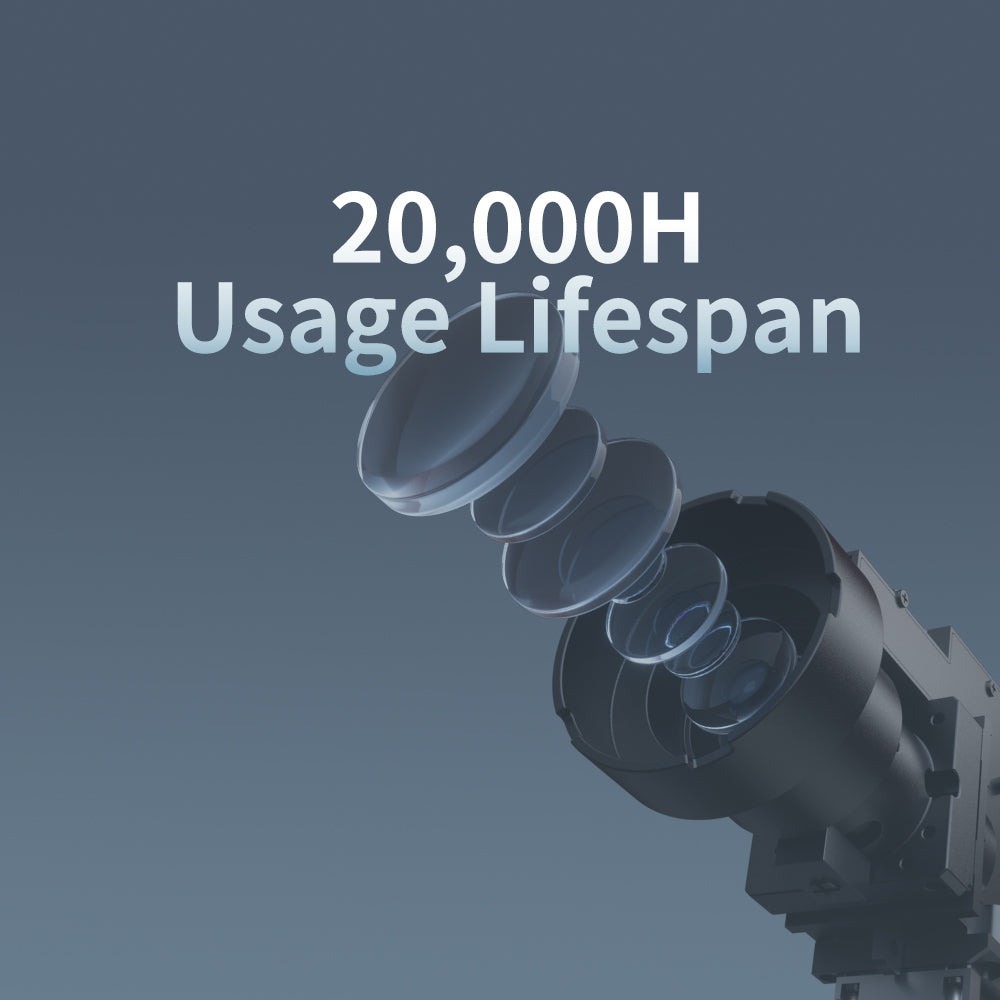

- IO Times Life Span - Empowered by the DLP projector that of a life span of 20,000 hours, there is no need to replace screens like an LCD printer, which per screen of a life span of 2,000 hours, making you save up a significant amount of maintenance cost.
- Larger Printing Dimension - Compared with Anycubic Photon Ultra, the printing volume of Anycubic Photon D2 increases by 62% to reach 130.56mm*73.44mm*165mm; and the printing area, rises by 55% to reach 95.42cm².
- Quiet Printing Experience -The application of DLP® technology unlocks the possibility of designing a printer without a fan for heat dissipation as the light source modules only generate little heat while operating. Bringing a quiet and soothing printing experience.
- Low Energy Consumption - The Digital Light Processing (DLP®) technology can efficiently utilize the light source, which makes the printer power as low as 15W, only 1/4 the power of LCD printers.
- Greater Adhesion - The dedicatedly designed Laser engraving pattern significantly enhances the adhesion of the printing platform, bringing a better printing success rate.
