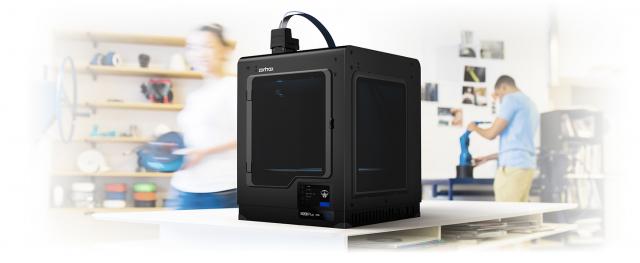

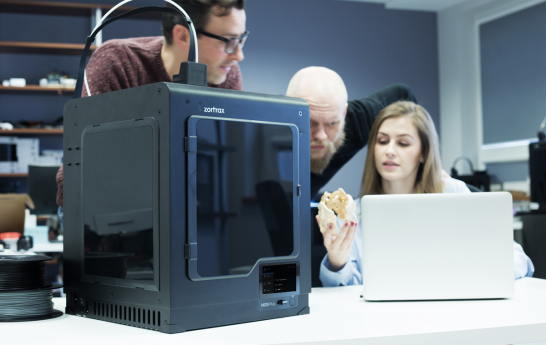

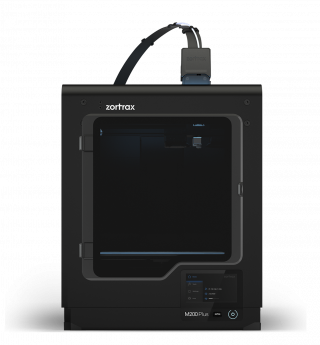

Zortrax M200 Plus
Taxes Included | Free Shipping
Zortrax M200 Plus is a high-performance desktop 3D printer with wireless connectivity. It’s designed to work in large 3D printing farms as a powerhouse of rapid prototyping, design, and production. The printer works in the LPD technology, Zortrax original take on Fused Deposition Modeling (FDM) guaranteeing high quality results and low maintenance. It deposits melted thermoplastic flaments layer by layer to turn digital models into physical objects. FDM is the most cost-effcient technique of 3D printing on the market, which makes it perfect for rapid prototyping and manufacturing without putting extensive strains on the budget. Designed as a basic production unit for a 3D printing farm, Zortrax M200 Plus is made for reliable, unsupervised operation over long periods of time. Dedicated Z-SUITE software has all the features necessary for remote management of multiple M200 Plus 3D printers over Wi-Fi to effciently cope with scalable, fexible rapid manufacturing.
This Product is Out Of Stock......
- › Workspace measures 200x200x180 mm
- › Wi-Fi and Ethernet connectivity
- › Can work in 3D printing farms
- › Offers advanced remote management
- › Has a flament endstop mechanism
- › Has a built-in camera
- › Has an Intuitive LCD touchscreen
- › Cooling system has been upgraded (double fan and
- extruder cooling)
- › Extruder has been upgraded (redesigned hotend v3
- and nozzle with new geometry)
- › Offers compatibility with fex-type materials
- › Works with wide range of dedicated flaments
- › Supports third-party flaments
Device: | |
Build volume 200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in): | |
Material container Spool: | |
Material diameter 1.75 mm (0.069 in): | |
Nozzle diameter 0.4 mm (0.016 in): | |
Support Mechanically removed - printed with the same material: | |
as the model: | |
Extruder Single (upgraded for more demanding materials): | |
Extruder cooling: | |
system: | |
Radial fan cooling the extruder block; two fans cooling: | |
the print: | |
Hotend Redesigned (v3), new geometry of the nozzle: | |
Material endstop Mechanical: | |
Platform Perforated, equipped with pogo pins: | |
Connectivity Wi-Fi, Ethernet, USB: | |
Operating system Android: | |
Processor Quad Core: | |
Touchscreen 4” IPS 800 x 480: | |
Camera Yes: | |
External materials Applicable: | |
: | |
Software: | |
Software bundle Z-SUITE: | |
Supported input fle types .stl, .obj, .dxf, .3mf: | |
Supported operating systems Mac OS X / Windows 7 and newer versions: | |
Printing: | |
Technology LPD (Layer Plastic Deposition) – depositing melted: | |
material layer by layer onto the build platform: | |
Layer resolution 90 - 390 microns: | |
Minimal wall thickness 400 microns: | |
Platform levelling Automatic measurement of platform points’ height: | |
Temperature: | |
Maximum printing temperature: | |
(extruder) 290˚ C (554° F): | |
Maximum platform temperature 105˚ C (221° F): | |
Ambient operation temperature 20 - 30° C (68 - 86° F): | |
Storage temperature 0 - 35° C (32 - 95° F): | |
Electrical: | |
AC input 110 V ~ 5.9 A 50/60 Hz ; 240 V ~ 2.5 A 50/60 Hz: | |
Maximum power consumption 320W: | |
In the box: | |
3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, spool of material,: | |
improved spoolholder: |
