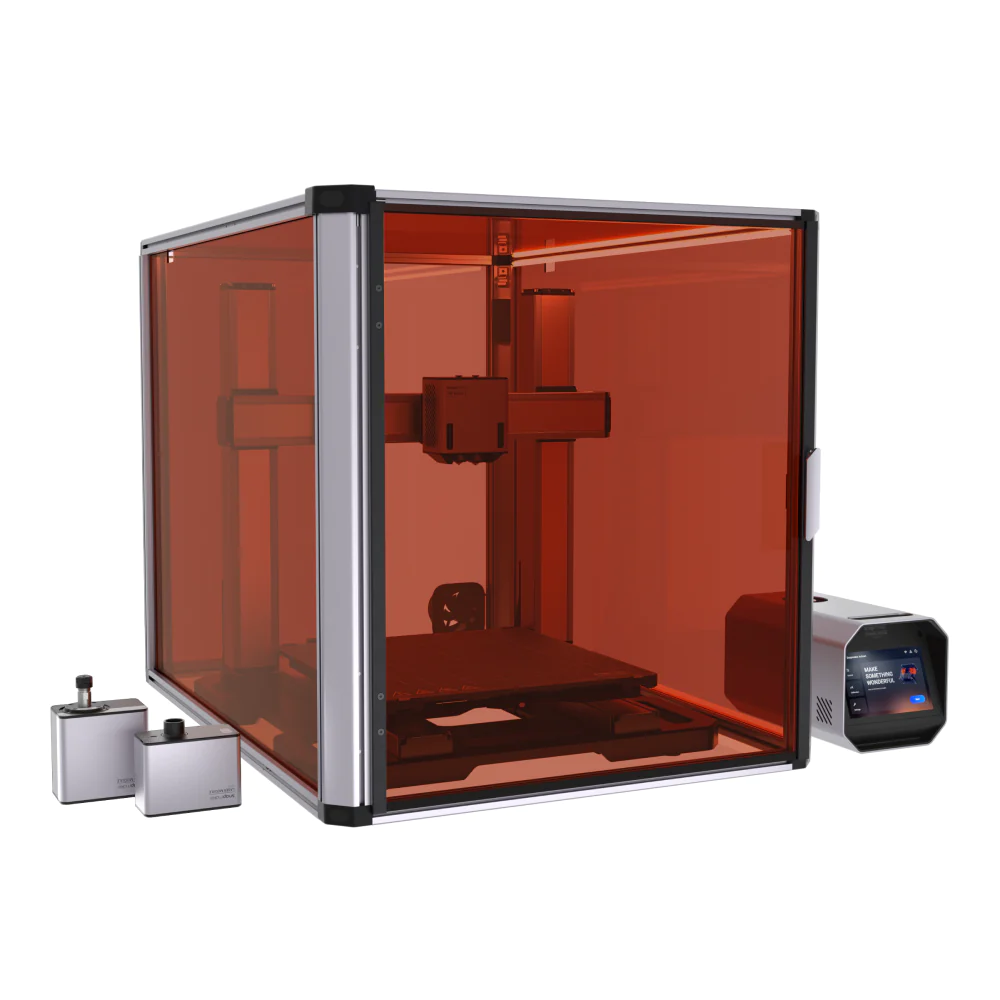

Snapmaker Artisan 3-in-1 3D Printer
Rs. 274,999
- 3-in-1 Functionality: Combines 3D printing, laser engraving, and CNC carving.
- Quick-Swap Modules: Effortless transition between functionalities.
- Large Workspace: 400 x 400 x 400 mm for diverse projects.
- Dual Extrusion: Supports multi-material and multi-color printing.
- High Precision: Achieves detailed outputs with industrial-grade linear rails.
- Easy Calibration: Automatic bed leveling and calibration.
DOWNLOAD BROCHURE
Detail
| Printing Technology : | FDM |
| : | |
| 3D printer Build Volume : | 350 mm × 400 mm × 400 mm (Dual Nozzle) |
| Maximum Printing Speed : | 300mm/s |
| Recommended Printing Speed : | 180mm/s |
| Build Plate : | Double-sided PEl-coated Glass |
| Layer Height : | 0.05-0.3mm |
| Extruder : | direct drive extruder |
| Filament Diameter : | 1.75mm |
| Nozzle Diameter : | 0.4 Standard [0.2 mm / 0.6 mm / 0.8 mm Brass Nozzle, 0.4 mm Hardened Nozzle] |
| Nozzle Temperature : | ≤ 300℃ |
| Max. Heated Bed Temperature (Inner Zone) : | 110°C |
| Max. Heated Bed Temperature (Outer Zone) : | 80°C |
| Build Surface : | Flexible build plate |
| Leveling Mode : | Auto-leveling and calibration |
| Supported Formats : | stl, svg, png, jpg, jpeg, bmp, dxf |
| Supported Materials : | Wood, acrylic, PCB, carbon fiber sheet, jade, and more being tested |
| : | |
| Laser Engraving and Cutting Build Volume : | 400 x 400 x mm |
| Maximum Engraving Speed : | 100 mm/s |
| Camera : | Built-in camera |
| Laser Power : | 10W |
| Laser Type : | 450 nm–460 nm Semi-conductor |
| Safety Class : | Class 4 |
| Supported Engraving Materials : | Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, copper-clad laminate, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Ceramics, Jade, Marble, Shale, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded) |
| Supported Cutting Materials : | Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded) |
| : | |
| CNC Carving Build Volume : | 400 x 400 mm |
| CNC Carving Module Wattage : | 200W |
| Maximum Spindle Speed : | 18,000 RPM |
| Maximum work speed : | Beech 50 mm/s, Acrylic 33 mm/s |
| Shank Diameter : | 0.5–6.35 mm |
| Spindle Speed : | 6,000–12,000 RPM |
| Supported Materials : | Hardwood (Beech, Walnut), Softwood, HDF, MDF, Plywood, Jade,Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB |
| : | |
| Frame Material : | Aluminum alloy |
| Data Transmission Methods : | Wi-Fi, USB cable, USB flash drive |
| Touchscreen Specs : | 5 in., Android OS, Quad-core 1.1 GHz ARM Cortex-A7 |
| Supported OS : | Windows, macOS, Linux |
| Integrated Controller Power : | 300W + 400W |
| Power Loss Recovery : | Yes |
| Printable File Format : | G-Code |
| Slicing Software : | Snapmaker Luban; compatible with Cura, |
| Product Dimensions (Machine & Enclosure) : | 665 mm × 943 mm × 705 mm |
| Package Dimensions : | 37.3 kg (Box A), 24.65 kg (Box B) |
| Net Weight : | 53 kg |
| Gross Weight : | 34.8 kg (Box A) 31.5 kg (Box B) Total |
- Industrial-grade Transmission Technology: We introduce industrial-grade transmission technology to desktop fabrication—steel guide rails made by CNC grinding at the micron level are embedded in Artisans linear modules. This leads to a significant rise in precision, rigidity, and durability, bringing you a fast, accurate, and steady-making experience.
- Bed Size: Create big or multiple objects as you please in a 400 mm × 400 mm × 400 mm large work area
- All-metal. Next Level: While inheriting Snapmakers signature all-metal design, Artisan also comes with an upgraded one-piece die-cast base plate in a larger size. Its as steady as a rock even during high-speed CNC machining.
- Ultra-wide 7 Touchscreen for More Room to Play: Vision broader. Workflow smoother. UI design is more intuitive. And operation that fits ergonomics better.
- Fast and Well: Thanks to the optimized transmission system and motion control algorithm, Artisan features ± 0.1 mm dimensional accuracy when printing at a high speed of 180 mm/s.
- Dissolvable Support Printing: Module that supports PVA, HIPS, and other dissolvable materials. Simply soak the print and the supports will dissolve
- Save Time and Power with Zone-heated Bed: A heated bed lies in a 260 × 260 mm high-temperature zone that can reach 110°C, whereas the highest temperature of the outer zone is 80°C.
- Double-sided. Multi-talented: The new build plate is made of glass with higher flatness, ensuring a smoother and more adhesive first layer. Its glossy glass on one side and PEI coating on the other side, aiding in the adhesion of various filaments.
- More Powerful Laser Engraving and Cutting: Coming with the latest 10W Laser Module, Artisan is capable of faster and deeper cutting on more materials, and delivering refined laser engraving.
- 1.6W and 10W Laser Comparison. : can engrave at a speed as high as 6000 mm/min, while cutting through wood as thick as 8 mm in a single pass
- Not Just About Strength, but Finesse: Empowered by the Laser Beam Splitters and beam shaping optics, the laser module features a 10W high power and an ultra-fine laser focus (0.05 mm × 0.2 mm). This allows for high-quality laser works with impeccable details
- Strut Your Stuff and Leave the Rest to Us: The triangulation technology calculates the thickness of materials and completes autofocus in seconds. The wide-angle camera captures your material in one take and lets you get an instant preview of your laser job in Luban.
- More Powerful CNC Carving and Cutting: Equipped with a 200W CNC Module, Artisan further improves the CNC performance, while keeping the ER11 collet, customized clamp sets, and dust-proof design that are highly acclaimed by users, offering you a new desktop CNC experience.
- 6X Faster CNC Machining: Compared with Snapmaker 2.0, the CNC module of Artisan has increased by 300% in power and 50% in maximum spindle speed, making it 6 times faster in machining on hardwood like beech.
- 0.2 mm Dimensional Accuracy: The high-rigidity linear modules and high-speed spindle empower the CNC module to carve or cut smoothly on various materials, with a dimensional accuracy of up to 0.2 mm
