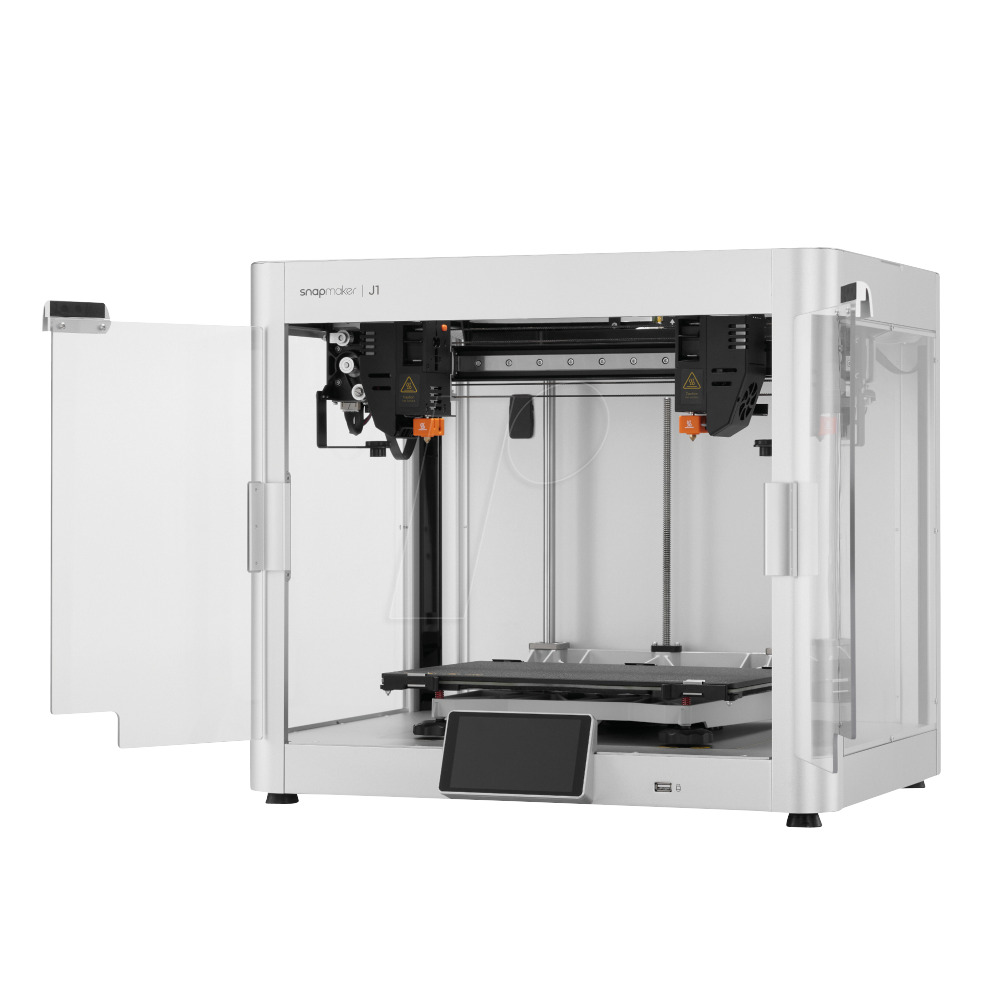

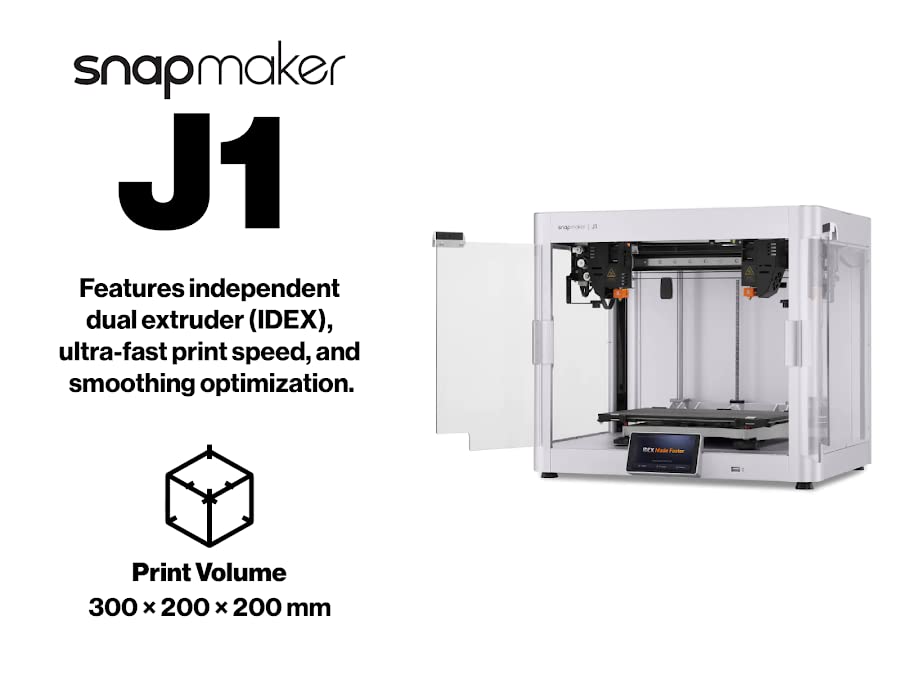

Snapmaker J1 3D Printer
Rs. 158,499
- Independent dual extruder (IDEX)
- Up to 350 mm/s printing speed
- Copy Mode and Mirror Mode that double productivity
- 300°C hot ends & 100°C heated bed
- Print volume 300 — 200 — 200 mm
- Easy-swap hot ends with multi-diameters
DOWNLOAD BROCHURE
Detail
| Printing Technology : | FDM |
| Printing Modes : | 1. Default Mode 2. Backup Mode 3. Copy Mode 4. Mirror Mode |
| Build Volume (W × D × H) : | |
| Default Mode & Backup Mode : | 300 mm × 200 mm × 200 mm |
| Copy Mode : | 160 mm × 200 mm × 200 mm |
| Mirror Mode : | 150 mm × 200 mm × 200 mm |
| Printing Speed : | ≤350 mm/s |
| Printing Accuracy : | ±0.2 mm |
| Layer Height : | 0.05 mm–0.3 mm |
| Extruder System : | Independent Dual Extruders (IDEX) |
| Filament Diameter : | 1.75mm |
| Nozzle Diameter : | 0.4 mm (included), 0.2 mm, 0.6 mm, 0.8 mm, Hardened (sold separately) |
| Nozzle Temperature : | ≤300°C |
| Heatbed Temperature : | ≤100°C |
| Build Surface : | PEI glass plate |
| Leveling Mode : | auto leveling and calibration |
| File Transfer : | Wi-Fi, USB cable, USB flash drive |
| Display Screen : | 5 inch |
| Power Loss Recovery : | Yes |
| Filament Runout Sensor : | Yes |
| Rated Power : | 400W |
| Supported Filaments : | PLA, ABS, HIPS, PC, TPU (Hardness > 90 Shore A), TPE, PETG, ASA, PP, PVA, PA, PA-GF, PA-CF |
| Printable File Format : | G-Code |
| Slicing Software : | Snapmaker Luban, Ultimaker Cura, other 3rd Party software. |
| File Formats for Slicing : | STL, OBJ, 3MF |
| Dimensions (W × D × H) : | 539 mm × 401 mm × 464 mm |
| Net Weight : | 25 kg |
| Gross Weight : | 28kg |
- Fast Idex Printing: Compared with a multi-material unit on a single extruder, IDEX dual-material printing requires less time in filament changing and creates less waste. Plus, IDEX offers the cleanest two-extruder solution that prevents cross-contamination.
- Print in Parallel: Halve your wait time, and double your productivity. IDEX is the only extrusion system with two separate extruders moving independently on the X-axis, enabling you to run two prints simultaneously.
- Vibration Compensation: J1 brings you a top-of-class printing speed of 350 mm/s while ensuring a high resolution of print This technology reduces the vibrations caused by high-speed movements, minimizing ringing to enhance print quality
- Seamless Extruders Switching and Cornering Optimization: During dual extrusion printing, the non-working extruder preheats while on standby, and starts printing right after the working extruder leaves, significantly reducing your waiting time. By analyzing the extruders' moving directions ahead of time, J1 can prevent problems like corner bulges, delivering better print quality at corners.
- One-piece Die Casting: 1's body comprises an upper frame and a base made by one-piece die casting, and four aluminum alloy bars. J1 is so rigid and reliable with minimal wobble and deformation possible that you can print large projects one after another for a long time and get all prints of uncompromising quality.
