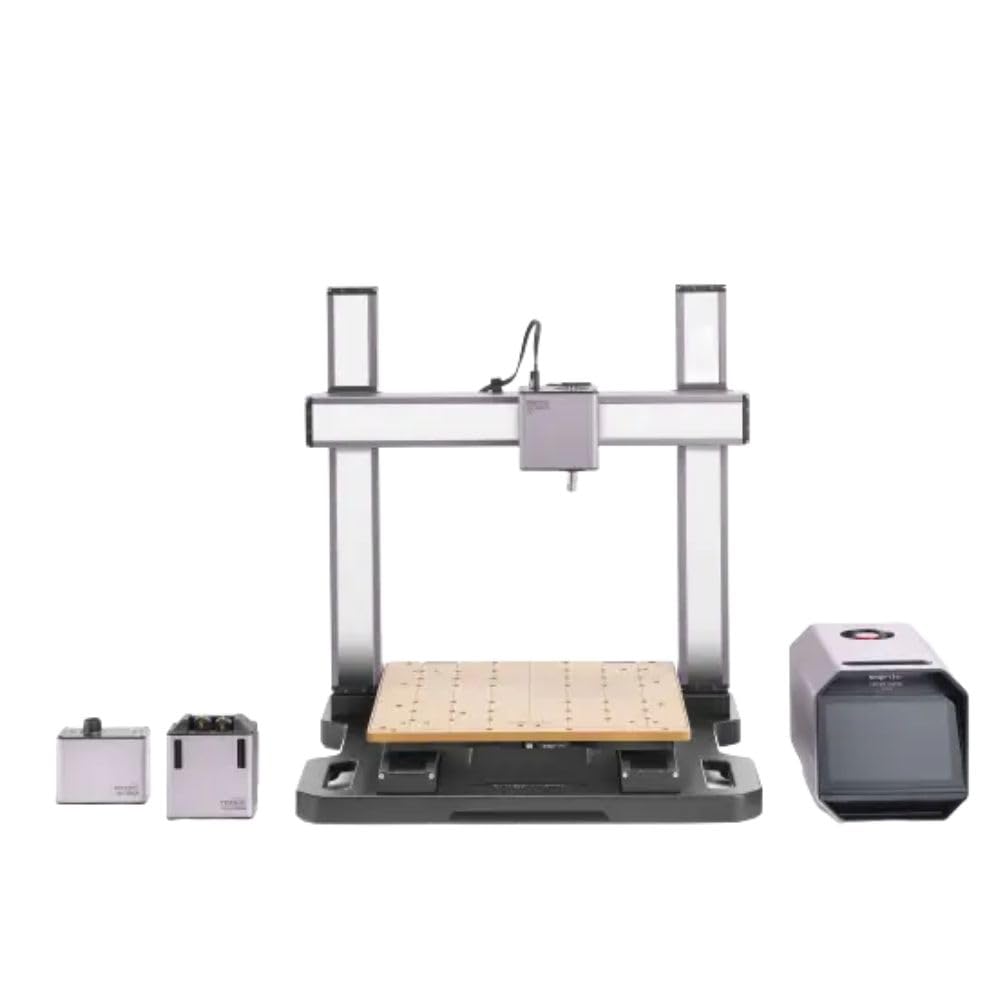

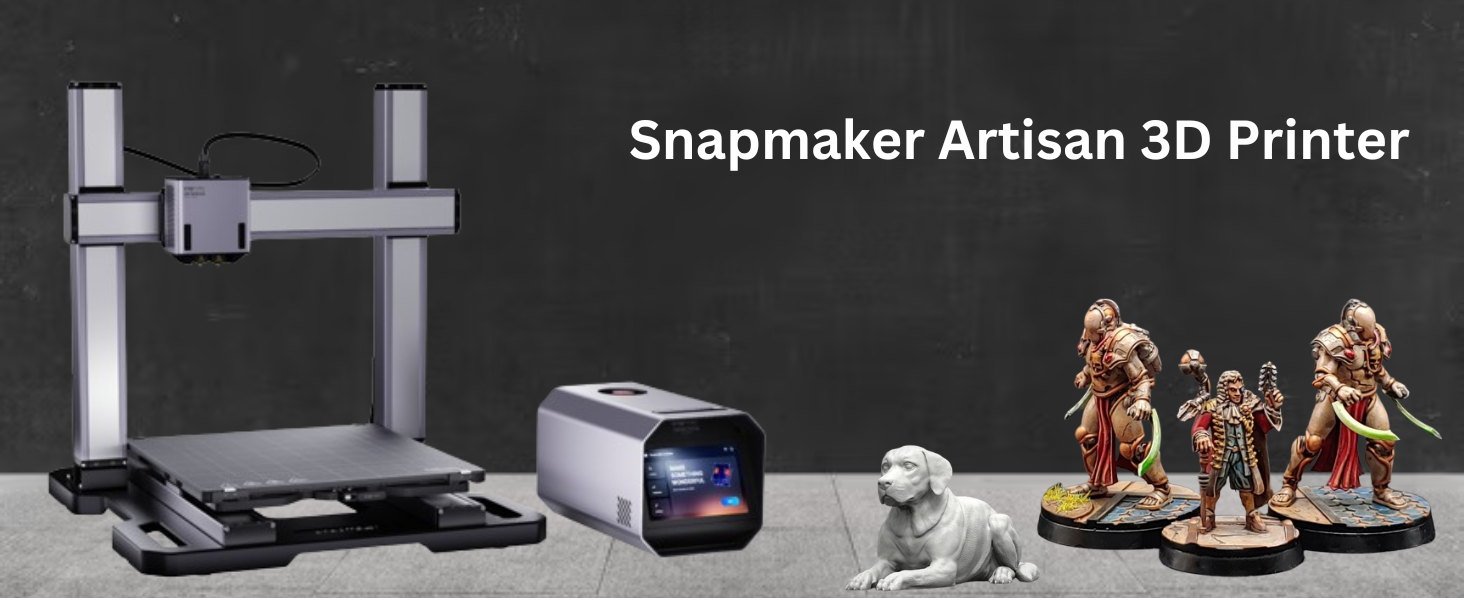

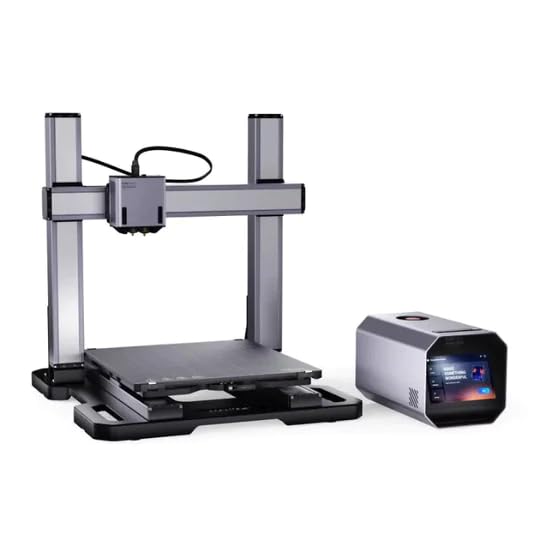

Snapmaker Artisan 3D Printer

Brand: Snapmaker
SKU: 3IDEA-SNP-ARTISAN-3D-PRINTER
Rs. 234,999
(0 Reviews)
    • All-in-One 3D printer, CNC carver, and laser engraver
    • 3D Printing Work Area (350 x 400 x 400 mm) - PLA, ABS, PETG, TPU, wood-filled PLA, etc
    • Auto-leveling and calibration
    • Modular and easy to assemble
    • User-friendly touchscreen interface
    • Compatibility with multiple materials
Add to Cart

Detail

"Printing Technology : FDM
Build Volume : 350 mm × 400 mm × 400 mm (Dual Nozzle)
Maximum Printing Speed : 300mm/s
Recommended Printing Speed : 180mm/s
Build Plate : Double-sided PEl-coated Glass
Layer Height : 0.05-0.3mm
Extruder : direct drive extruder
Filament Diameter : 1.75mm
Nozzle Diameter : 0.4 Standard [0.2 mm / 0.6 mm / 0.8 mm Brass Nozzle, 0.4 mm Hardened Nozzle]
Nozzle Temperature : ≤ 300℃
Max. Heated Bed Temperature (Inner Zone) : 110°C
Max. Heated Bed Temperature (Outer Zone) : 80°C
Build Surface : Flexible build plate
Leveling Mode : Auto-leveling and calibration
Supported Formats : stl
Supported Materials : PLA, ABS, PETG, TPU (Hardness > 95 Shore A), wood-filled PLA, and more being tested
Frame Material : Aluminum alloy
Data Transmission Methods : Wi-Fi, USB cable, USB flash drive
Touchscreen Specs : 5 in., Android OS, Quad-core 1.1 GHz ARM Cortex-A7
Supported OS : Windows, macOS, Linux
Integrated Controller Power : 300W + 400W
Power Loss Recovery : Yes
Printable File Format : G-Code
Slicing Software : Snapmaker Luban; compatible with Cura,
Dimensions (Machine & Enclosure) : 665 mm × 943 mm × 705 mm
Package Dimensions : 37.3 kg (Box A), 24.65 kg (Box B)
Weight : 36.9 kg
Package Weight : 34.8 kg (Box A) 31.5 kg (Box B) Total

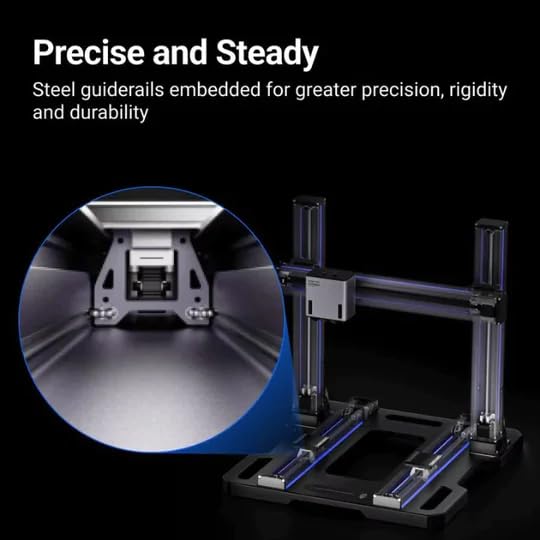

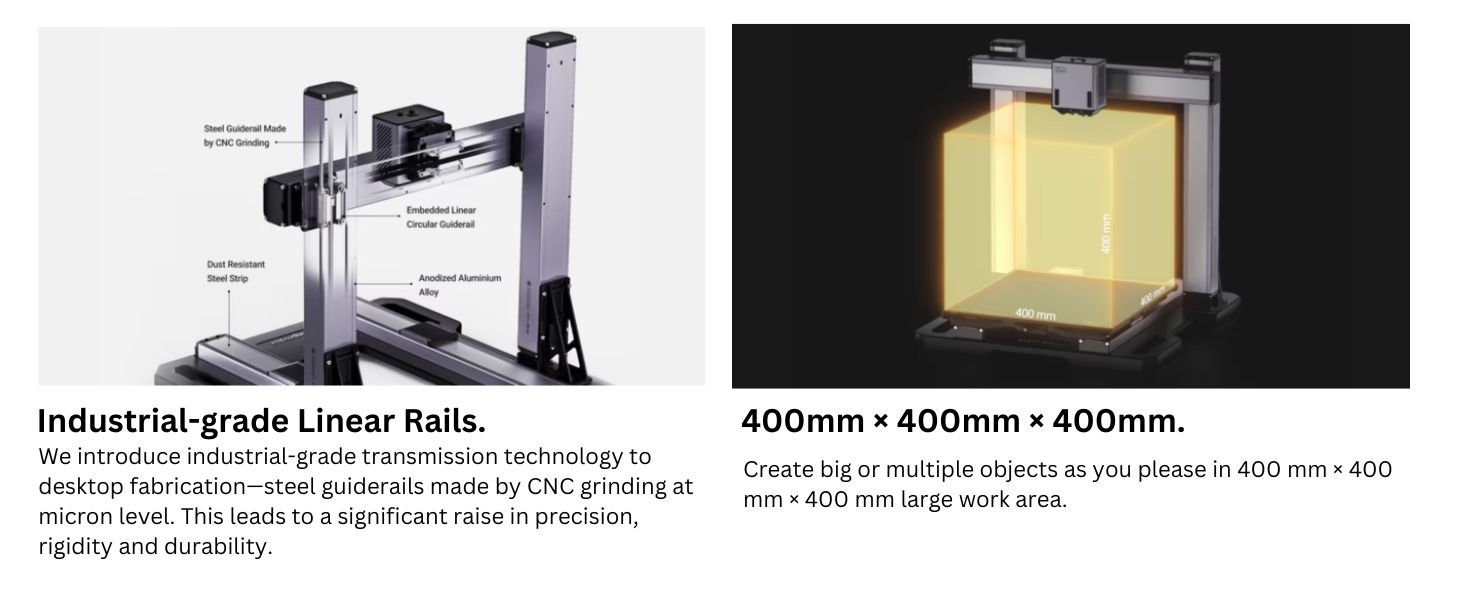

  1.  Industrial-grade Transmission Technology: We introduce industrial-grade transmission technology to desktop fabrication—steel guide rails made by CNC grinding at the micron level are embedded in Artisan's linear modules. This leads to a significant rise in precision, rigidity, and durability, bringing you a fast, accurate, and steady-making experience.

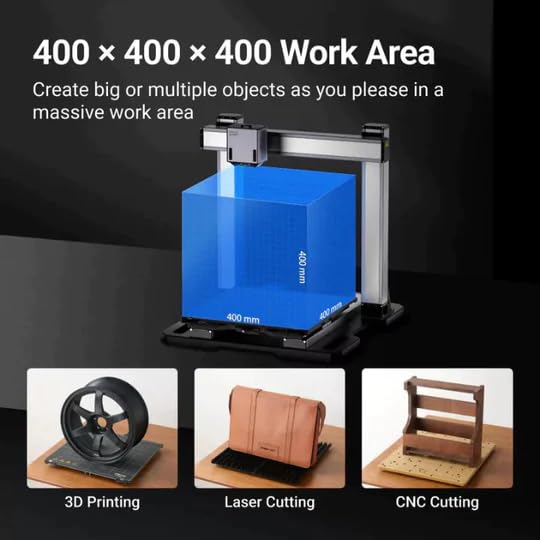

  2.  Bed Size: Create big or multiple objects as you please in a 400 mm × 400 mm × 400 mm large work area

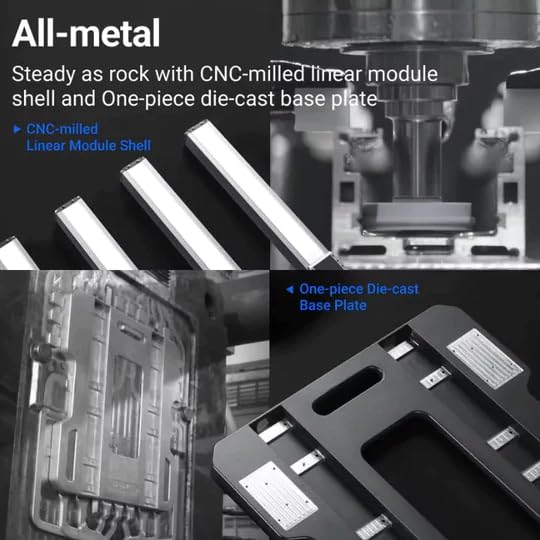

  3.  All-metal. Next Level: While inheriting Snapmaker’s signature all-metal design, Artisan also comes with an upgraded one-piece die-cast base plate in a larger size. It’s as steady as a rock even during high-speed CNC machining.

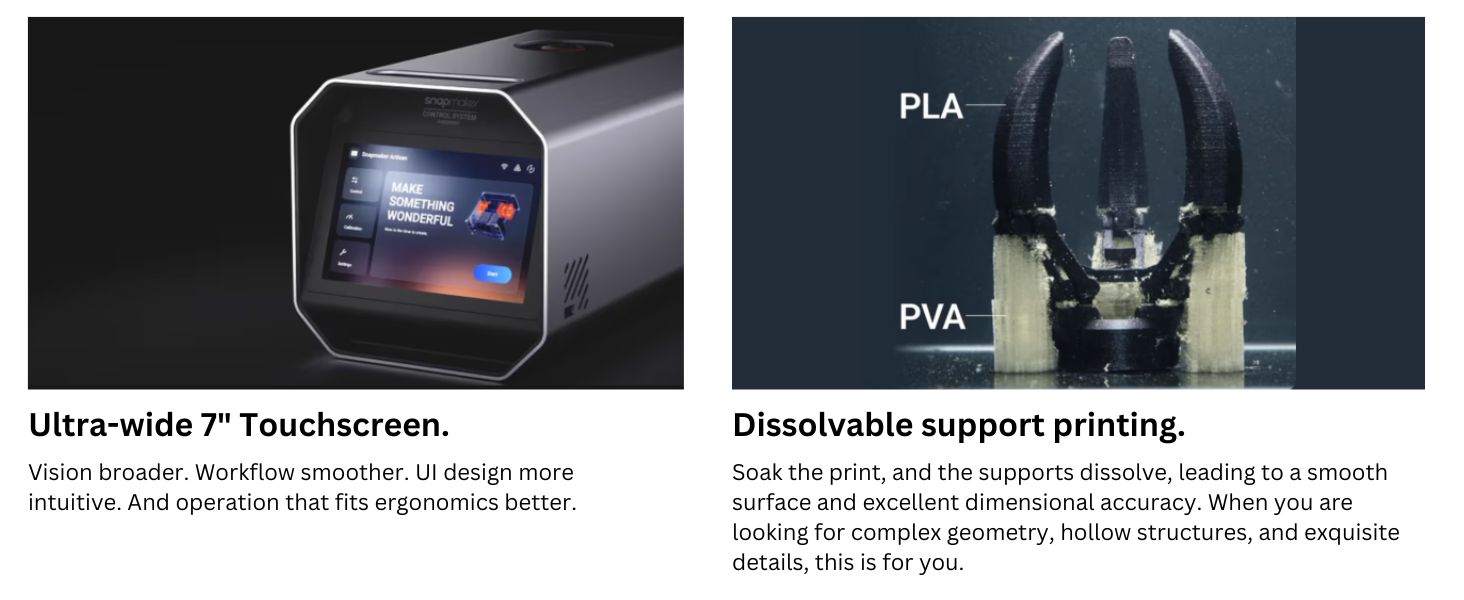

  4.  Ultra-wide 7 Touchscreen for More Room to Play: Vision broader. Workflow smoother. UI design is more intuitive. And operation that fits ergonomics better.
  5.  Fast and Well: Thanks to the optimized transmission system and motion control algorithm, Artisan features ± 0.1 mm dimensional accuracy when printing at a high speed of 180 mm/s.
  6.  Dissolvable Support Printing: Module that supports PVA, HIPS, and other dissolvable materials. Simply soak the print and the supports will dissolve
  7.  Save Time and Power with Zone-heated Bed: A heated bed lies in a 260 × 260 mm high-temperature zone that can reach 110°C, whereas the highest temperature of the outer zone is 80°C.
  8.  Double-sided. Multi-talented: The new build plate is made of glass with higher flatness, ensuring a smoother and more adhesive first layer. It’s glossy glass on one side and PEI coating on the other side, aiding in the adhesion of various filaments.
  9.  More Powerful Laser Engraving and Cutting: Coming with the latest 10W Laser Module, Artisan is capable of faster and deeper cutting on more materials, and delivering refined laser engraving.
  10.  1.6W and 10W Laser Comparison. : can engrave at a speed as high as 6000 mm/min, while cutting through wood as thick as 8 mm in a single pass
  11.  Not Just About Strength, but Finesse: Empowered by the Laser Beam Splitters and beam shaping optics, the laser module features a 10W high power and an ultra-fine laser focus (0.05 mm × 0.2 mm). This allows for high-quality laser works with impeccable details
  12.  Strut Your Stuff and Leave the Rest to Us: The triangulation technology calculates the thickness of materials and completes autofocus in seconds. The wide-angle camera captures your material in one take and lets you get an instant preview of your laser job in Luban.
  13.  More Powerful CNC Carving and Cutting: Equipped with a 200W CNC Module, Artisan further improves the CNC performance, while keeping the ER11 collet, customized clamp sets, and dust-proof design that are highly acclaimed by users, offering you a new desktop CNC experience.
  14.  6X Faster CNC Machining: Compared with Snapmaker 2.0, the CNC module of Artisan has increased by 300% in power and 50% in maximum spindle speed, making it 6 times faster in machining on hardwood like beech.
  15.  0.2 mm Dimensional Accuracy: The high-rigidity linear modules and high-speed spindle empower the CNC module to carve or cut smoothly on various materials, with a dimensional accuracy of up to 0.2 mm
