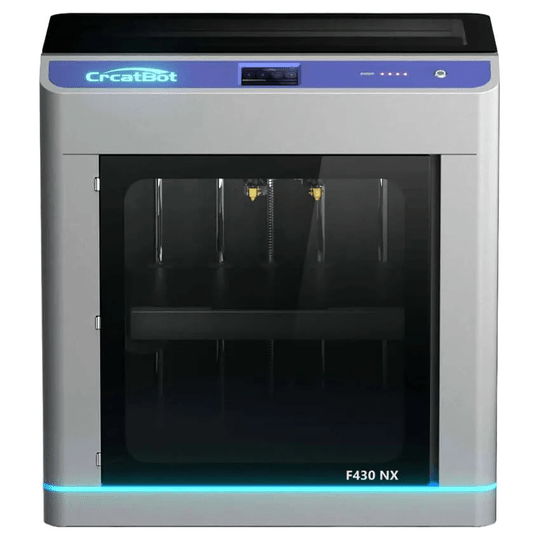

Creatbot F430 NX 3D printer
Rs. 974,999
- High-Temperature Capabilities: Supports PEEK, PEI, and other advanced filaments.
- Large Build Volume: Spacious printing area for large-scale projects.
- All-Metal Hotend: Designed for high-performance materials.
- Dual Extruders: Enables multi-material and multi-color printing.
- Heated Print Bed: Ensures better adhesion and minimizes warping.
- Industrial-Grade Design: Robust and reliable for professional use.
Detail
| Printing technology : | FDM/FFF; |
| Number of extruders : | 2; |
| Printing unit type : | IDEX (independent heads); |
| Construction area : | |
| - printing with one extruder : | 400*300*300 mm; |
| - printing with two extruders : | 340*300*300 mm; |
| - printing in copy mode : | 225*300*300 mm; |
| - printing in mirror mode : | 190*300*300 mm. |
| Maximum nozzle temperature : | 420℃; |
| Accuracy of XY axis : | 0.0127 mm; |
| Z-axis accuracy : | 0.00125 mm; |
| Print speed : | 50-300 mm/sec; |
| Working table : | high temperature flexible magnetic plate; |
| Desktop temperature : | 140℃; |
| Chamber heating : | yes, 70℃; |
| Minimum layer thickness during printing : | 0.2 mm; |
| Nozzle diameter : | 0.4mm (0.3,0.5,0.6,0.8,1.0mm optional); |
| Filament diameter : | 1.75 mm; |
| Printing materials : | PLA、ABS、PA、PC、PTEG、PP、ABS-PC, PET-CF、PET-GF、UltraPA-CF,UltraPA-GF and others; |
| Automatic calibration : | yes; |
| Interfaces : | USB/USB/WIFI/LAN; |
| Filter element : | HEPA; |
| Display : | 5 |
- High print speed: the printer print speed reaches 200-300 mm/sec, which is 4-5 times faster than traditional printers. Full-size
- models can be produced in 3 days;
- Color touch screen: real-time monitoring of the printing process with the ability to adjust print parameters on the fly;
- Titanium nozzles: made using injection molding technology. Titanium alloy is resistant to temperatures up to 500 ° C and has increased resistance to abrasive filaments;
- IDEX with independent print heads: the system is ideal for printing in mirror, copy and support modes. There is also a backup print mode. The printer is equipped with dual all-metal direct extruders;
- Heated chamber: a chamber with an operating temperature of 70 ℃ allows the use of engineering-grade materials such as ABS, PC, ASA, PP, Nylon and others for printing;
- Flexible magnetic platform: The build plate temperature is 140°C and the platform supports printing with a variety of high-temperature engineering filaments.
