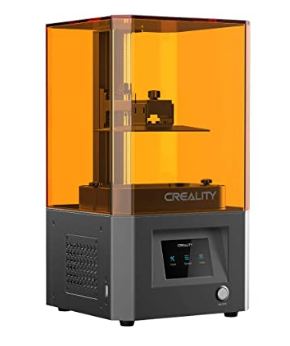

LD-002R

SKU: 3IDEA-CRLT-LD-002R
 18,978

Taxes Included | Free Shipping

LD-002R adopts the "LCD selective area light transmission principle" molding technology. The LD-002R 3D printer integrates many functional technologies in printing accuracy, printing speed and product functions, and has nine high-end configurations, making the new LD-002R available for more market choices


This Product is Out Of Stock......

  •  "BUILD AND MOTION: Great emphasis is being placed on the LD-002R’s robust build quality and the components of its motion system, which is underpinned by a ball screw and single linear rail for the Z-axis.
  •  ANTI-ALIASING: MSLA 3D printers use an LCD screen to mask an image of a layer over a UV light source. Comprised of hundreds of thousands of pixels, each a little rectangle itself, this tech leaves a telltale sign of the edges of these pixels on the print surface. Often barely visible, this effect can be lessened through the use of a digital processing called anti-aliasing, which interpolates between these edges, smoothing the effect out.
  •  QUICK LEVELING: Quick leveling in the sense that the machine will lower the print plate to the vat for you, yes the LD-002R is quick leveling. Four hex screws feature on the print plate — loosen them before dropping the plate, and it will align to the level of the screen. Tighten and you’re good to go. Standard MSLA fare.
  •  PERFORATED PRINT PLATE: Something of an oddity on a small desktop MSLA machine, the Creality LD-002R 3d printer has a perforated print plate. Typically seen on larger bottom-up machines where larger prints present additional pull that might dislodge an improperly adhered print, it’s unusual, and perhaps even distracting overkill, to see it on a smaller machine. It’s not a bad thing, but it makes you wonder why they did it.
  •  AIR FILTER: A small box at the rear of the print chamber contains a pouch of activated carbon. This should help to remove part of the stench of exposed resin from the air.
    Technology : LCD
     Printing Volume : 120 x 65 x 165 mm
    Light Source : 405nm
    XY-axis Resolution : 0.075 mm
    Z-axis Resolution : NA
    Layer Height : 20 – 50 microns
    Printing Speed : 20-30mm/hr
    Power : 72W
    Materials : 405nm UV resin
    Machine size : 221 x 221 x 403 mm
    Display : 3.5 in touchscreen
    Software : ChiTu Box
    Supported files : STL
    Connectivity : USB Port
    Machine weight : 7kg
    :
