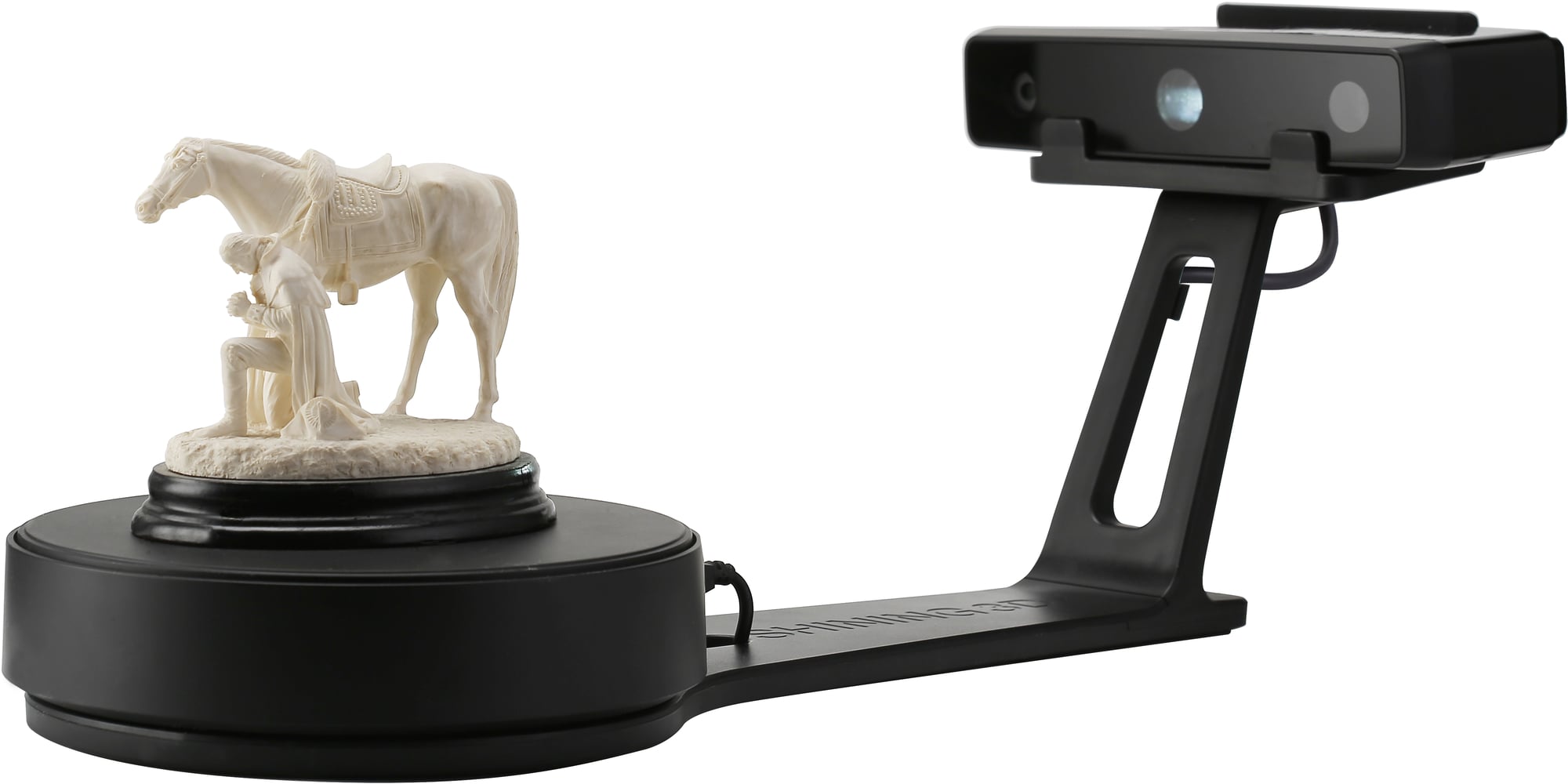

EinScan-SE V2
Rs. 253,563
- Easier operation and higher efficiency
- can perform a single scan in 10 seconds and a complete, 360-degree scan from 1.25 to 2 min, depending on the step size selected for a full rotation of the turntable (from 8 to 180) and the HDR settings used. The multiple scans can be smoothly aligned by the pro dedicated software, besides, there’s an intuitive user interface, making for a swift and easy scanning experience. Moreover, the product is fully compatible with 3D printers, providing API access service for any brand.
- The new EinScan model can be used for a variety of different applications, such as:
- Architecture
- Art and generative design
- Reverse engineering
- Manufacturing
- AR, VR, 3D modeling
- Heritage preservation, artifact restoration
- Science and education
- Healthcare
- Scan volume: 700 х 700 х 700 mm
- One-click operation
- Single scan accuracy: up to 100 microns
This Product is Out Of Stock......
Detail
| accuracy Up to 0.1 mm : | |
| Connectivity USB 3.0 : | |
| Display No : | |
| Manufacturer Shining 3D : | |
| Manufacturer country China : | |
| Outer dimensions millimeters (xyz) 570 x 210 x 210 mm : | |
| Software EXScan S : | |
| Weight kg 2.5 kg : | |
| Technology Structured light : | |
| Alignment Feature, Manual, Turntable : | |
| Camera resolution 1.3 MP : | |
| Computer requirements (recommended) Graphics card : | Nvidia series; Graphics memory > 1G |
| Computer requirements (required) USB : | 1 x USB 2.0 or 3.0; OS |
| Output formats ASC, OBJ, PLY, STL : | |
| Point distance 0.17 mm ~ 0.2 mm : | |
| Rotating table Yes : | |
| Working range 0.29–0.48 m : | |
| Scan volume max 700 x 700 x 700 mm (Fixed Scan); 200 x 200 x 200 mm (Auto Scan) : | |
| Texture / Colors Yes : |
- Easier Operation, Faster Scanning User friendliness : needed for a single scan 8 s-Time needed for a 360-degree scan under auto-scan mode: 2 mins.
- Compatible for Communicating with 3D Printers : Auto meshing to watertight 3D data, providing high quality 3D data for 3D printer, which can be printedby 3D printer directly. Provide API access service for any brand 3D printers
- Automatic Software : Automatic calibration with no rigid set-up required; One-click scanning; Auto alignment and fusion for direct mesh generation;Multiple ways of alignment available turntable, feature and manual alignment provides an accuracy of 0.1mm for a single scan.
- QUALITY : Structured light 3d scanning technology, great power of reconstruction the real geometry of the object with fine detail.
- UPLOAD : Support third-party data sharing platform for access service. One Click Upload for Online File Archiving and Data Sharing
- SAFETY: Visible white light, no laser, eyes secure for children.
- Navigation : Scan accuracy,Scan volume.Scanning tips,Scanner controls,Software
