EinScan Pro 2X 2020
Rs. 1,122,770
- IMPROVE EFFICIENCY OF HIGH-QUALITY 3D MODELING
- Meet the completely new EinScan Pro 2X & EinScan Pro 2X Plus, the next generation of handheld 3D scanners with the latest technology. These new models are based on the feedback from thousands of users and the valuable input of SHINING 3D’s own R&D team. Being faster and more accurate than ever before, the portable versatile EinScan Pro 2X & EinScan Pro 2X Plus will improve the efficiency of high-quality 3D modeling.
- IMPROVE EFFICIENCY OF HIGH-QUALITY 3D MODELING
Detail

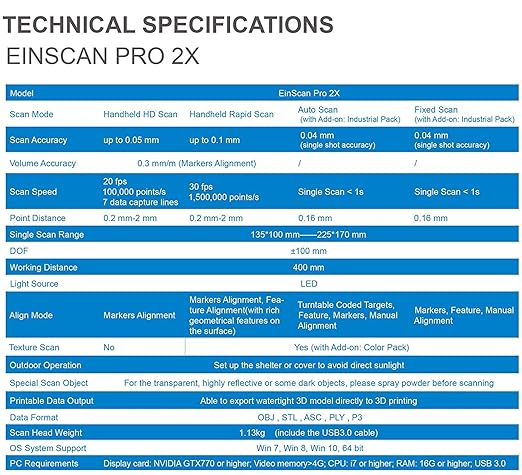

| Specs : | |
| Handheld HD Scan up to 0.05 mm : | |
| Handheld Rapid Scan up to 0.1 mm : | |
| Fixed scan with turntable 0.04 mm (single shot accuracy) : | |
| Fixed scan without turntable 0.04 mm (Single shot accuracy) : | |
| Handheld HD Scan 0.3 mm m : | |
| Handheld Rapid Scan 0.3 mm m : | |
| Handheld HD Scan 20 fps 100,000 points 7 data capture lines : | |
| Handheld Rapid Scan 30 fps 1,500,000 points s : | |
| Fixed scan with turntable Single Scan : | 1 s |
| Fixed scan without turntable Single Scan : | 1 s |
| Handheld HD Scan 0.2 mm-2 mm : | |
| Handheld Rapid Scan 0.2-2 mm : | |
| Fixed scan with turntable 0.16 mm : | |
| Fixed scan without turntable 0.16 mm : | |
| Net Weight 1.13kg (include the USB3.0 cable) : | |
| Supported OS Win 7, Win 8, Win 10, 64 bit : | |
| Recommended configuration Graphics card : | NVIDIA GTX1060 and higher video memory 4G, processor I7-8700 memory 32G interface high-speed USB 3.0 |
| Required configuration Graphics card : | Quadro card P1000 and above or NVIDIA GTX660 and higher processor Intel (R) xeon E3-1230 Intel (R) I5-3470 Intel (R) I7-3770 interface |
| Single Scan Range 135 100 mm 225 170 mm : | |
| Depth of Field 100 mm : | |
| Working Distance 400 mm : | |
| Output Formats OBJ STL ASC PLY P3 3MF : | |
| Light Source LED : |
- New Operation Mode Option: Enhanced Handheld HD Scan Mode and enlarged scan range, is perfect for capturing 3D model of small to medium size objects with high efficiency.
- Scan Speed: Scan Faster than Ever Before: up to 1,500,000 points per second (30 fps) under Handheld Rapid Scan Mode.
- High Accuracy: Single scan accuracy under Fixed Scan without Turntable Mode is up to 0.04 mm. When using markers, the volumetric accuracy under handheld scanning modes is up to 0.05mm+0.3mm/m.
- High Compatibility: Outputs standard file formats includes STL, OBJ, PLY, ASC and P3 (global markers file).Compatible with most mainstream software packages in the market.By saving watertight models, seamlessly connect to 3D printers for 3D printing.
- New Scanning Software EXSCAN PRO with Brand-new UI & Workflow. Solid Edge SHINING 3D Edition - Design Tool From SIEMENS PLM Software.
