Snapmaker Rotary Module 2.0 Artisian/A350/A350T

Brand: Snapmaker
SKU: 3IDEA-SNP-RTRY-MDL
Rs. 58,389
(3 Reviews)

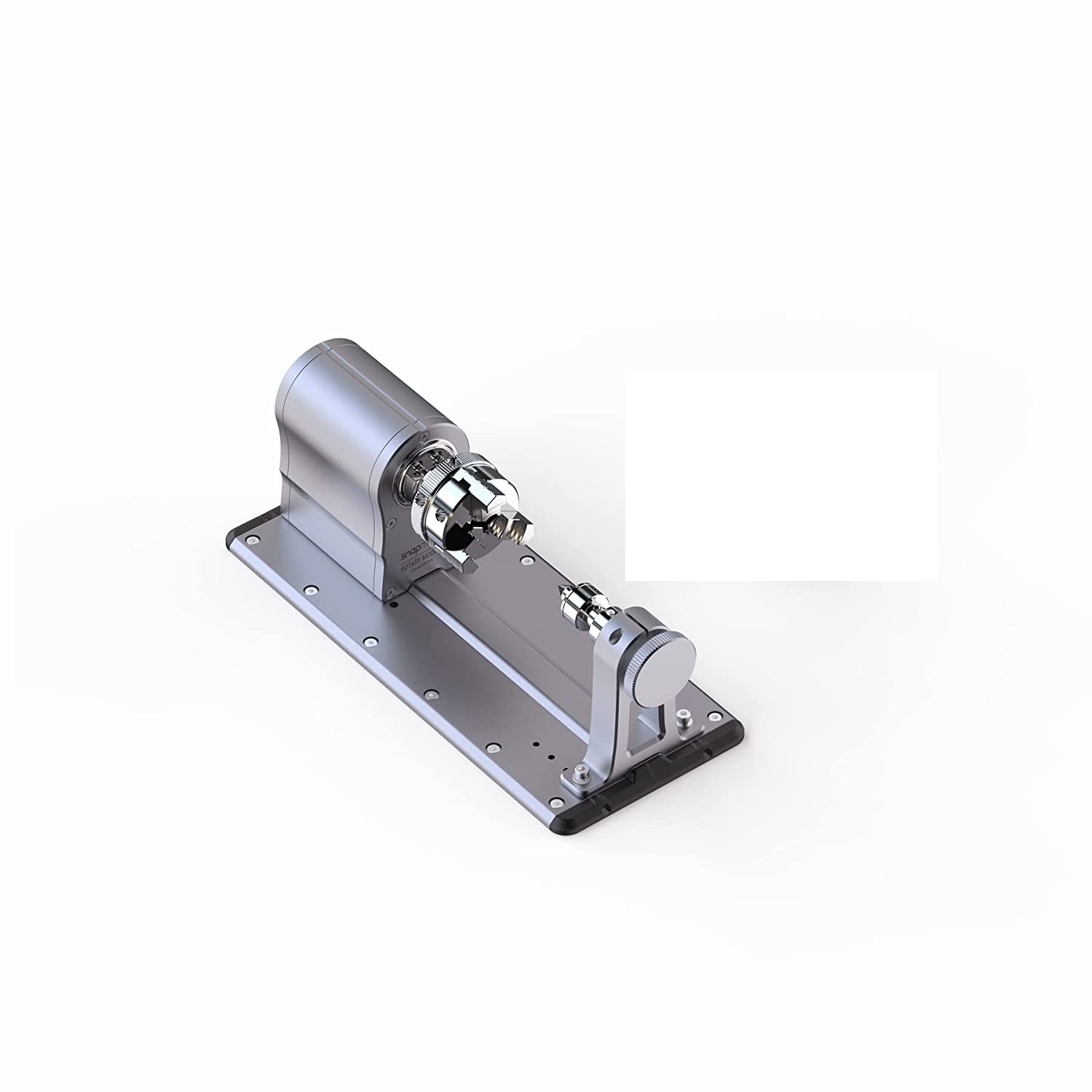

    • The Snapmaker 2.0 Rotary Module adds a 4th axis to your Snapmaker, making it an extremely powerful desktop CNC device.The rotary module is characterised by three-dimensional works of art such as desktop miniatures and small sculptures. Without extrusion, layer shifting, enclosures, or the support of FDM or SLA, the rotation module can achieve a level of detail and craftsmanship that no other 3D printing technology can match.
Add to Cart

Detail

Dimensions : 120 width × 384 depth × 108 height (mm)
Weight : 2.4 kg
Material Length Range : 10-170 mm, with tailstock 10-225mm, without tailstock
Maximum Material Size : 170 length × 68 radius (mm), with tailstock 225 length × 68 radius (mm), without tailstock
Material : Aluminum alloy
Maximum Angular Speed : 45°/s
Rotation Type : 360° continuous
Rotational Speed Conversion : 100
Precision : 0.1° Angle Precision, 0.2° Precise Control
Inward-clamping Range : 1 - 30 radius (mm）
Outward-clamping Range : 10 - 50 radius (mm)
Supported Software : Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire
Supported Materials for CNC : Wood, tooling and modeling board, plastic, bamboo, wax, more being tested
Supported Materials for Laser : Wood, leather, plastic, fabric, paper, non-transparent acrylic
Supported File Types : .stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png

  1.  Desktop 4-axis machining
  2.  Ultra precision machining with strain wave gearing
  3.  Free 4-axis software support
  4.  Intuitive user experience with Origin Assistant
  5.  Auto Focus for laser enabled
  6.  Swappable 3-jaw chuck that can clamp inwards or outwards
  7.  Base plate can be installed on different positions
  8.  Compatible with all current and future Snapmaker 2.0 addons
  9.  Fully utilize features on the enclosure and emergency stop button
