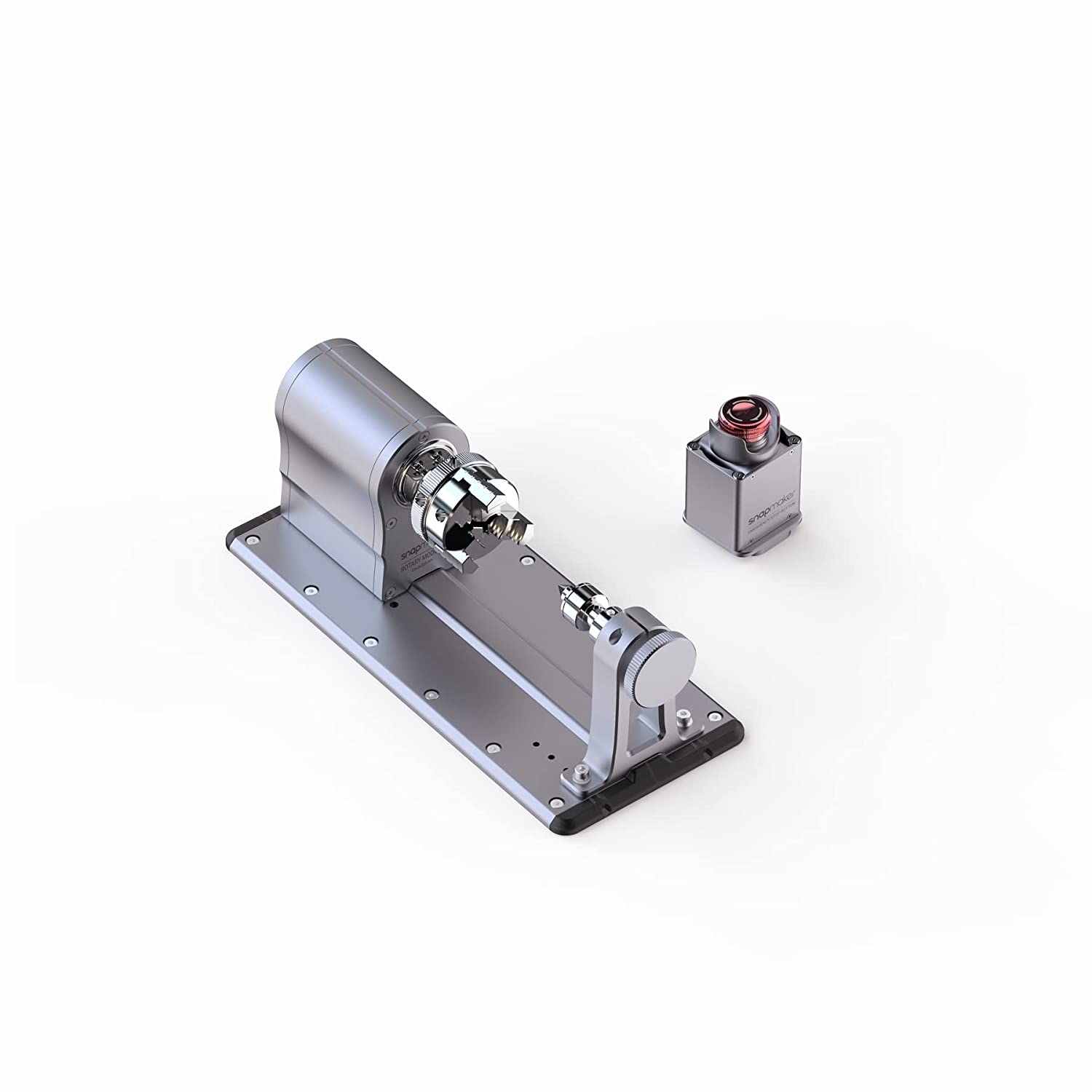

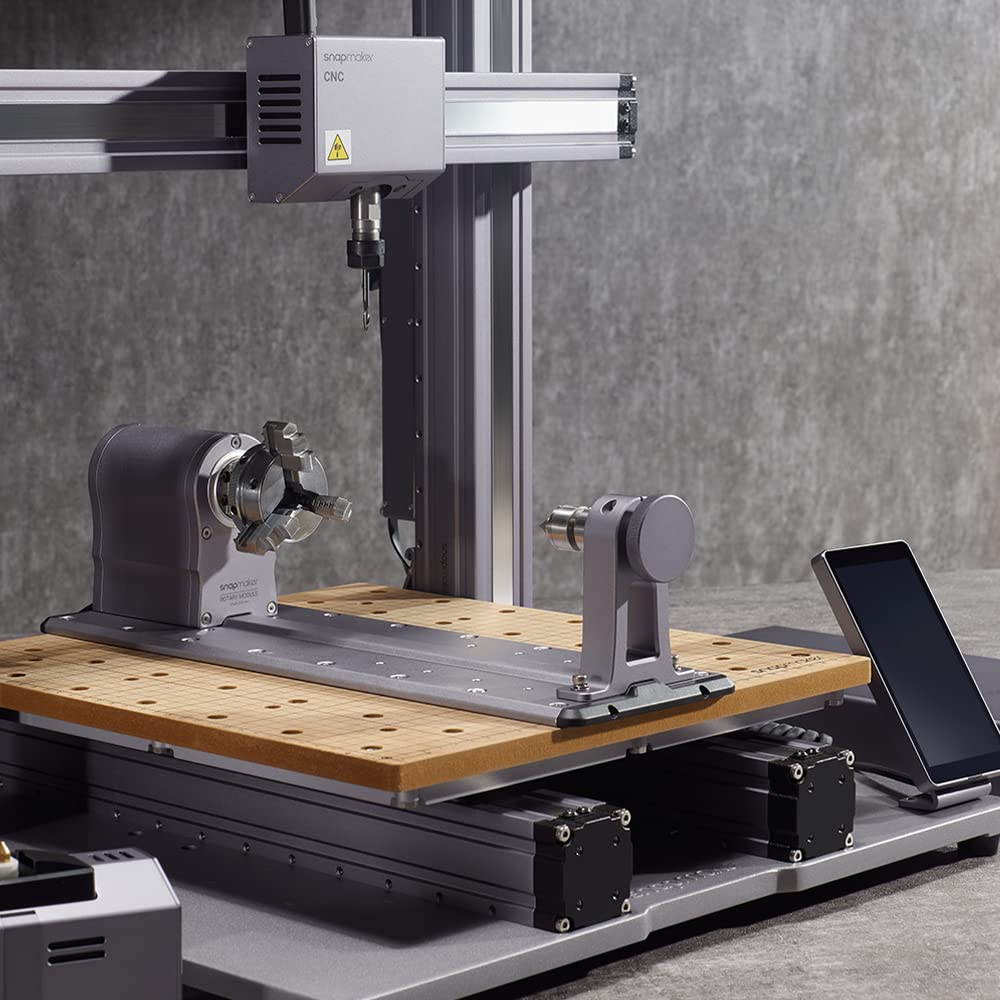

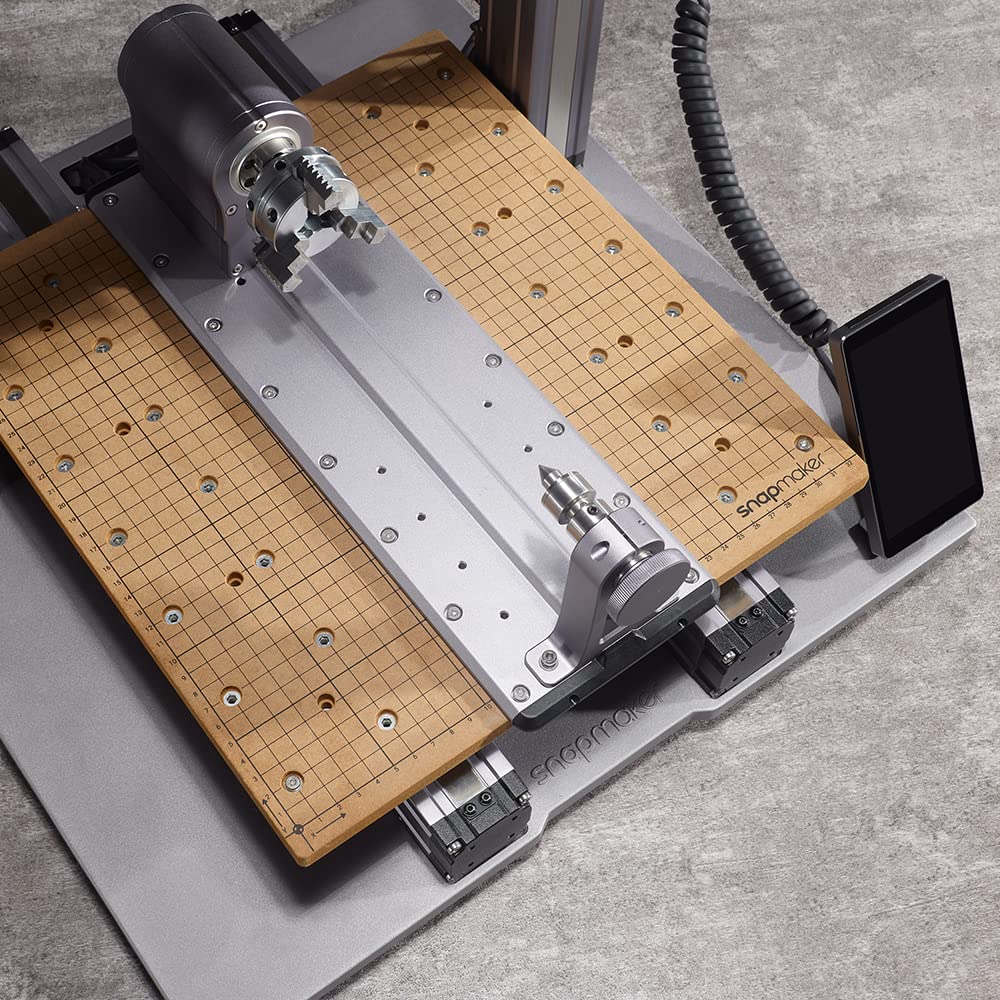

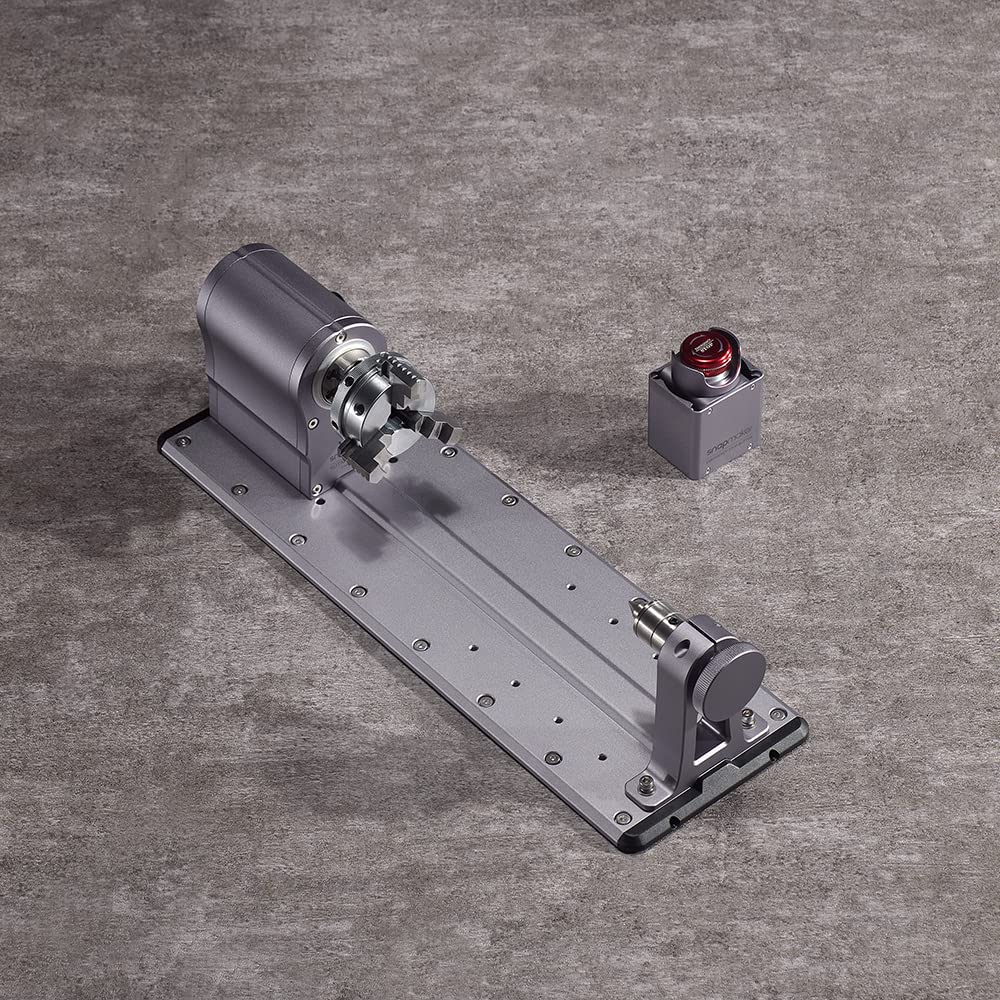

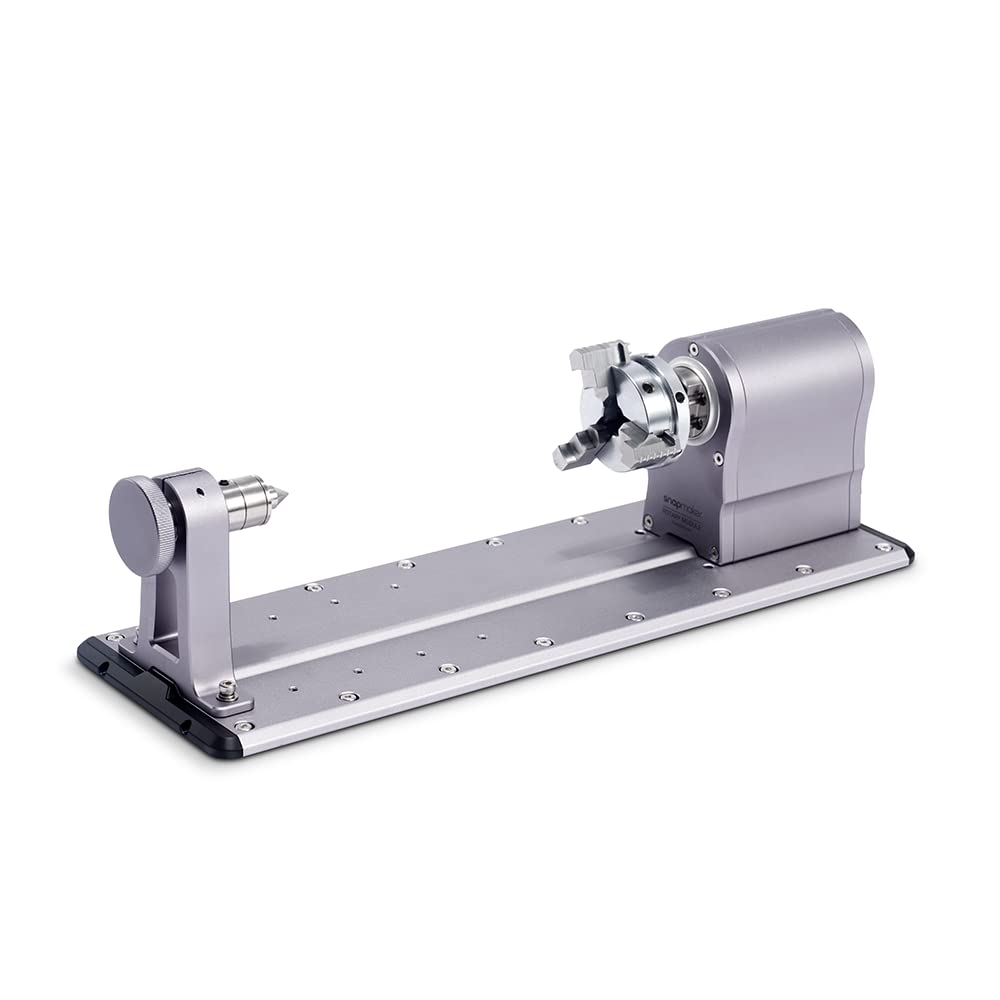

Snapmaker Rotary Module 2.0 Artisian/A350/A350T
Rs. 64,999
- The Snapmaker 2.0 Rotary Module adds a 4th axis to your Snapmaker, making it an extremely powerful desktop CNC device.The rotary module is characterised by three-dimensional works of art such as desktop miniatures and small sculptures. Without extrusion, layer shifting, enclosures, or the support of FDM or SLA, the rotation module can achieve a level of detail and craftsmanship that no other 3D printing technology can match.
Detail
| Dimensions : | 120 width × 384 depth × 108 height (mm) |
| Weight : | 2.4 kg |
| Material Length Range : | 10-170 mm, with tailstock 10-225mm, without tailstock |
| Maximum Material Size : | 170 length × 68 radius (mm), with tailstock 225 length × 68 radius (mm), without tailstock |
| Material : | Aluminum alloy |
| Maximum Angular Speed : | 45°/s |
| Rotation Type : | 360° continuous |
| Rotational Speed Conversion : | 100 |
| Precision : | 0.1° Angle Precision, 0.2° Precise Control |
| Inward-clamping Range : | 1 - 30 radius (mm） |
| Outward-clamping Range : | 10 - 50 radius (mm) |
| Supported Software : | Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire |
| Supported Materials for CNC : | Wood, tooling and modeling board, plastic, bamboo, wax, more being tested |
| Supported Materials for Laser : | Wood, leather, plastic, fabric, paper, non-transparent acrylic |
| Supported File Types : | .stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png |
- Desktop 4-axis machining
- Ultra precision machining with strain wave gearing
- Free 4-axis software support
- Intuitive user experience with Origin Assistant
- Auto Focus for laser enabled
- Swappable 3-jaw chuck that can clamp inwards or outwards
- Base plate can be installed on different positions
- Compatible with all current and future Snapmaker 2.0 addons
- Fully utilize features on the enclosure and emergency stop button
