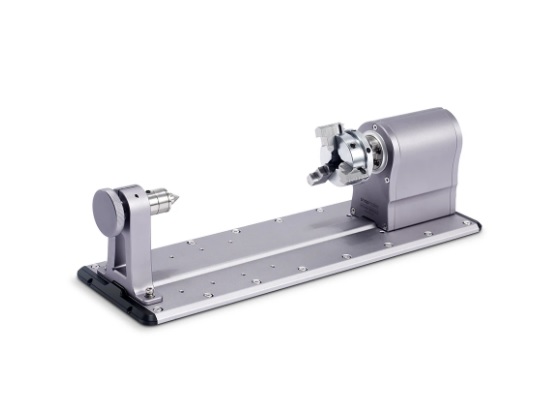

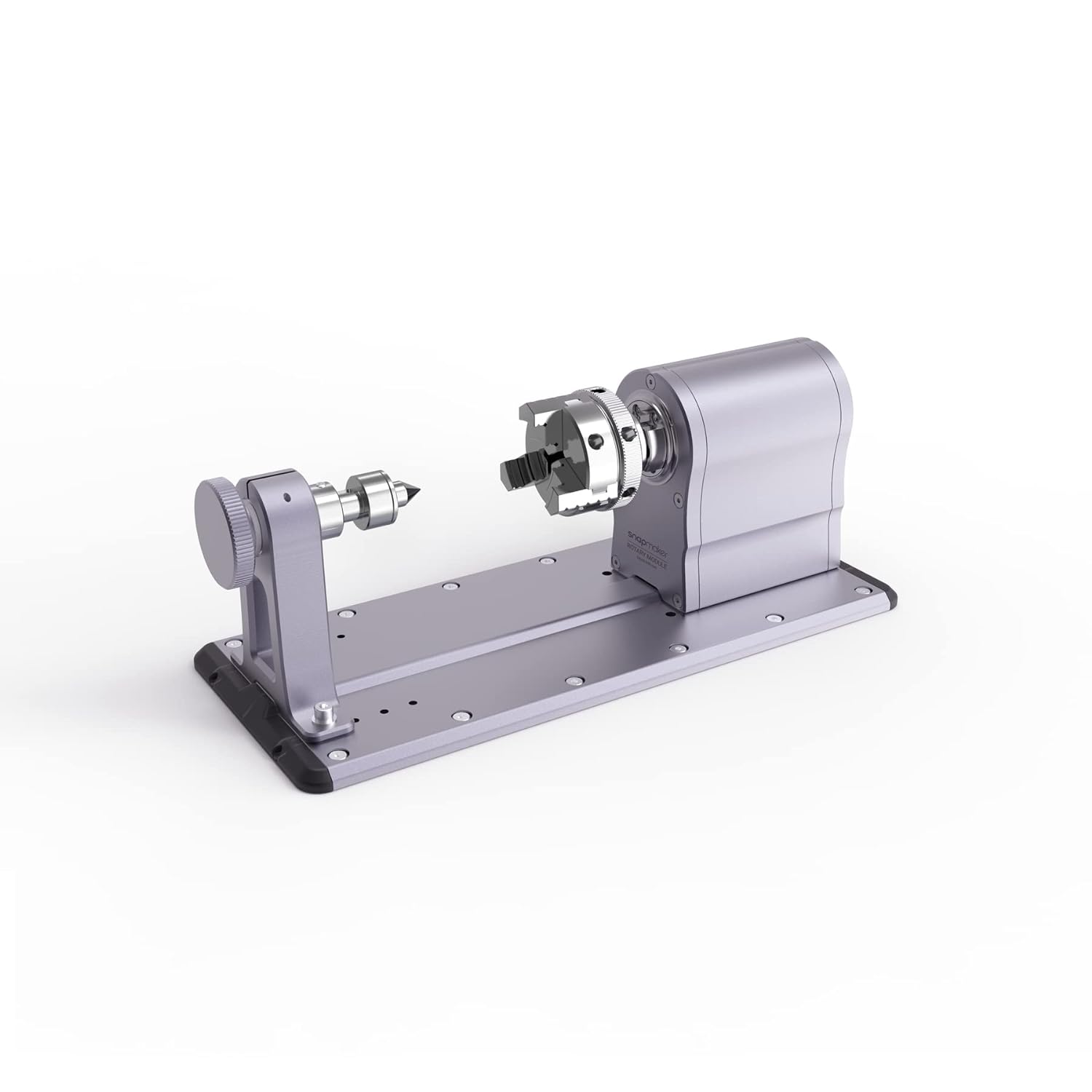

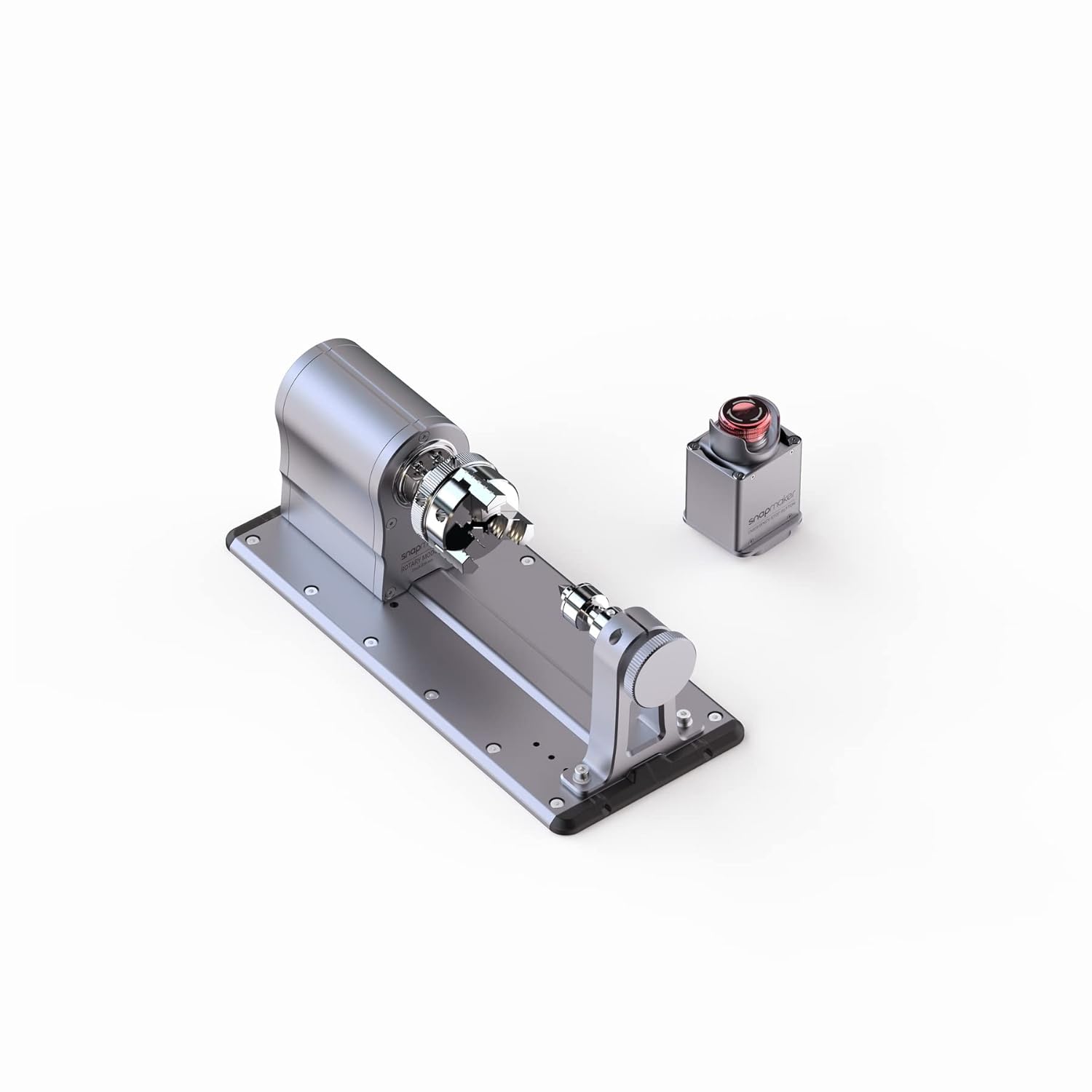

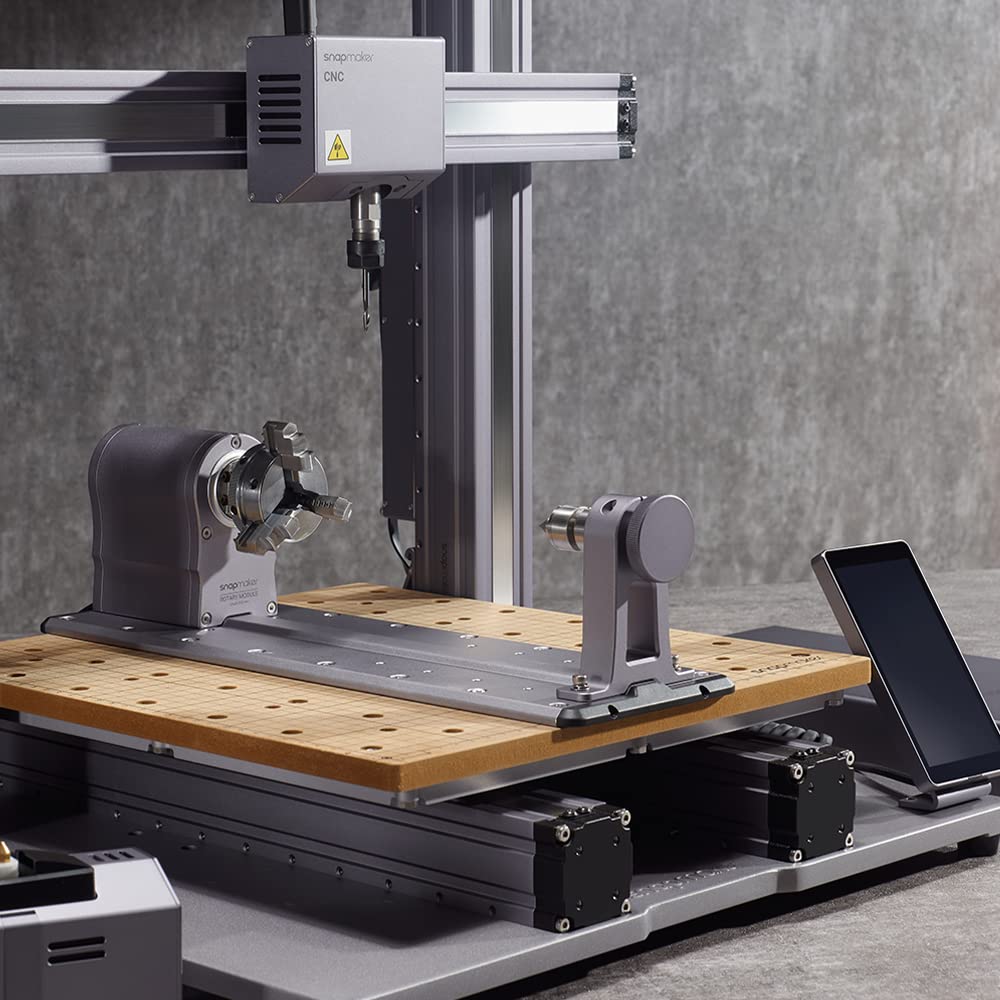

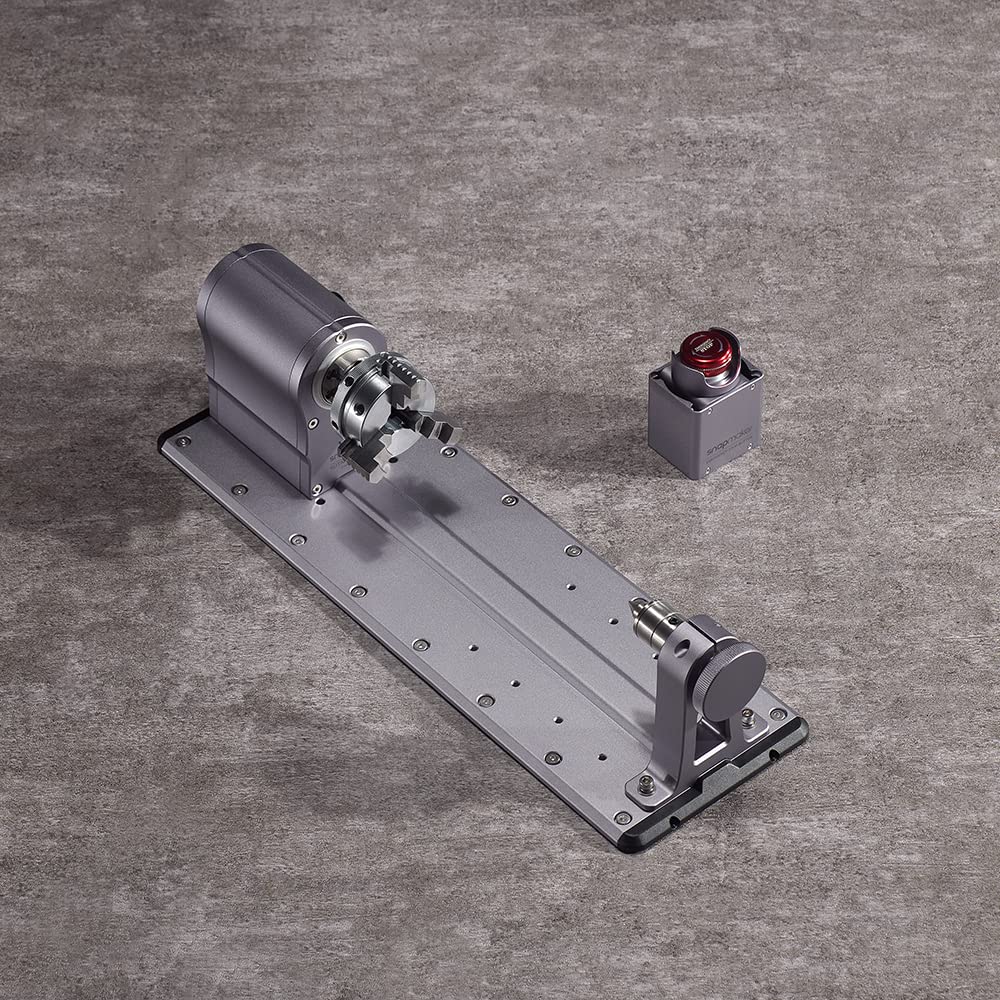

Snapmaker 2.0 A250/ A250T Rotary Module
53,164
Taxes Included | Free Shipping
- Desktop 4-axis machining
- Ultra precision machining with strain wave gearing
- Free 4-axis software support
- Intuitive user experience with Origin Assistant
- Auto Focus for laser enabled
- Swappable 3-jaw chuck that can clamp inwards or outwards
- Base plate can be installed on different positions
- Compatible with all current and future Snapmaker 2.0 addons
- Fully utilize features on the enclosure and emergency stop button.
| Dimensions : | 120 width × 284 depth × 108 height (mm) |
| Weight : | 2.2 kg |
| Material Length Range : | 10-70 mm, with tailstock, 10-125mm, without tailstock |
| Maximum Material Size : | 70 length × 68 radius (mm) with tailstock, 125 length × 68 radius (mm) without tailstock |
| Material : | Aluminum alloy |
| Maximum Angular Speed : | 45°/s |
| Rotation Type : | 360° continuous |
| Rotational Speed Conversion : | 100 |
| Precision : | 0.1° Angle Precision, 0.2° Precise Control |
| Inward-clamping Range : | 1 - 30 radius (mm） |
| Outward-clamping Range : | 10 - 50 radius (mm) |
| Supported Software : | Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire |
| Supported Materials for CNC : | Wood, tooling and modeling board, plastic, bamboo, wax, more being tested |
| Supported Materials for Laser : | Wood, leather, plastic, fabric, paper, non-transparent acrylic |
| Supported File Types : | .stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png |
