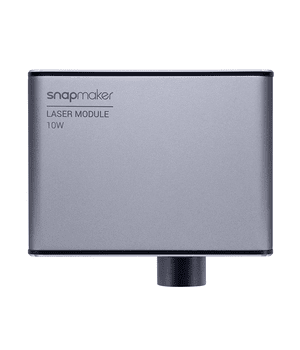

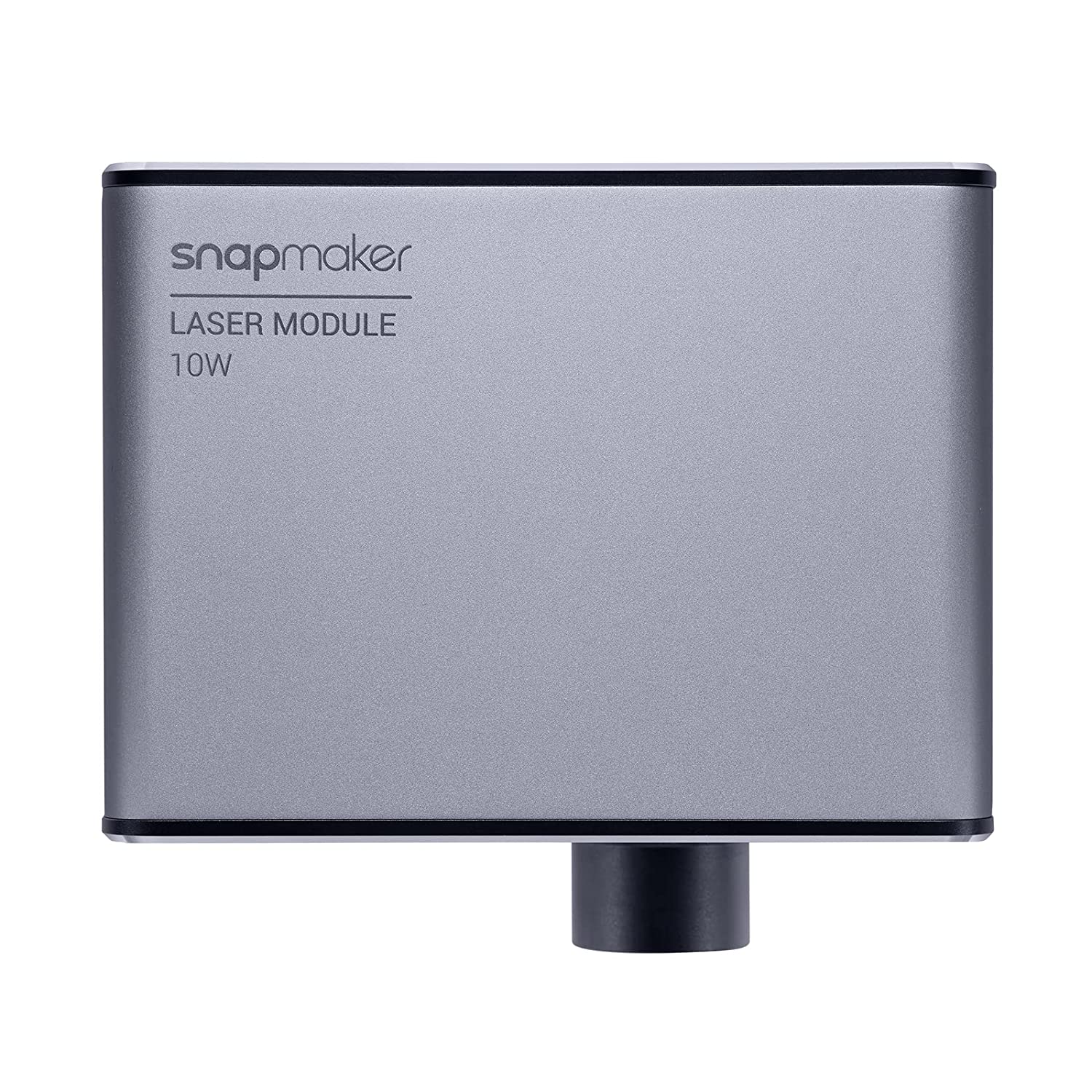

Snapmaker 10W High Power Laser Module

SKU: 3IDEA-SNPMKR-10W-HP-LSR-MOD
 46,689

Taxes Included | Free Shipping

Step up Your Game with the Cutting-edge Laser Beam Splitters. The 10W Laser Module is equipped with the most cutting-edge laser beam splitters, effecting a power leap from 5W to 10W. This means you can now play with a wider variety of materials and hammer out more projects. Meanwhile, the work speed of the 10W Laser Module can be as high as 6000 mm/min, while cutting through basswoods as thick as 8 mm[2]. To put that into perspective, the cutting speed is up to 8 times that of the 1.6W Laser Module[3]. It can literally fulfill a laser job in a blink of an eye. Not Just About Strength, but Finesse. With the Fast-axis Collimating (FAC) lenses embedded in the two laser diodes, the module first compresses the laser spot of each laser diodes. Then it combines the laser beams of the two laser diodes using the beam combining technology, resulting in a higher output power and an ultra-fine laser focus (0.05 mm × 0.2 mm), which allows for higher energy density. Smaller laser focus and higher power deliver high-quality laser works with impeccable details. Get Cracking While We Take Care of the Rest. The unique wind channel inside the 10W Laser Module provides excellent wind pressure, blowing the fumes away as the laser beam cuts into the material, sending the fumes directly into the grids of the Laser Engraving and Cutting Platform, which then get channeled out, reducing their interference on laser machining. Auto Focus in Seconds. No more manual material measuring. Place your material on the platform, and the module will calculate it for you. Thanks to the triangulation technique, the module is able to measure the thickness of your material by obtaining a few sets of data on the camera and light emitter. It will then adjust itself in Z orientation so that the focal point falls right on the material surface[4]. You can finish focusing in a few seconds. Camera Capture Taken to a Whole New Level. With the upgraded camera capture process, the wide-angle HD camera captures in one take your material and lets you get an instant preview in Luban of your laser job on the material. Checking the work area is now completely hassle-free. Tailor-made Software Snapmaker Luban, Making a Pro out of Every Beginner. Using Snapmaker Luban, you can polish your basic skills and master more sophisticated tricks, from simple image transform to setting the right parameters for varying materials, and slicing 3D models into laser cuttable vectors. Orientation Detection, Be Safe While Being Adventurous. To protect the user and any bystanders, we included a gyro sensor in the module, which makes sure that no laser beam comes out if the module is incorrectly installed or deviates from its designated position. A Module of Two Blowing Systems. Prolonged exposure to high temperature will reduce the lifespan of the laser diode. The 10W Laser Module has two separate blowing systems for its PCBA and its laser diode to make sure the diode is properly cooled off whenever you use it. Under proper use, the lifespan can be as long as 8,000–10,000 hours[5]. Overheat Protection, Better Safe than Sorry. The module stops working automatically whenever its temperature sensor detects a higher than normal (one that exceeds 55?/131?) working temperature. Once the temperature falls back into the normal range, you can resume your job on the Touchscreen. Expandability, as Always. The 10W Laser Module is compatible with all models of the Snapmaker 2.0 series apart from the 150 models, and will be compatible with upcoming machines. You can use it with the addons as well, including the Rotary Module, Emergency Stop Button, Air Purifier, and CAN Hub.



  •  • 10W high power

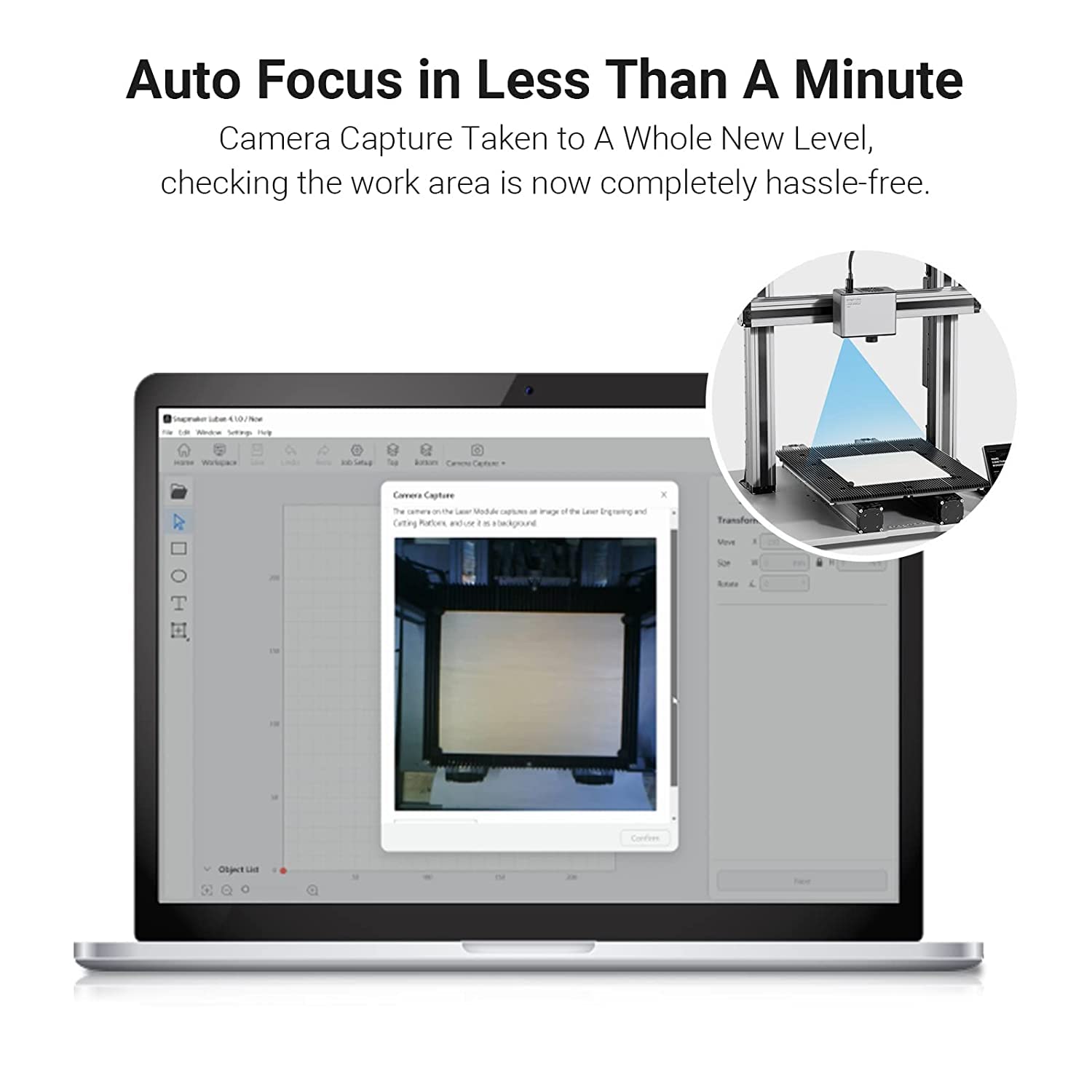

  •  • Auto Focus
  •  • Upgraded Camera Capture
  •  • Tailor-made software
  •  • Supports more than 20 kinds of materials for engraving and more than 10 for cutting

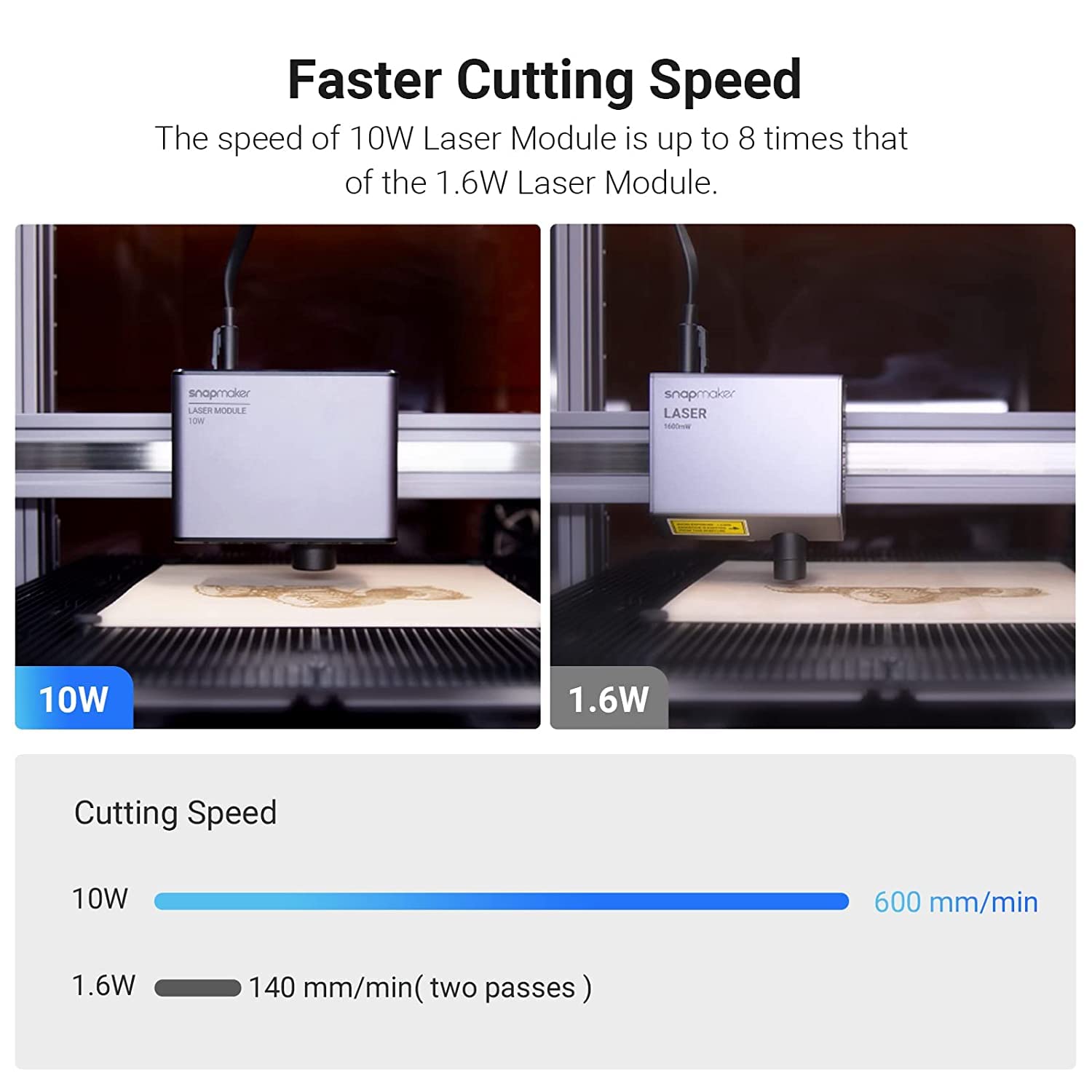

  •  • 8 times the speed of the 1.6W Laser Module
  •  • Maximum cutting depth: 8 mm (Basswood)
  •
  •  • Laser Module: TH-L-P100-W450
  •  • F350 Laser Module Bundle: TH-L-P100-W450+Laser Engraving and Cutting Platform (320 mm × 350 mm)
  •  • F250 Laser Module Bundle: TH-L-P100-W450+Laser Engraving and Cutting Platform (230 mm × 250 mm)
  •
  •  Compatibility:
  •
  •  • Snapmaker 2.0 A350T/A250T, F350/F250 and A350/A250
  •
  •  • This is a class 4 laser product. You should always operate the 10W High Power Laser Module with the Snapmaker 2.0 Enclosure covered.
  •  • F350/F250 model users need to choose the bundle of the 10W High Power Laser Module and Laser Engraving and Cutting Platform according to your machine's model.
    Snapmaker 10W High Power Laser Module :
    Model : TH-L-P100-W450
    Laser Power : 10 W
    Laser Type : 450–460 nm Semi-conductor
    Input Voltage : 24 V
    Laser Class : Class 4
    Maximum Work Speed : 6000 mm/min
    Operating Temperature : 0?–35?
    Laser Spot Dimensions : 0.05 mm × 0.2 mm
    Work Area : 320 mm × 350 mm (A350/A350T/F350)
    :
    230 mm × 250 mm (A250/A250T/F250) :
    Dimensions : 114 mm × 102 mm × 60 mm
    Weight : 0.63 kg
    Frame Material : Aluminum alloy
    Data Transmission : Wi-Fi, USB cable, USB flash drive
    Supported Materials for Engraving : Pinewood, plywood, beechwood, walnut, bamboo, MDF, painted metal, copper clad laminate, SPTE, stainless steel, anodized aluminum, acrylic, dark glass, slate, brick, ceramic, jade, marble, shale, leather, fabric, canvas, corrugated fiberboard, cardboard
    Supported Materials for Cutting : Pinewood, plywood, beechwood, walnut, bamboo, MDF, black and red acrylic, leather, fabric, canvas, corrugated fiberboard, cardboard
    Supported Formats : .stl, .svg, .png, .jpg, .jpeg, .bmp, .dxf
    Laser Engraving and Cutting Platform (320 mm × 350 mm) :
    Dimensions (each piece, W × D × H) : 80 mm × 264 mm × 8 mm
    Weight (each piece) : 170 g
    Material : Aluminum alloy
    Laser Engraving and Cutting Platform (230 mm × 250 mm) :
