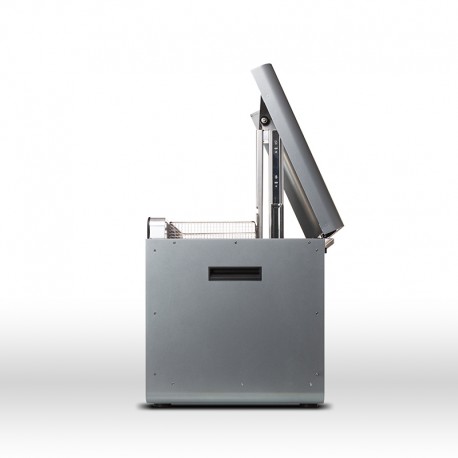

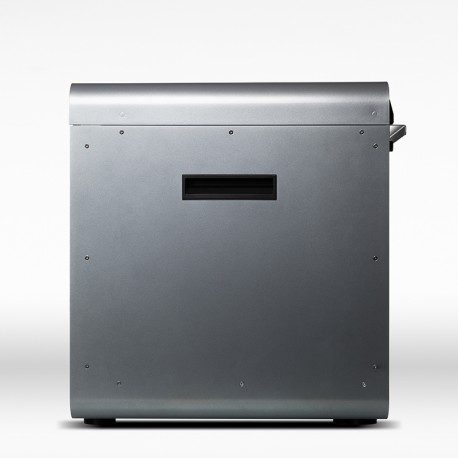

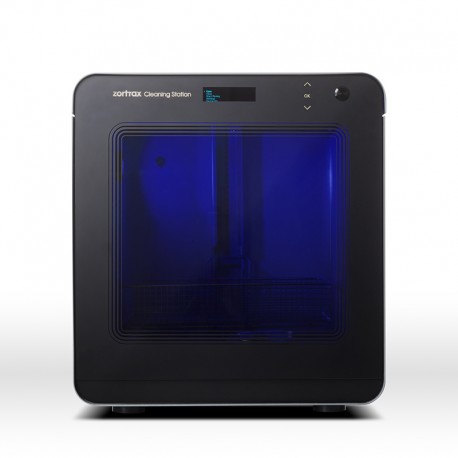

Zortrax Cleaning Station
Rs. 498,999
- Zortrax Cleaning Station is a device made
- to remove excessive, unsolidified resin from
- the model’s surfaces. The entire cleaning
- process lasts for about 5 minutes and is fully
- automated. This is a standalone device that
- can be used to support all types of resin 3D
Detail
| Device : | |
| Tank dimensions 300 x 210 x 270 mm (11.8 x 8.27 x 10.6 in) : | |
| Basket dimensions 320 x 230 x 70 mm (12.6 x 9.1 x 2.8 in) : | |
| Filters : | |
| Two mechanical filters : | |
| • polypropylene cartridge (1 micron) : | |
| • stainless mesh cartridge with UV lighting (150 microns) : | |
| Security • excessive cleaning fluid level sensor : | |
| • flow meter preventing operation without the cleaning fluid in the system : |
- Supports most popular resin 3D printing technologies like UV LCD, DLP, and SLA.
- The impeller-based cleaning system: The impeller reduces the risk of damaging
- precise, fragile prints. The entire cleaning process lasts for about 5 minutes

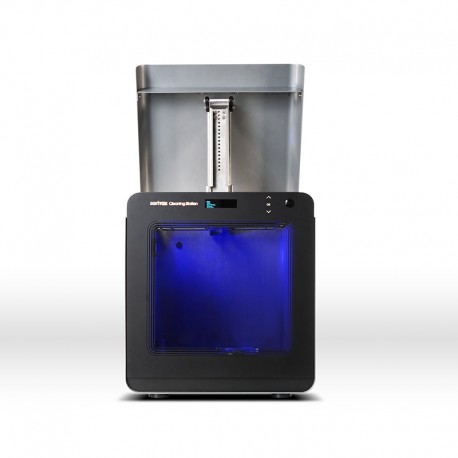

- and is fully automated. When it is done, the top cover opens up and the build
- platform with clean prints is moved out of the cleaning fluid.

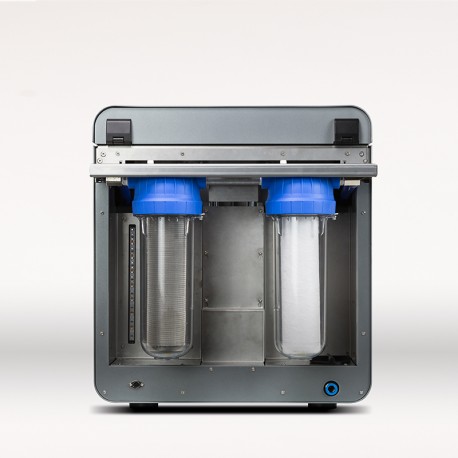

- Filtering system: Due to filters constantly working in the Zortrax Cleaning Station,
- the isopropyl alcohol can be reused in multiple cleaning sessions.
- The build platform holder in the Zortrax Cleaning Station is compatible with
- the Zortrax Inkspire 2 build platform which enables placing the printed models
- in the device without touching them.
- Zortrax Cleaning Station does not need calibration before first use
