Two Trees 500w High Speed Air Cooled Spindle Motor
Rs. 16,849

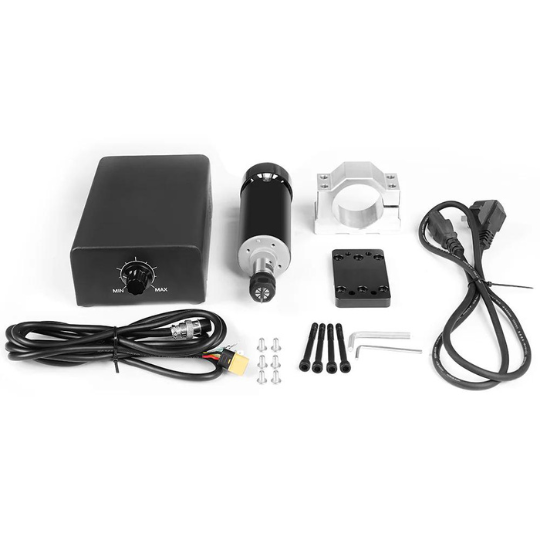

- This is Two Tree – 500W Air Cooled Powerful Spindle Motor. The Two Trees – 500W Air Cooled Powerful Spindle Motor Kit is a versatile and powerful spindle motor assembly designed for various CNC (Computer Numerical Control) and engraving applications. This kit includes the spindle motor, a spindle mount, a speed controller, and additional accessories.

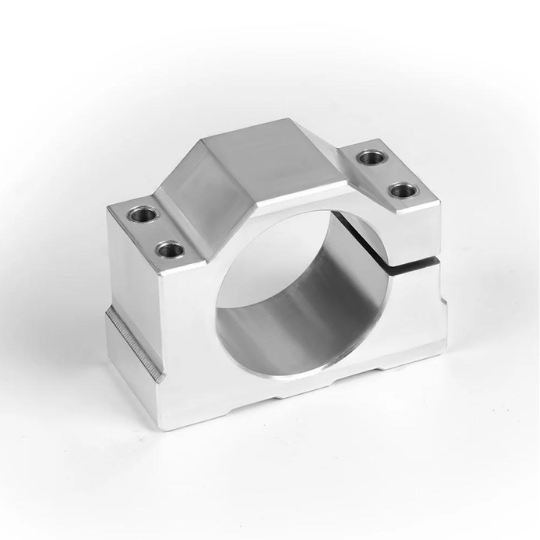

- It can be used to engrave metal or non-metal and other materials. This spindle comes with forced air cooling, which can work for a long time. The Spindle motor bracket clamp is made of high-quality cast Aluminum, which is robust and durable.
Detail
| Item Type : | Engraver Accessory |
| Compatibility : | TTC 450 |
| Power : | 500W |
| Speed (RPM) : | 12000 |
| Operating Voltage (VDC) : | 100 |
| Motor Length (mm) : | 199 |
| Dielectric Strength : | 400V |
| Insulation Resistance (MΩ) : | > 2 |
| Length (mm) : | 190 |
| Width (mm) : | 120 |
| Height (mm) : | 64 |
| Shipping Weight : | 3.1 kg |
| Shipping Dimensions : | 28 × 27 × 10 cm |

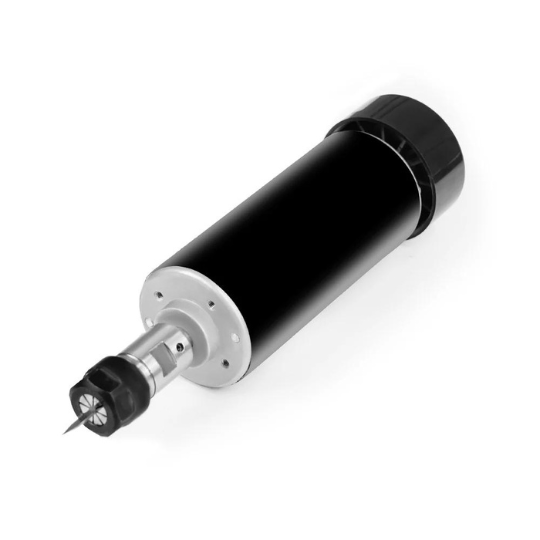

- 500w High-Speed Air Cooled Powerful Spindle Motor

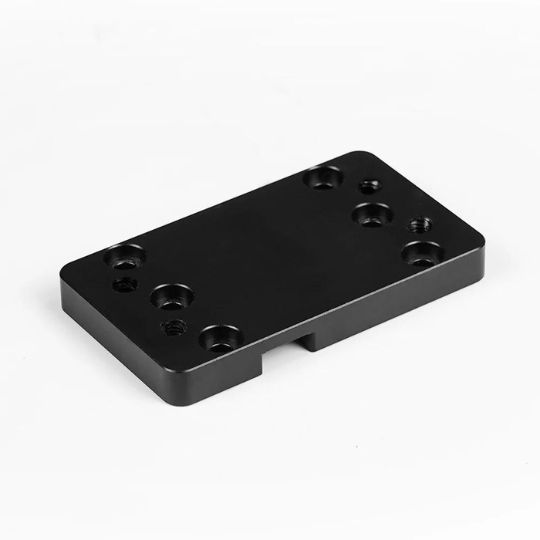

- Mounting Connection Plate is suitable for TTC 450 CNC Router Machine
- Long life, Low maintenance costs.
- Input: AC110V, Idling Speed: 12,000 rev / min, Torque: 0.6N.m.
- Insulation Resistance:> 2 Megohms, Dielectric Strength: 400V.
- High Precision Spindle Run Out 0.01-0.03.

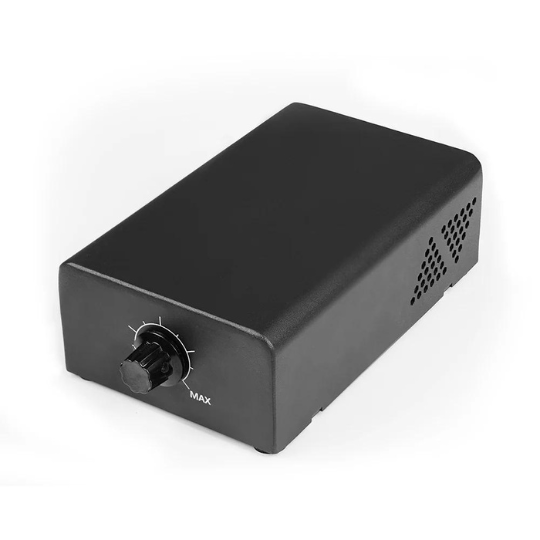

- DC Switching Power Supply: Input Voltage: 110V / 220V AC, Current: 0-12.5A,
- Input Frequency: 50/60Hz, Output Voltage: DC 48V, (Please Install in the Place that is Draughty)
- No Dramatic Impact, No Vibration, No Explosion Hazard Medium, No Conductive Metal Particle.
- Net weight of spindle: 1.4KG
