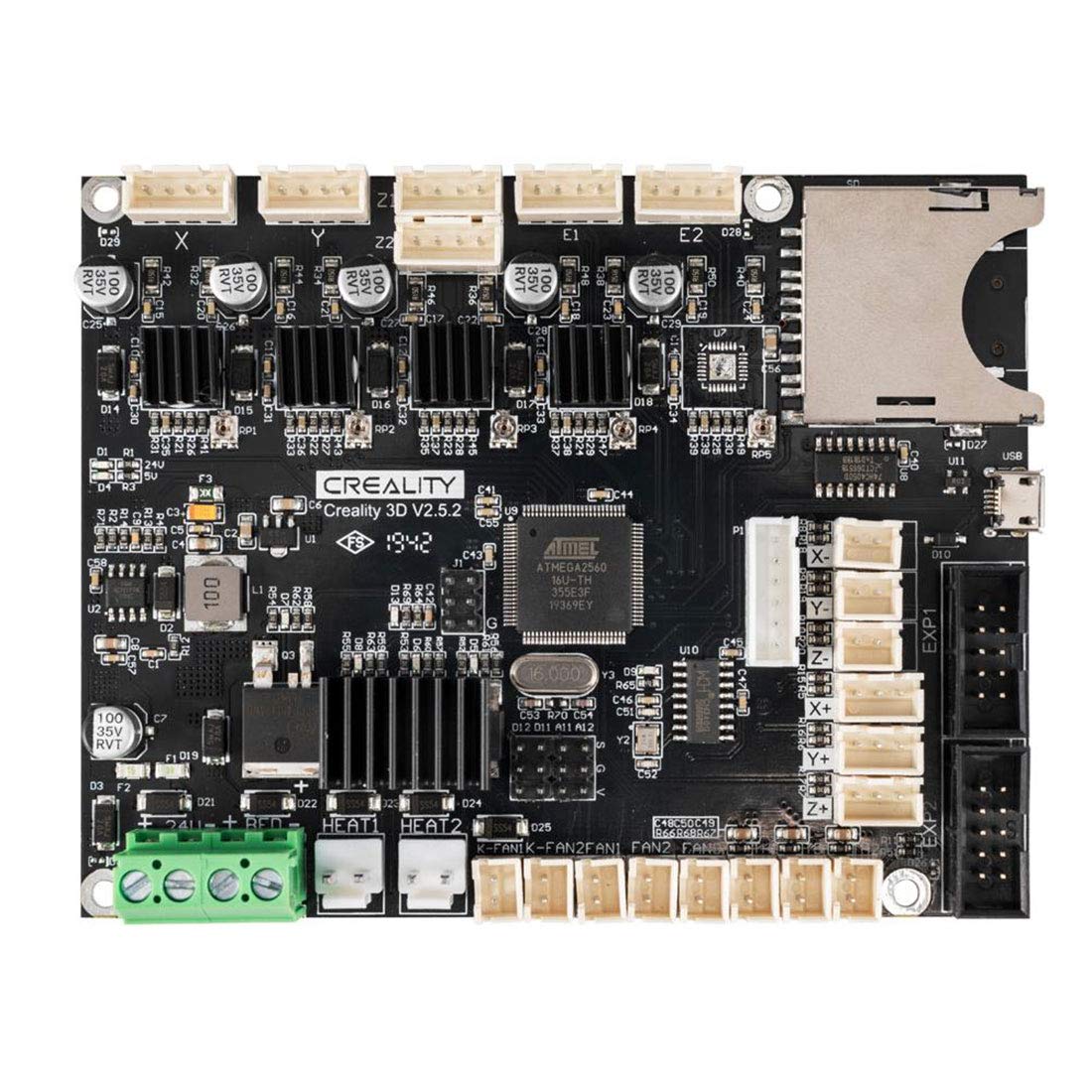

Creality CR-10S/ V2/ V3 Silent Motherboard V2.5.2
Rs. 6,239
- This Creality V2.5.2 Motherboard comes pre-flashed with Creality CR-10 V2 firmware, to make repairs and replacement as simple as possible for you.
- Replacement Motherboard for Creality CR-10S/ CR-10 V2/ CR-10 V3
Detail
| User Interfacing Method: | –Micro USB, SD Card (Full Size) |
| Firmware Version: | V2.5.2 |
| Onboard Stepper Drivers: | TMC2208 Silent Stepper Drivers |
| 3D Printer Axis Support : | E1 / E2 / X / Y / Z1 / Z2 |
| Additional Ports: | Touch Screen Port– 12864 Screen Ports (EXP1 and EXP2) – X+ / X- / Y+ / Y- / Z+ / Z- Limit Switches – Fan1 / Fan2 / Fan3 / K-Fan1 / K-Fan2 – Heatbed / Thermistor1 / Thermistor2 – Heat1 / Heat2 |
| Operating Voltage: | 24V DC |
| Packing Size: | 150×115×45mm |
| Product Size: | 115*90*20mm |
- Creality Original Motherboard: To replace failed board
- With USB port
- Easy to use - Can be used with E/Z/Y/X drive axis
- Effectively solve the heat problem, with special power chip, support 24V input voltage
- Material: PCB
- CR-10 V2/V3 Silent Mainboard_V2.5.2_8-bit_TMC2208_ATM2560
