Meanwell Power Supply LRS 75-24, 85-264V CE CB UL 3C
Rs. 4,179

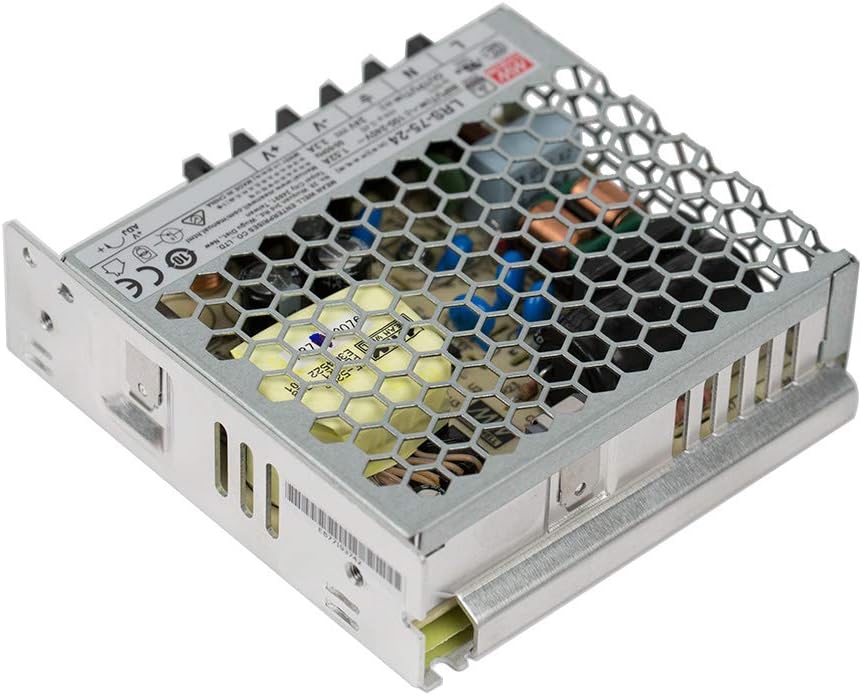

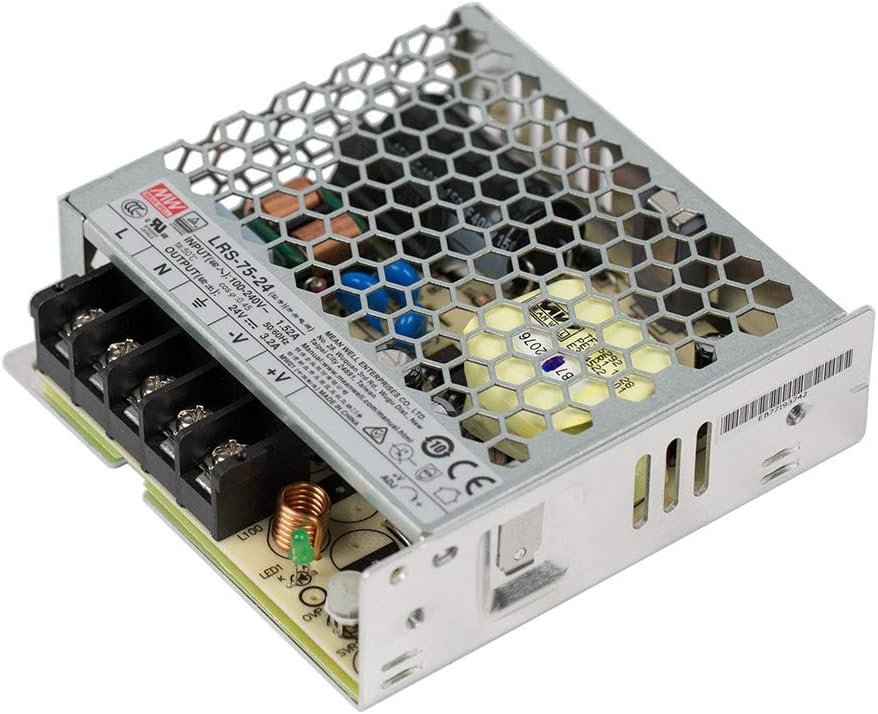

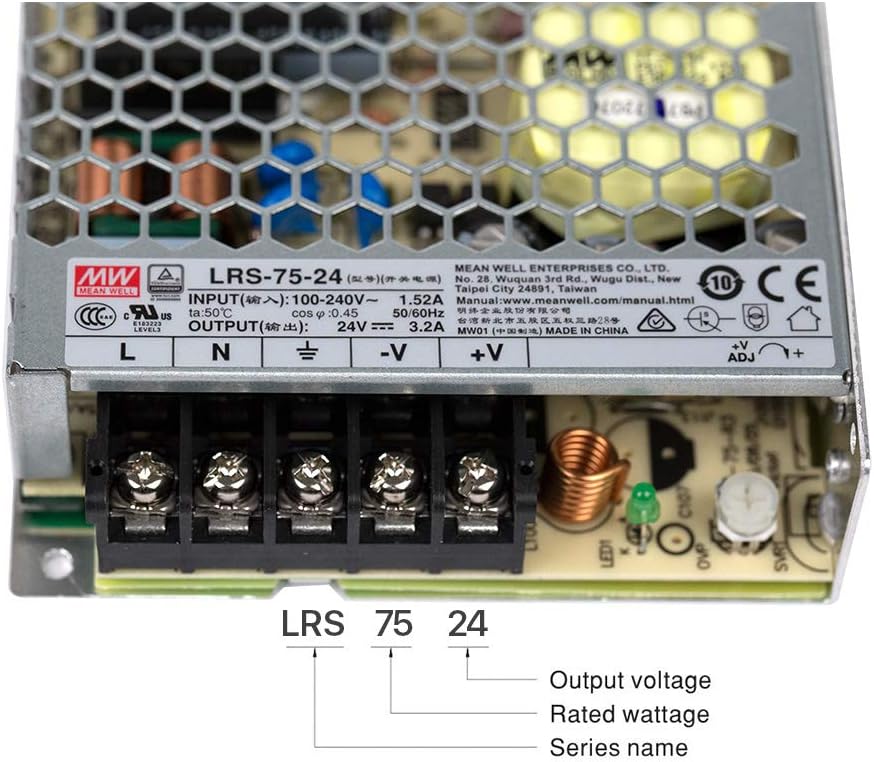

- Meanwell LRS-75-24 Switching Power Supply Single Output Switching Power Supplies are 75W enclosed-type power supplies with a 30mm low-profile design.
- With a full 85VAC to 264VAC input range, the LRS-75 power supplies provide an output voltage line of 5V, 12V, 15V, 24V, 36V, and 48V.
Detail
| Output Voltage: | 24 V DC |
| Rated Current: | 3.2A |
| Rated Power: | 76.8W |
| Input Voltage: | 85 ~ 264VAC |
| Efficiency: | 90% |
| Packing Size: | 190×125×80mm |
| Gross Weight: | 315g |
| Net Weight: | 220g |
- Universal AC input / Full range
- Protections: Short circuit / Overload voltage
- Cooling by free air convection
- High efficiency, long life, and high reliability
- LED indicator for power on
- Overvoltage category III 100% full load burn-in test
