Can identify day and night: It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 2m and high sensitivity could be 16m which fits for large room.
Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
Time–Delay is adjustable. It can be set according to the consumer’s desire. The minimum time is 10sec±3sec. The maximum is 12min±1min.
NOTE: the high-frequency output of the HF sensor is <0.2Mw- that is just one 5000th of the transmission power of a mobile phone or the output of a microwave oven, the baby can't touch it.
Descriptions

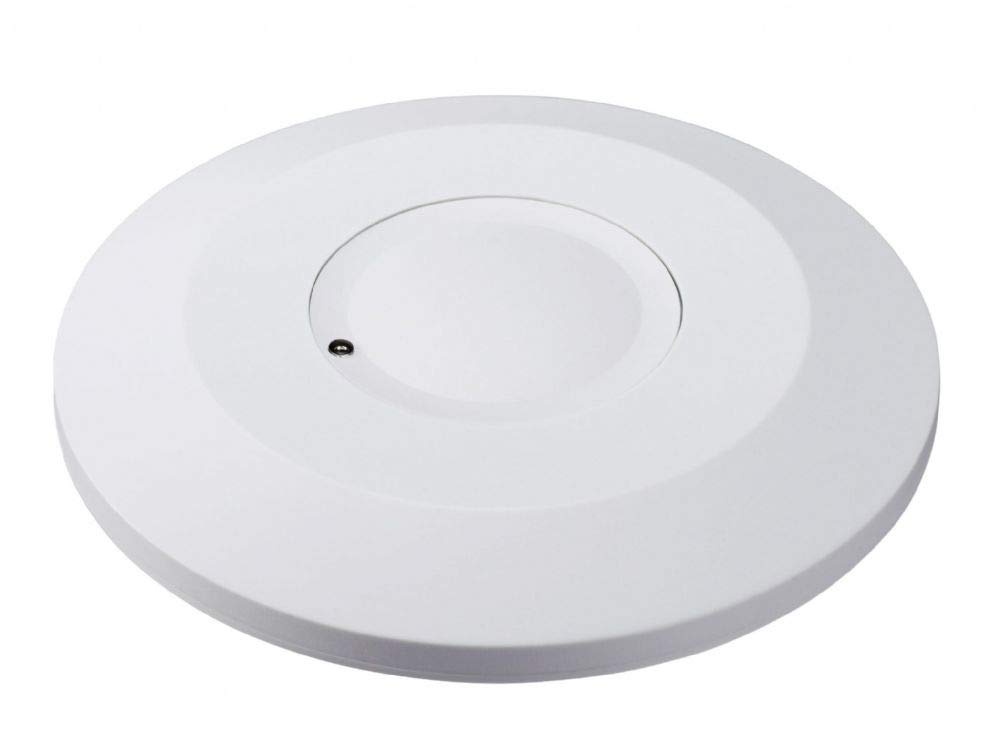

3 idea high frequency sensor is a smart and fully functional power saving switch that uses microwave sensor mould with high-frequency electromagnetic wave and an IC.
It works by detecting motion, when someone enters a detection field it sends an electrical signal to the lights to turn it ON and turns it OFF after a pre-set delay time.
Detects Day and Night
This sensor can identify day and night.
Accordingly it can be set in the convenient position to work in daytime and night time, or in ambient light less than 3LUX when set in the “3†position.
Just refer the test pattern for this adjustment.
360° Detection Range
The sensor has an all-round detection angle of 360.
Therefore it can sense movement from any direction.
Users can set the detection distance from a minimum of 02 metres to a maximum of 16 metres.
Delay Timer
Delay function can be enabled by the user.
In this mode it can remain ON even after the person has left the detection field.
It can even add up to the time delay continually by restarting the time every time it receives an induction signal.
Energy Saving
This sensor can act as an automatic switch when set up indoors.
It uses microwave signals and Doppler effect to detect when there is a movement within its radius and turns ON the light immediately and turns it OFF when the movement stops.
Easy Installation
Just remove the upper cover with an anti-clockwise whirl.
Connect the power and the load according to the wire diagram.
Fix the sensor on the selected position.
Install the upper cover on the sensor.
You are ready to switch ON the power and test it.
Safe to Use
The output of this high frequency sensor is less than 0.
2mW.
It is 5000th of the output of a standard microwave oven or the transmission power of a mobile phone.
Thus, it is safe to be used in almost any environment.
