Twotrees TTC6050 CNC Router Machine
Twotrees TTC6050 CNC Router Machine
Twotrees TTC6050 CNC Router Machine
Twotrees TTC6050 CNC Router Machine
Twotrees TTC6050 CNC Router Machine

Twotrees TTC6050 CNC Router Machine

₹132086.00

Twotrees TTC6050 CNC Router Machine
Product Features

• Large 600×500×100mm Carving Area (23.6""×19.7""×4"")

• 500W Air-Cooled Spindle (Upgradable to 800W) - Processes wood, plastic, soft metals at up to 5000mm/min

• Multi-Function 3.5-Inch Color Touchscreen - 8-language interface

• Dust-Proof Drive Design - Sealed ball screws and linear rails resist debris accumulation for decades of reliable precision

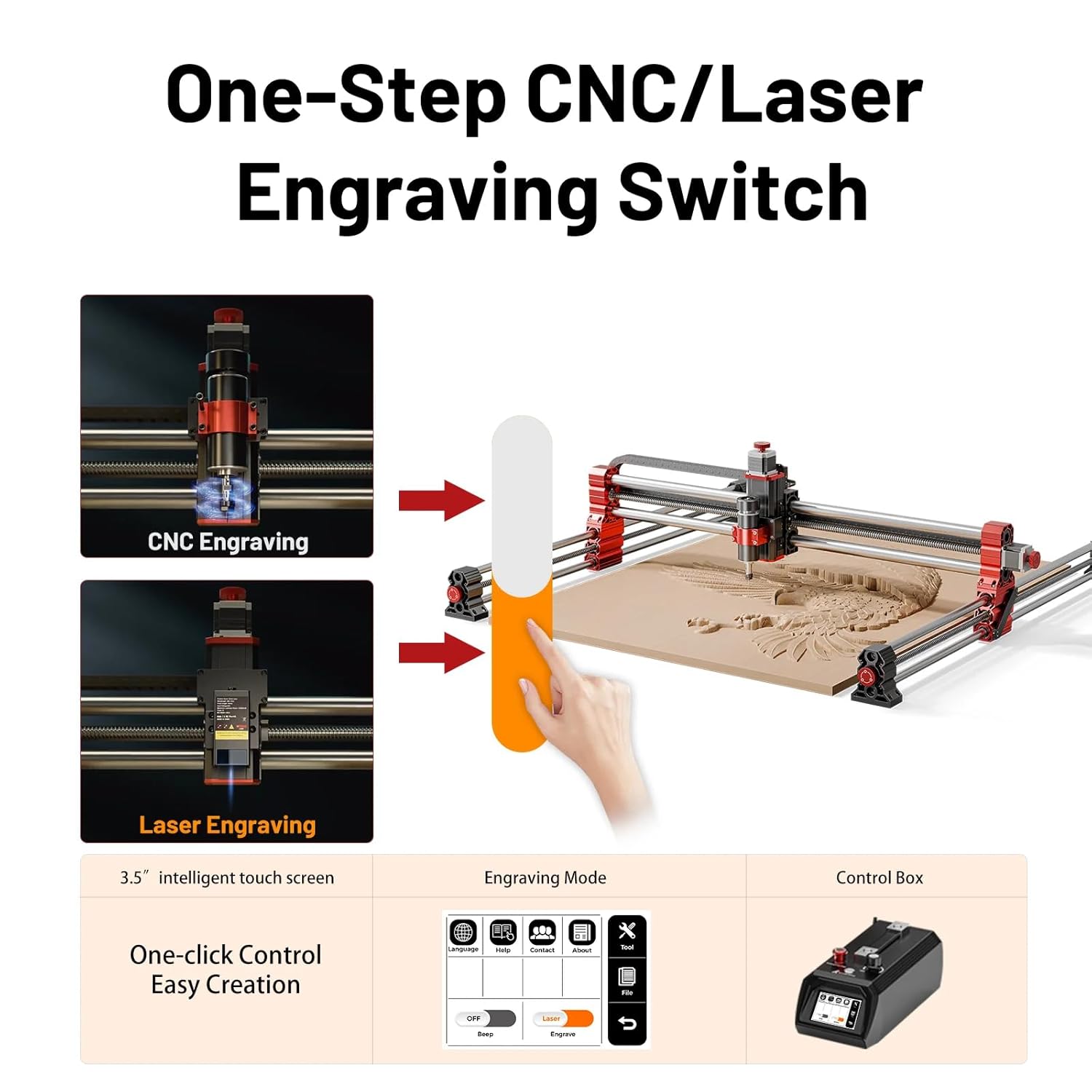

• Optional Multi-Functionality Support - Compatible with 20W laser modules, 4th rotary axis, and vacuum dust collection systems

₹132,086.00
Check Delivery & Services

Estimated delivery time      4-5 business days

Free shipping on All orders

Cash on Delivery For orders above ₹1500

- +
Add to cart
Add to wishlist Remove from wishlist Compare Ask a question Share

Guarantee Safe Checkout:

  • card
  • card
  • card
  • card
Frequently Bought Together
img-product
Esun 06A 3D Pen Red
₹3430.00 ₹4802.00
img-product
Anycubic XY-axis belt for Kobra S1
₹1199.00 ₹1798.00
img-product
Creatbot Heating Tube
₹1869.00 ₹4378.00
img-product
Creality Heating Block Kit - Standard for Ender-3 S1 / Sprite Extruder
₹1799.00 ₹3267.00
Total price:
₹$product->price_inr
Twotrees TTC6050 CNC Router Machine
Add to cart
  • Generous 600×500×100mm Carving Area – The largest desktop CNC workspace in its price class, accommodating full-size wood signs, furniture components, acrylic nameplates, and batch production runs without splitting designs or multiple passes
  • Professional Ball Screw Drive System – Every axis (X, Y, Z) uses C7-grade precision ball screws paired with hardened linear guides, delivering ±0.05mm repeatability and eliminating the accuracy degradation common in belt-driven competitors
  • NEMA 23 Stepper Motors on All Axes – High-torque motors ensure rock-solid positioning through demanding cuts in hardwood, MDF, and soft metals. Unlike smaller NEMA 17 competitors, these motors maintain power and accuracy through full 8-12 hour production runs
  • 500W Air-Cooled Spindle (Upgradable to 800W) – Standard 500W spindle handles everyday milling at 12,000 RPM. Upgrade to 800W spindle reaching 30,000 RPM for production-speed cutting, harder materials, and larger 1/4"" bit compatibility

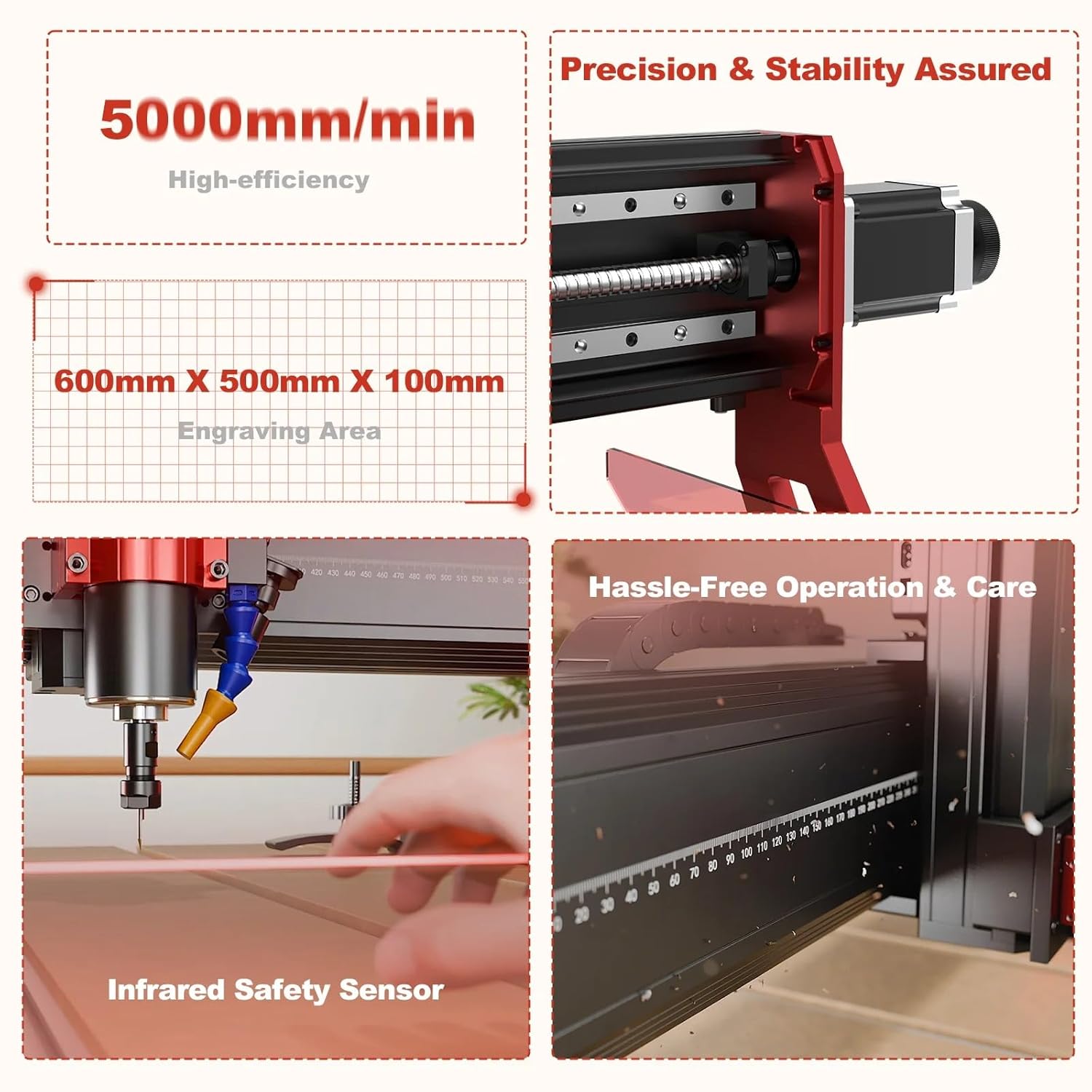

  • Advanced Infrared Safety System – Real-time monitoring across work area front with automatic spindle halt in under one second if hand/pet/tool enters danger zone. Combined with physical emergency stop button provides industrial-grade operator protection
  • Smart 3.5-Inch IPS Color Touchscreen – Intuitive control panel with 480×320 resolution displays provides motion control, speed adjustment, emergency stop, tool setting, and CNC/laser function switching. Supports 8 languages for global workshops
  • Large 600×500×100mm Carving Area (23.
  • 6""×19.
  • 7""×4"") 500W Air-Cooled Spindle (Upgradable to 800W) - Processes wood, plastic, soft metals at up to 5000mm/min Multi-Function 3.
  • 5-Inch Color Touchscreen - 8-language interface Dust-Proof Drive Design - Sealed ball screws and linear rails resist debris accumulation for decades of reliable precision Optional Multi-Functionality Support - Compatible with 20W laser modules, 4th rotary axis, and vacuum dust collection systems.
  • Working Area (L x W x H) (mm) : 600 x 500 x 100
  • Device Dimensions (inches) : 31.9 x 30.3 x 20.9
  • Axis Configuration : 3-Axis (X, Y, Z) with optional 4th Axis Rotary
  • Drive System : Precision ball screws on all three axes
  • Linear Motion : Hardened steel linear guide rails with ball bearings
  • Stepper Motors : NEMA 23 on all three axes (high-torque specification)
  • Positioning Accuracy : ±0.05mm (professional-grade repeatability)
  • Maximum Milling Speed : 5000 mm/min (across all axes)
  • Maximum Acceleration : 500 mm/s²
  • Tool Diameter Compatibility : 0.5-7mm (ER11 collet chuck)
  • Standard Spindle : 500W air-cooled motor
  • Collet Holding Force : High-rigidity design maintains position during demanding cuts
  • Repetition Accuracy : ±0.05mm across repeated print cycles
  • Display : 3.5-inch IPS resistive color touchscreen
