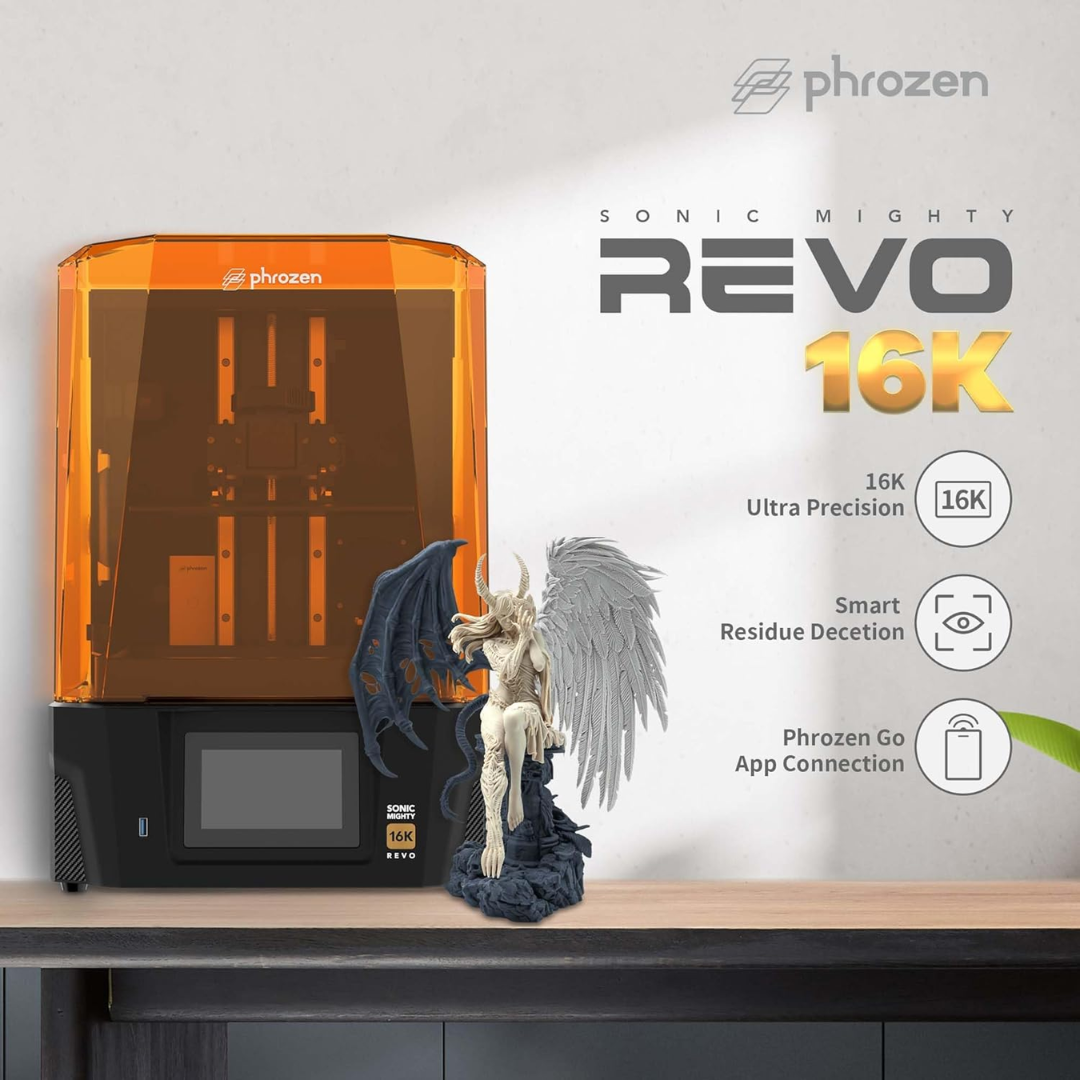

Phrozen Sonic Mighty Revo 16K LCD 3D Printer

₹132155.00

Phrozen Sonic Mighty Revo 16K LCD 3D Printer
Product Features

16K Ultra-High Resolution (14×19 ?m)

Built-in 30°C Chamber Heater

Dual Smart Failure Detection System

Assisted Auto-Leveling Technology

Aerospace-Grade 6000-Series Aluminum Frame

Phrozen GO App Multi-Printer Management

- 29%
₹94,397.00
MRP :
₹132,155.00
Out Of Stock
Check Delivery & Services

Estimated delivery time      4-5 business days

Free shipping on All orders

Cash on Delivery For orders above ₹1500

Guarantee Safe Checkout:

  • card
  • card
  • card
  • card
Phrozen Sonic Mighty Revo 16K LCD 3D Printer

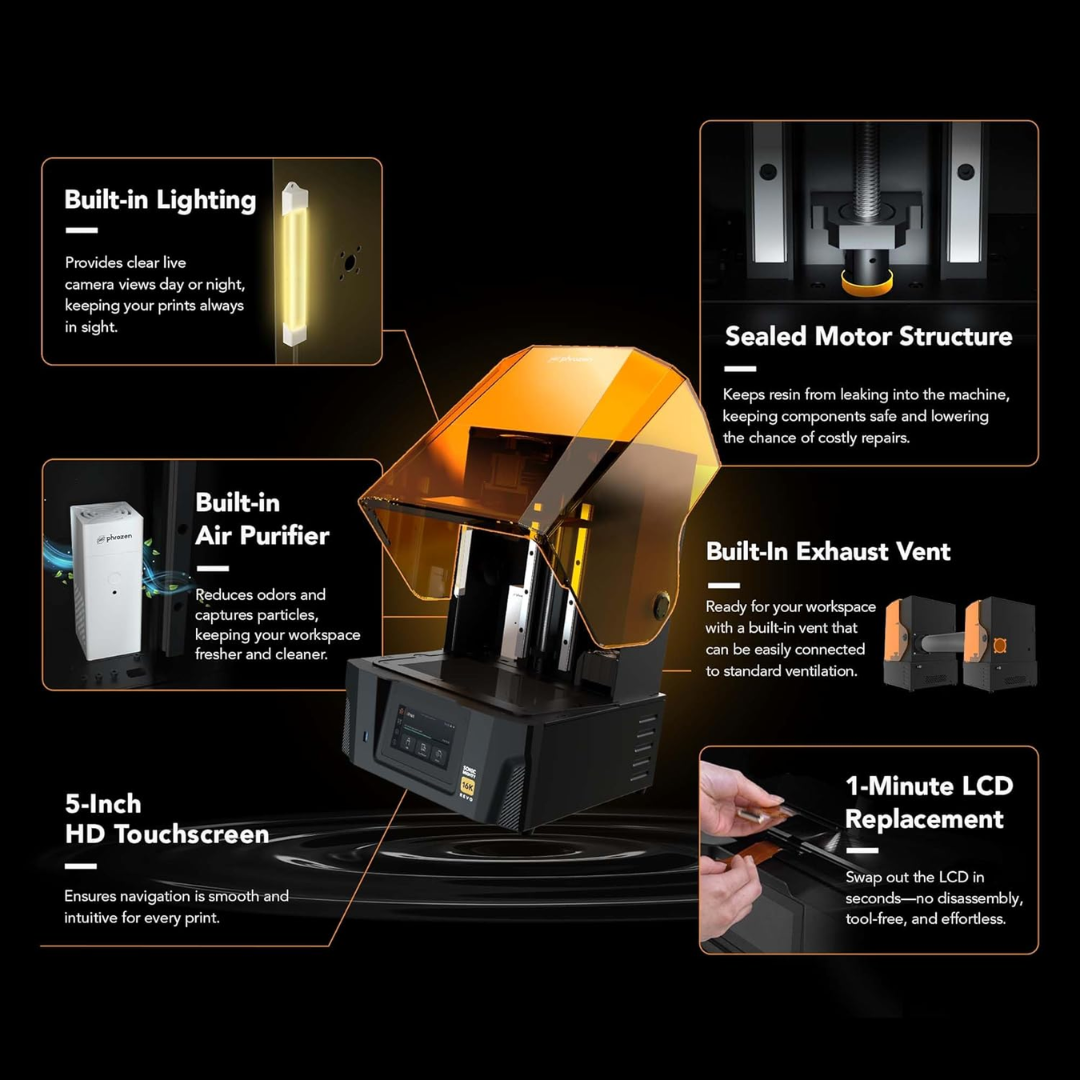

  • 16K Ultra-High Resolution (14×19 μm) – Captures micro-details invisible to lower-resolution printers, delivering paint-ready prints straight off the build plate with minimal post-processing
  • Built-in 30°C Chamber Heater – Maintains optimal resin temperature for superior layer adhesion and reduced print failures, especially critical in cold workshops and winter conditions
  • Dual Smart Failure Detection – Multipoint pressure sensors and foreign object detection (≥4mm) automatically pause printing and alert users via Phrozen GO app, eliminating wasted resin and LCD damage
  • Assisted Auto-Leveling System – Pre-calibrated mechanical leveling allows beginners to start printing within 10 minutes of unboxing, without complex manual calibration procedures

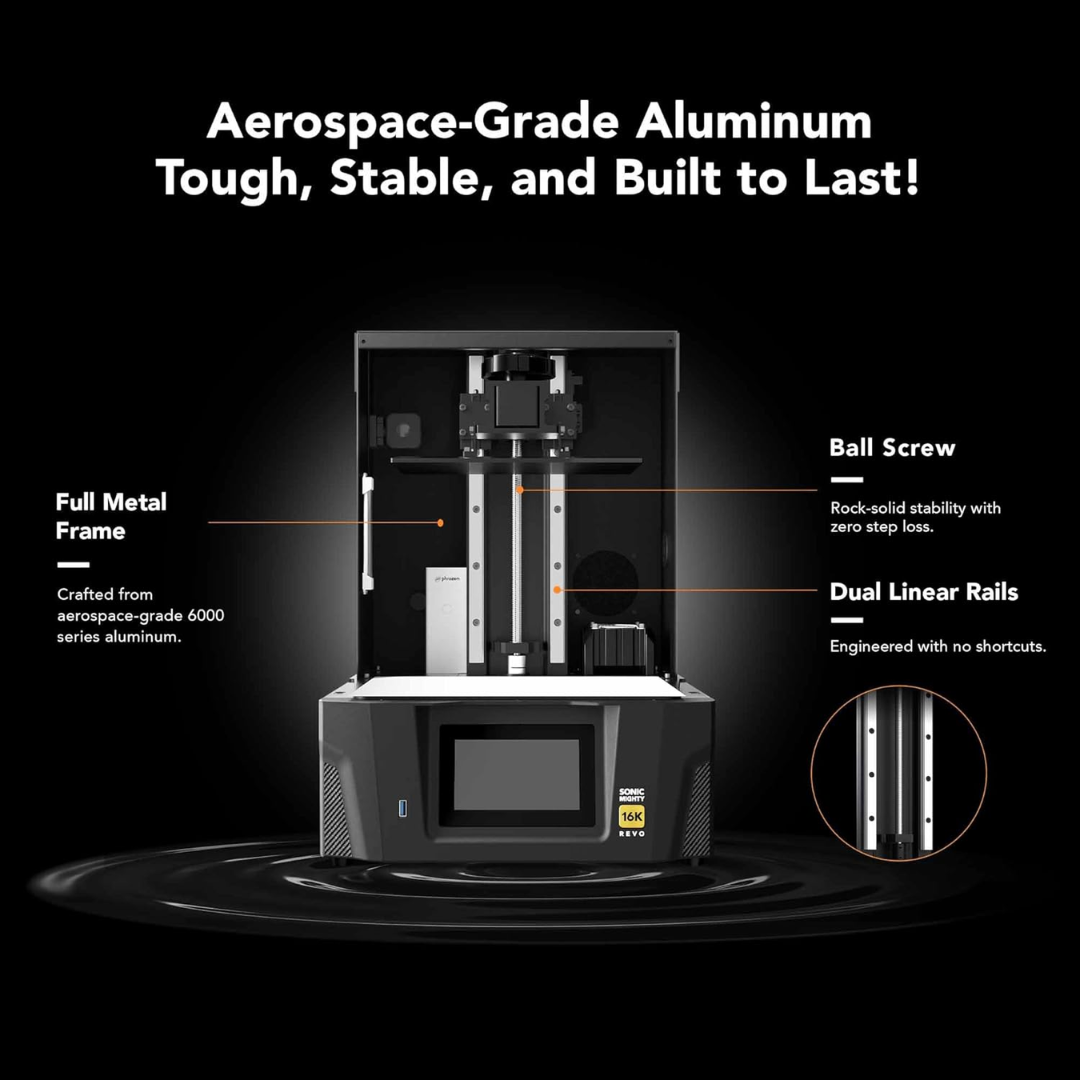

  • Aerospace-Grade Aluminum Frame with Dual Linear Rails – Professional-grade construction provides exceptional stability even during extended 12+ hour print sessions, maintaining precision layer after layer
  • Phrozen GO App with Remote Management – Monitor unlimited printers from single dashboard with real-time status, failure alerts, time-lapse recording, and remote control capabilities
  • 10.1-Inch 16K Mono LCD Screen – Perfectly balanced size and resolution for detailed miniatures with 211.68×118.37×235mm build volume, fitting 6-8 hero-scale figures or 20-30 tabletop miniatures per batch
  • Activated Carbon Air Filtration – Integrated odor reduction system and leak-proof design make it suitable for home studios and office environments
  • 16K Ultra-High Resolution (14×19 ?m) Built-in 30°C Chamber Heater Dual Smart Failure Detection System Assisted Auto-Leveling Technology Aerospace-Grade 6000-Series Aluminum Frame Phrozen GO App Multi-Printer Management.
  • Build Volume (L x W x H) (mm) : 211.68 x 118.37 x 235
  • LCD Screen : 10.1"" 16K Mono LCD
  • XY Resolution (μm) : 14 x 19 (16K precision)
  • Layer Thickness (mm) : 0.01-0.2 (recommended 0.025-0.05)
  • Light Source : 405nm COB LED with Fresnel Lens
  • Light Intensity & Uniformity : 3900-5900 mW/cm² with ≥75% uniformity
  • Maximum Print Speed : 676 layers/hour
  • Z-Axis System : Dual linear rails with ball screw drive
  • Z-Axis Accuracy : ±0.05mm precision
  • Frame Material : Aerospace-grade 6000-series aluminum
  • Machine Size (mm) : 353 x 345 x 517
  • Machine Weight (kg) : 18
  • Chamber Heater : Yes - 30°C constant temperature
  • Printing Speed : Avg. 450 layers/hr
  • Display : 5-inch HD touchscreen
  • Connectivity : USB, Wi-Fi, Ethernet
  • Failure Detection : Dual smart sensors with multipoint pressure detection
  • Power Requirement : 100-240V AC, 50-60Hz
  • System Power : Max 360W
  • Warranty : 1 year
