Sensinova Nano 16 Motion Sensor

₹2449.00

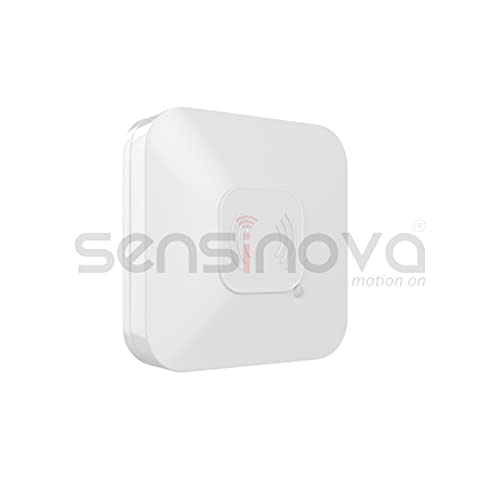

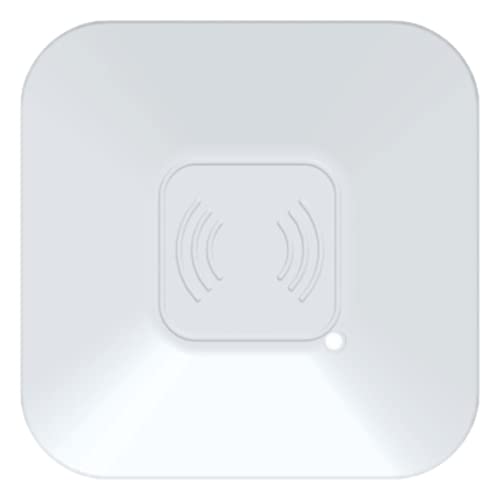

Sensinova Nano 16 Motion Sensor
Product Features

The NANO 16 Motion Sensor is an active motion detector, emitting high frequency electro-magnetic waves, and receives their echo. A microprocessor then triggers the switch light ON command. Detection is possible through doors, panes of glass or thin walls in most applicants. This ia an ultra-reliable sensor, especially as there are no gaps in the detection zone.

₹2,449.00
Out Of Stock
Check Delivery & Services

Estimated delivery time      4-5 business days

Free shipping on All orders

Cash on Delivery For orders above ₹1500

Guarantee Safe Checkout:

  • card
  • card
  • card
  • card
Sensinova Nano 16 Motion Sensor
  • Always isolate mains power prior to installation.
  • Remove cover by turning anti-clockwise and remove the 2 screws.
  • Use the base to mark the drill holes on the mounting surface.
  • Drill holes and insert wall plugs if required.
  • Feed power cable and load cable through base holes and securely affix base.
  • Connect the power wire and the load wire to the connection terminal according to the electrical connection.
  • Replace & secure base cover, caliborate and replace front cover.
  • The NANO 16 Motion Sensor is an active motion detector, emitting high frequency electro-magnetic waves, and receives their echo.
  • A microprocessor then triggers the switch light ON command.
  • Detection is possible through doors, panes of glass or thin walls in most applicants.
  • This ia an ultra-reliable sensor, especially as there are no gaps in the detection zone.

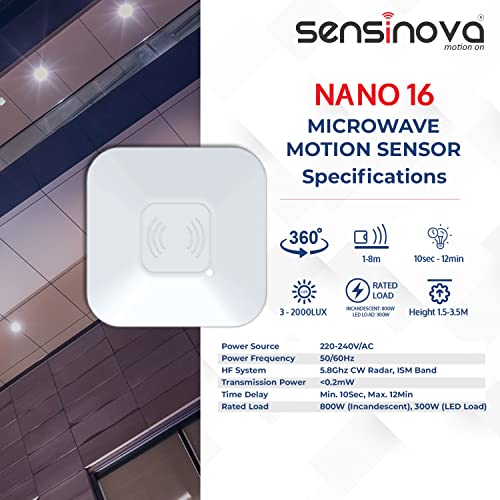

  • Power Source : 220V - 240V AC
  • Power Frequency : 50/60HZ
  • HF System : <0.2mW
  • Time Delay : Min 10 seconds / Max 12 Minutes
  • Rated Load : 800W (Incandescent) / 300W (LED Load)
  • Detection Distance : 2-16m diameter (Adjustable)
  • Detection Range : 360
  • Manual Override : No
  • Weatherproof Rating : IP20
  • Warranty : 3 Years
  • No. of Wires : 4 Wire.
